With a freely adjustable rotor speed of 2000 to 4000 min-1, the cross beater mill PULVERISETTE 16 is the ideal universal mill for fast and gentle pre-crushing and fine comminution of medium-hard, brittle materials up to a Mohs hardness of 6 in laboratories and industry. Comminution in the cross beater mill takes place through impact, friction and shearing forces. The feeding funnel guides the grinding material directly into the centre of the grinding chamber, where it is taken up by the cross beater and comminuted between the impact plates of the cross beater and the teeth of the grinding insert. The rotating cross beater creates an airflow through the funnel that accelerates the discharging of the ground sample into the collecting vessel. - Fast work with high throughput. - Easy to change bottom sieves with perforation sizes of 0.12 to 10 mm. - Easy cleaning due to grinding tools that are simple to remove. - Speed adjustment for different applications. - Incl. 5 l collecting vessel with textile filter hose for batchwise operation. - 30 l collecting vessel with filter hose is optionally available. - The bottom sieve must be ordered separately acc. to your application. - The grinding insert is available in either cast iron or st. steel. - Easily replaceable impact plates made of hardened or st. steel. - 1.1 kW brake motor, adjustable speed of 2000 to 4000 min-1 (in 200 min-1 steps). - Opened grinding chamber with removable bottom sieve. - In event of unintended opening of the screw connection, a safety switch activates the motor brake, bringing the rotor to a stop in less than 0.5 s. - Practical grinding chamber quick-clamping lock. - Useable as a table-mounted or free-standing instrument with support stand (ordered separately). - Overload protection. Applications: - Agriculture and forestry: grain, peat, seeds, dried plants, feed, pellets. - Geology and mineralogy: salts, gypsum, potash, minerals, stones and soil, bauxite, limestone, dry clay, pyrite, cement clinker, refractory materials. - Mining and metallurgy: coal, coke, ores, slate, slag. - Ceramics: oxide ceramics. - Plastics and textiles: resins, cellulose, synthetic resins. With a freely adjustable rotor speed of 2000 to 4000 min-1, the cross beater mill PULVERISETTE 16 is the ideal universal mill for fast and gentle pre-crushing and fine comminution of medium-hard, brittle materials up to a Mohs hardness of 6 in laboratories and industry. Comminution in the cross beater mill takes place through impact, friction and shearing forces. The feeding funnel guides the grinding material directly into the centre of the grinding chamber, where it is taken up by the cross beater and comminuted between the impact plates of the cross beater and the teeth of the grinding insert. The rotating cross beater creates an airflow through the funnel that accelerates the discharging of the ground sample into the collecting vessel. - Fast work with high throughput. - Easy to change bottom sieves with perforation sizes of 0.12 to 10 mm. - Easy cleaning due to grinding tools that are simple to remove. - Speed adjustment for different applications. - Incl. 5 l collecting vessel with textile filter hose for batchwise operation. - 30 l collecting vessel with filter hose is optionally available. - The bottom sieve must be ordered separately acc. to your application. - The grinding insert is available in either cast iron or st. steel. - Easily replaceable impact plates made of hardened or st. steel. - 1.1 kW brake motor, adjustable speed of 2000 to 4000 min-1 (in 200 min-1 steps). - Opened grinding chamber with removable bottom sieve. - In event of unintended opening of the screw connection, a safety switch activates the motor brake, bringing the rotor to a stop in less than 0.5 s. - Practical grinding chamber quick-clamping lock. - Useable as a table-mounted or free-standing instrument with support stand (ordered separately). - Overload protection. Applications: - Agriculture and forestry: grain, peat, seeds, dried plants, feed, pellets. - Geology and mineralogy: salts, gypsum, potash, minerals, stones and soil, bauxite, limestone, dry clay, pyrite, cement clinker, refractory materials. - Mining and metallurgy: coal, coke, ores, slate, slag. - Ceramics: oxide ceramics. - Plastics and textiles: resins, cellulose, synthetic resins.
Product Detail

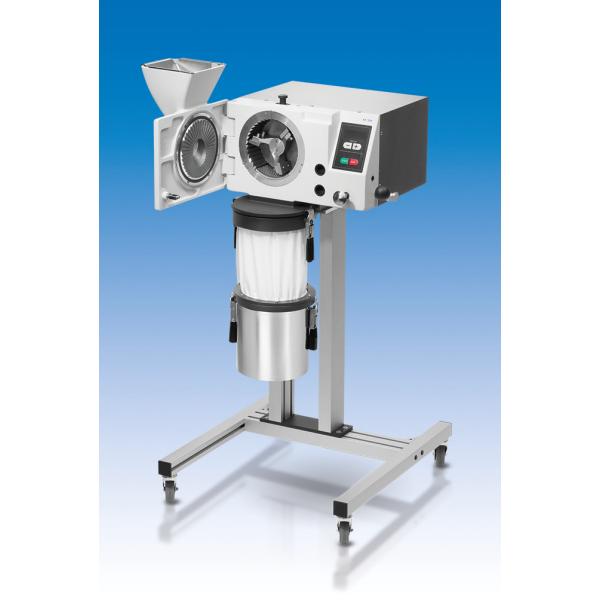

The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity. The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity.
Product Detail
The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity. The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity.
Product Detail
The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity. The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity.
Product Detail
The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity. The cross beater mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. This robust mill can be operated in laboratories but also in production environments under rougher conditions. Thanks to the powerful drive of the mill and a rotor speed of up to 4000 min-1 it is often possible to achieve a grind size < 100 µm in one working step. Size reduction in the SK 300 occurs by impact and shear effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve, it passes through the sieve and enters the collecting receptacle. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is set apart by a downstream filter system. - High throughput capacity for batchwise comminution of large quantities. - Quick cleaning thanks to push-fit rotor and removable grinding insert. - Ring-type filter and collecting vessel with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock and motor brake. - Optional cyclone for improved material discharge and additional cooling. Items supplied: Cross beater mill with grinding insert, cross beater, baffle plates, 240 mm filter hose and 5 l collector capacity.
Product Detail
With a freely adjustable rotor speed of 2000 to 4000 min-1, the cross beater mill PULVERISETTE 16 is the ideal universal mill for fast and gentle pre-crushing and fine comminution of medium-hard, brittle materials up to a Mohs hardness of 6 in laboratories and industry. Comminution in the cross beater mill takes place through impact, friction and shearing forces. The feeding funnel guides the grinding material directly into the centre of the grinding chamber, where it is taken up by the cross beater and comminuted between the impact plates of the cross beater and the teeth of the grinding insert. The rotating cross beater creates an airflow through the funnel that accelerates the discharging of the ground sample into the collecting vessel. - Fast work with high throughput. - Easy to change bottom sieves with perforation sizes of 0.12 to 10 mm. - Easy cleaning due to grinding tools that are simple to remove. - Speed adjustment for different applications. - Incl. 5 l collecting vessel with textile filter hose for batchwise operation. - 30 l collecting vessel with filter hose is optionally available. - The bottom sieve must be ordered separately acc. to your application. - The grinding insert is available in either cast iron or st. steel. - Easily replaceable impact plates made of hardened or st. steel. - 1.1 kW brake motor, adjustable speed of 2000 to 4000 min-1 (in 200 min-1 steps). - Opened grinding chamber with removable bottom sieve. - In event of unintended opening of the screw connection, a safety switch activates the motor brake, bringing the rotor to a stop in less than 0.5 s. - Practical grinding chamber quick-clamping lock. - Useable as a table-mounted or free-standing instrument with support stand (ordered separately). - Overload protection. Applications: - Agriculture and forestry: grain, peat, seeds, dried plants, feed, pellets. - Geology and mineralogy: salts, gypsum, potash, minerals, stones and soil, bauxite, limestone, dry clay, pyrite, cement clinker, refractory materials. - Mining and metallurgy: coal, coke, ores, slate, slag. - Ceramics: oxide ceramics. - Plastics and textiles: resins, cellulose, synthetic resins. With a freely adjustable rotor speed of 2000 to 4000 min-1, the cross beater mill PULVERISETTE 16 is the ideal universal mill for fast and gentle pre-crushing and fine comminution of medium-hard, brittle materials up to a Mohs hardness of 6 in laboratories and industry. Comminution in the cross beater mill takes place through impact, friction and shearing forces. The feeding funnel guides the grinding material directly into the centre of the grinding chamber, where it is taken up by the cross beater and comminuted between the impact plates of the cross beater and the teeth of the grinding insert. The rotating cross beater creates an airflow through the funnel that accelerates the discharging of the ground sample into the collecting vessel. - Fast work with high throughput. - Easy to change bottom sieves with perforation sizes of 0.12 to 10 mm. - Easy cleaning due to grinding tools that are simple to remove. - Speed adjustment for different applications. - Incl. 5 l collecting vessel with textile filter hose for batchwise operation. - 30 l collecting vessel with filter hose is optionally available. - The bottom sieve must be ordered separately acc. to your application. - The grinding insert is available in either cast iron or st. steel. - Easily replaceable impact plates made of hardened or st. steel. - 1.1 kW brake motor, adjustable speed of 2000 to 4000 min-1 (in 200 min-1 steps). - Opened grinding chamber with removable bottom sieve. - In event of unintended opening of the screw connection, a safety switch activates the motor brake, bringing the rotor to a stop in less than 0.5 s. - Practical grinding chamber quick-clamping lock. - Useable as a table-mounted or free-standing instrument with support stand (ordered separately). - Overload protection. Applications: - Agriculture and forestry: grain, peat, seeds, dried plants, feed, pellets. - Geology and mineralogy: salts, gypsum, potash, minerals, stones and soil, bauxite, limestone, dry clay, pyrite, cement clinker, refractory materials. - Mining and metallurgy: coal, coke, ores, slate, slag. - Ceramics: oxide ceramics. - Plastics and textiles: resins, cellulose, synthetic resins.
Product Detail
Thanks to the robust design and the possibility to process large sample volumes the rotor beater mill SR 300 can be used for sample preparation in the lab as well as for small scale production. Grinding chamber, feed hopper as well as material inlet and outlet are completely made of high-quality st. steel. The adjustable speed up to 10000 min-1 allows the adaptation to different application requirements. Size reduction and deagglomeration in the rotor beater mill occur by impact and shear effects. The feed material passes from the hopper into the center of the grinding chamber, where it is crushed between the rotor, sieve and grinding inserts. As soon as the material is smaller than the aperture size of the sieve, it goes into the collecting receptacle. - High throughput capacity for batchwise comminution of large quantities. - Optional grinding inserts 180° for grinding of hard-brittle materials by additional impact. - Defined final fineness due to bottom sieves with aperture sizes from 0.08 up to 10 mm. - Easy cleaning thanks to removable cassette, push-fit rotor and hopper. - Distance rotor for grinding temperature-sensitive samples. - Ring filter and collecting receptacle with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock with safety fastener. - Optional cyclone for a better material discharge and additional cooling. Items supplied: Rotor beater mill with rotor, filter hose and 5 l collector capacity. Thanks to the robust design and the possibility to process large sample volumes the rotor beater mill SR 300 can be used for sample preparation in the lab as well as for small scale production. Grinding chamber, feed hopper as well as material inlet and outlet are completely made of high-quality st. steel. The adjustable speed up to 10000 min-1 allows the adaptation to different application requirements. Size reduction and deagglomeration in the rotor beater mill occur by impact and shear effects. The feed material passes from the hopper into the center of the grinding chamber, where it is crushed between the rotor, sieve and grinding inserts. As soon as the material is smaller than the aperture size of the sieve, it goes into the collecting receptacle. - High throughput capacity for batchwise comminution of large quantities. - Optional grinding inserts 180° for grinding of hard-brittle materials by additional impact. - Defined final fineness due to bottom sieves with aperture sizes from 0.08 up to 10 mm. - Easy cleaning thanks to removable cassette, push-fit rotor and hopper. - Distance rotor for grinding temperature-sensitive samples. - Ring filter and collecting receptacle with convenient, dust-tight bayonet locking mechanism. - Quick-action door lock with safety fastener. - Optional cyclone for a better material discharge and additional cooling. Items supplied: Rotor beater mill with rotor, filter hose and 5 l collector capacity.
