Heating Tapes / -Mats

13000050, Omnilab

No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC. No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC.

14000030, Omnilab

With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC. With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC.

14000020, Omnilab

With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC. With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC.

13000070, Omnilab

No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC. No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC.

12000050, Omnilab

No protection against ingress of water, with protective overbraiding of copper-nickel, preterminated with 1.0 m cold end. No protection against ingress of water, with protective overbraiding of copper-nickel, preterminated with 1.0 m cold end.

12040040, Omnilab

No protection against ingress of water, with heat-resistant quarz yarn insulation and without protective braiding. High power and temperature, so it must only be used in dry atmospheres with a temperature regulator. Fertig-konfektioniert mit 2 x 1,5 m Anschlussleitung. No protection against ingress of water, with heat-resistant quarz yarn insulation and without protective braiding. High power and temperature, so it must only be used in dry atmospheres with a temperature regulator. Fertig-konfektioniert mit 2 x 1,5 m Anschlussleitung.

13000100, Omnilab

No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC. No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC.

13000010, Omnilab

No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC. No protection against ingress of water; with inner metal protective braiding and glass fibre insulation. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 450 °C. - Nominal voltage 230 V AC.

9010032, Omnilab

14000050, Omnilab

With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC. With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC.

9010034, Omnilab

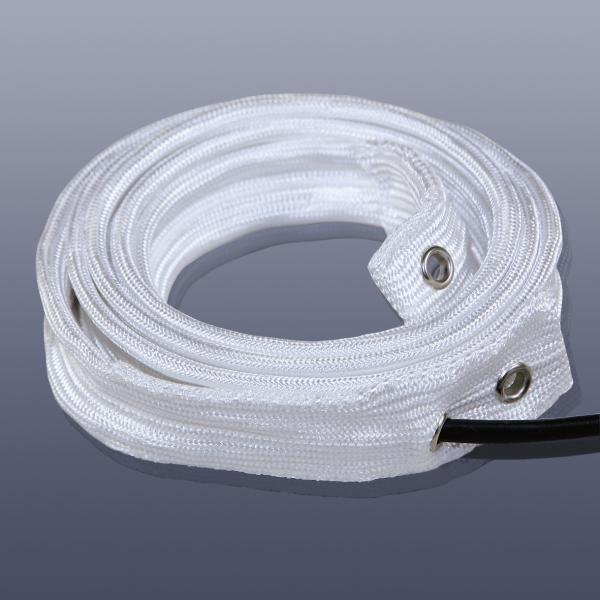

14000015, Omnilab

With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC. With heat-resistant quartz yarn insulation and without protective braiding. High power and temperature, must only be used in dry atmospheres with temperature control. Preterminated with 1.0 m cold end. - Dimensions: 30 x 5 mm. - Min. bending radius 15 mm. - Max. heating element temperature 900 °C. - Nominal voltage 230 V AC.
