Schlauchpumpen, diverse

9010645, Omnilab

9501132, Omnilab

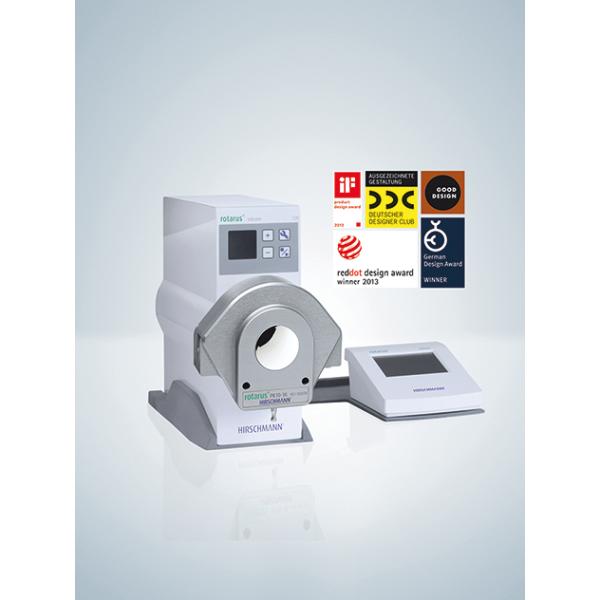

The rotarus® pump family with a selection of different motors, varying housing safety classes and intelligent control of delivery volumes, covering a broad spectrum of application areas in the lab or industry. 50 and 100 W motors ensure precise delivery in speed ranges from 0.2 to 500 min-1. This means that media with a high viscosity can also be accurately dispensed. Configuration data for basic parameters can also be stored in this manner an retrieved at any time. The flow and volume models have automatic blockage detection an tube rupture monitoring. - Changeable pump heads, singe and multichannel design. - Rapid tool-free changing of pump heads. - Calibratable. - Operation with 24 V DC, outdoor use is also possible with appropriate accessoires. - USB- and RS232 interface for PC connection. rotarus® standard: Powerful basic model with control panel on the housing. Speed can be programmed directly on the unit. rotarus® flow: Comfortable delivery pump with control options for velocity and flow speed. Particularly suitable for delivery tasks which require a particular delivery speed calibrated in flow rate. Control panel on the housing for basic functions (speed); external control module with TFT touchscreen for further functions (flow rate). Automatic pump head and tube detection with RFID-technology. Integrated blockage detection and rupture monitoring. rotarus® volume: Extremely comfortable and accurate dispensing pump - the top model. Selection options for speed, flow rate, dispensing duration, total volume and a range of other intelligent functions. Different pump methods with variable cycles and graduated speeds can also be controlled. Control panel / -module, RFID-technology, blockage detection and rupture monitoring like rotarus® flow. The rotarus® pump family with a selection of different motors, varying housing safety classes and intelligent control of delivery volumes, covering a broad spectrum of application areas in the lab or industry. 50 and 100 W motors ensure precise delivery in speed ranges from 0.2 to 500 min-1. This means that media with a high viscosity can also be accurately dispensed. Configuration data for basic parameters can also be stored in this manner an retrieved at any time. The flow and volume models have automatic blockage detection an tube rupture monitoring. - Changeable pump heads, singe and multichannel design. - Rapid tool-free changing of pump heads. - Calibratable. - Operation with 24 V DC, outdoor use is also possible with appropriate accessoires. - USB- and RS232 interface for PC connection. rotarus® standard: Powerful basic model with control panel on the housing. Speed can be programmed directly on the unit. rotarus® flow: Comfortable delivery pump with control options for velocity and flow speed. Particularly suitable for delivery tasks which require a particular delivery speed calibrated in flow rate. Control panel on the housing for basic functions (speed); external control module with TFT touchscreen for further functions (flow rate). Automatic pump head and tube detection with RFID-technology. Integrated blockage detection and rupture monitoring. rotarus® volume: Extremely comfortable and accurate dispensing pump - the top model. Selection options for speed, flow rate, dispensing duration, total volume and a range of other intelligent functions. Different pump methods with variable cycles and graduated speeds can also be controlled. Control panel / -module, RFID-technology, blockage detection and rupture monitoring like rotarus® flow.

523-51013-00, Omnilab

For reproducible results, liquid transfer. - Speed adjustable on analog control knob from 5.0 to 600 min-1, speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety or ease of use in multiple sample fills. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V or 4 to 20 mA. Hei-FLOW Advantage 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Advantage 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Advantage 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Gold package: Incl. pump drive Hei-FLOW Advantage 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm). For reproducible results, liquid transfer. - Speed adjustable on analog control knob from 5.0 to 600 min-1, speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety or ease of use in multiple sample fills. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V or 4 to 20 mA. Hei-FLOW Advantage 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Advantage 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Advantage 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Gold package: Incl. pump drive Hei-FLOW Advantage 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm).

78018-10, Omnilab

Versatile multichannel pumps for accurate low-flow fluid delivery - with an intuitive touch-screen interface: - Compact, benchtop pumps optimize ease of use, accuracy, and reliability. - 5'' (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle. - Flexible operational control via screen, MasterflexLive® * or analog remote control. - Continuous run, volume dispense, and time dispense modes - batch control and interval/off time in Volume and Time modes. - Pump lets you save and retrieve commonly used dispense programs for rapid set up. - Anti-drip and speed ramping available in Volume dispense mode - ensure accuracy and minimize sample loss. - Cassette pump models accept 3-stop tubing for easy loading and secure retention. * MasterflexLive® is a secure, cloud-enabled platform for control and monitoring of Masterflex pumps; get real-time control of all pump parameters - including speed, flow rate, dispense volume, and more. You can monitor and adjust critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages. Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump. Tubing cassettes (included) accept 3-stop tubing and are easily snapped in/out for quick tubing changes. Accepted tubing ranges from 0.13 to 3.17 mm ID for a wide flow range. Order the three-stop tubing size and formulation to suit your application needs (sold separately). Versatile multichannel pumps for accurate low-flow fluid delivery - with an intuitive touch-screen interface: - Compact, benchtop pumps optimize ease of use, accuracy, and reliability. - 5'' (12.7 cm) capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle. - Flexible operational control via screen, MasterflexLive® * or analog remote control. - Continuous run, volume dispense, and time dispense modes - batch control and interval/off time in Volume and Time modes. - Pump lets you save and retrieve commonly used dispense programs for rapid set up. - Anti-drip and speed ramping available in Volume dispense mode - ensure accuracy and minimize sample loss. - Cassette pump models accept 3-stop tubing for easy loading and secure retention. * MasterflexLive® is a secure, cloud-enabled platform for control and monitoring of Masterflex pumps; get real-time control of all pump parameters - including speed, flow rate, dispense volume, and more. You can monitor and adjust critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages. Internet connection via Wi-Fi or standard Ethernet (RJ45) jack on rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump. Tubing cassettes (included) accept 3-stop tubing and are easily snapped in/out for quick tubing changes. Accepted tubing ranges from 0.13 to 3.17 mm ID for a wide flow range. Order the three-stop tubing size and formulation to suit your application needs (sold separately).

523-52010-00, Omnilab

Reproducibility, pumping and dosing. - Flow characteristic of pump heads in combination with various tubing Ø is pre-programmed for accurate flow rate numbers. - Digital read-out of speed, tubing diameter, flow rate in ml / min, dosing volume, interval dosing and pause in s. - Change of all process parameters via buttons. - Speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Individual calibration of flow volume and flow rate. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V, 4 to 20 mA or via RS232 interface. Hei-FLOW Precision 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Precision 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Precision 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Platinum package: Incl. pump drive Hei-FLOW Precision 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm). Reproducibility, pumping and dosing. - Flow characteristic of pump heads in combination with various tubing Ø is pre-programmed for accurate flow rate numbers. - Digital read-out of speed, tubing diameter, flow rate in ml / min, dosing volume, interval dosing and pause in s. - Change of all process parameters via buttons. - Speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Individual calibration of flow volume and flow rate. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V, 4 to 20 mA or via RS232 interface. Hei-FLOW Precision 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Precision 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Precision 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Platinum package: Incl. pump drive Hei-FLOW Precision 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm).

523-51010-00, Omnilab

For reproducible results, liquid transfer. - Speed adjustable on analog control knob from 5.0 to 600 min-1, speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety or ease of use in multiple sample fills. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V or 4 to 20 mA. Hei-FLOW Advantage 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Advantage 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Advantage 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Gold package: Incl. pump drive Hei-FLOW Advantage 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm). For reproducible results, liquid transfer. - Speed adjustable on analog control knob from 5.0 to 600 min-1, speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety or ease of use in multiple sample fills. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V or 4 to 20 mA. Hei-FLOW Advantage 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Advantage 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Advantage 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Gold package: Incl. pump drive Hei-FLOW Advantage 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm).

9501562, Omnilab

9039015, Omnilab

9501324, Omnilab

The rotarus® pump family with a selection of different motors, varying housing safety classes and intelligent control of delivery volumes, covering a broad spectrum of application areas in the lab or industry. 50 and 100 W motors ensure precise delivery in speed ranges from 0.2 to 500 min-1. This means that media with a high viscosity can also be accurately dispensed. Configuration data for basic parameters can also be stored in this manner an retrieved at any time. The flow and volume models have automatic blockage detection an tube rupture monitoring. - Changeable pump heads, singe and multichannel design. - Rapid tool-free changing of pump heads. - Calibratable. - Operation with 24 V DC, outdoor use is also possible with appropriate accessoires. - USB- and RS232 interface for PC connection. rotarus® standard: Powerful basic model with control panel on the housing. Speed can be programmed directly on the unit. rotarus® flow: Comfortable delivery pump with control options for velocity and flow speed. Particularly suitable for delivery tasks which require a particular delivery speed calibrated in flow rate. Control panel on the housing for basic functions (speed); external control module with TFT touchscreen for further functions (flow rate). Automatic pump head and tube detection with RFID-technology. Integrated blockage detection and rupture monitoring. rotarus® volume: Extremely comfortable and accurate dispensing pump - the top model. Selection options for speed, flow rate, dispensing duration, total volume and a range of other intelligent functions. Different pump methods with variable cycles and graduated speeds can also be controlled. Control panel / -module, RFID-technology, blockage detection and rupture monitoring like rotarus® flow. The rotarus® pump family with a selection of different motors, varying housing safety classes and intelligent control of delivery volumes, covering a broad spectrum of application areas in the lab or industry. 50 and 100 W motors ensure precise delivery in speed ranges from 0.2 to 500 min-1. This means that media with a high viscosity can also be accurately dispensed. Configuration data for basic parameters can also be stored in this manner an retrieved at any time. The flow and volume models have automatic blockage detection an tube rupture monitoring. - Changeable pump heads, singe and multichannel design. - Rapid tool-free changing of pump heads. - Calibratable. - Operation with 24 V DC, outdoor use is also possible with appropriate accessoires. - USB- and RS232 interface for PC connection. rotarus® standard: Powerful basic model with control panel on the housing. Speed can be programmed directly on the unit. rotarus® flow: Comfortable delivery pump with control options for velocity and flow speed. Particularly suitable for delivery tasks which require a particular delivery speed calibrated in flow rate. Control panel on the housing for basic functions (speed); external control module with TFT touchscreen for further functions (flow rate). Automatic pump head and tube detection with RFID-technology. Integrated blockage detection and rupture monitoring. rotarus® volume: Extremely comfortable and accurate dispensing pump - the top model. Selection options for speed, flow rate, dispensing duration, total volume and a range of other intelligent functions. Different pump methods with variable cycles and graduated speeds can also be controlled. Control panel / -module, RFID-technology, blockage detection and rupture monitoring like rotarus® flow.

9501362, Omnilab

9501342, Omnilab

The rotarus® pump family with a selection of different motors, varying housing safety classes and intelligent control of delivery volumes, covering a broad spectrum of application areas in the lab or industry. 50 and 100 W motors ensure precise delivery in speed ranges from 0.2 to 500 min-1. This means that media with a high viscosity can also be accurately dispensed. Configuration data for basic parameters can also be stored in this manner an retrieved at any time. The flow and volume models have automatic blockage detection an tube rupture monitoring. - Changeable pump heads, singe and multichannel design. - Rapid tool-free changing of pump heads. - Calibratable. - Operation with 24 V DC, outdoor use is also possible with appropriate accessoires. - USB- and RS232 interface for PC connection. rotarus® standard: Powerful basic model with control panel on the housing. Speed can be programmed directly on the unit. rotarus® flow: Comfortable delivery pump with control options for velocity and flow speed. Particularly suitable for delivery tasks which require a particular delivery speed calibrated in flow rate. Control panel on the housing for basic functions (speed); external control module with TFT touchscreen for further functions (flow rate). Automatic pump head and tube detection with RFID-technology. Integrated blockage detection and rupture monitoring. rotarus® volume: Extremely comfortable and accurate dispensing pump - the top model. Selection options for speed, flow rate, dispensing duration, total volume and a range of other intelligent functions. Different pump methods with variable cycles and graduated speeds can also be controlled. Control panel / -module, RFID-technology, blockage detection and rupture monitoring like rotarus® flow. The rotarus® pump family with a selection of different motors, varying housing safety classes and intelligent control of delivery volumes, covering a broad spectrum of application areas in the lab or industry. 50 and 100 W motors ensure precise delivery in speed ranges from 0.2 to 500 min-1. This means that media with a high viscosity can also be accurately dispensed. Configuration data for basic parameters can also be stored in this manner an retrieved at any time. The flow and volume models have automatic blockage detection an tube rupture monitoring. - Changeable pump heads, singe and multichannel design. - Rapid tool-free changing of pump heads. - Calibratable. - Operation with 24 V DC, outdoor use is also possible with appropriate accessoires. - USB- and RS232 interface for PC connection. rotarus® standard: Powerful basic model with control panel on the housing. Speed can be programmed directly on the unit. rotarus® flow: Comfortable delivery pump with control options for velocity and flow speed. Particularly suitable for delivery tasks which require a particular delivery speed calibrated in flow rate. Control panel on the housing for basic functions (speed); external control module with TFT touchscreen for further functions (flow rate). Automatic pump head and tube detection with RFID-technology. Integrated blockage detection and rupture monitoring. rotarus® volume: Extremely comfortable and accurate dispensing pump - the top model. Selection options for speed, flow rate, dispensing duration, total volume and a range of other intelligent functions. Different pump methods with variable cycles and graduated speeds can also be controlled. Control panel / -module, RFID-technology, blockage detection and rupture monitoring like rotarus® flow.

523-52013-00, Omnilab

Reproducibility, pumping and dosing. - Flow characteristic of pump heads in combination with various tubing Ø is pre-programmed for accurate flow rate numbers. - Digital read-out of speed, tubing diameter, flow rate in ml / min, dosing volume, interval dosing and pause in s. - Change of all process parameters via buttons. - Speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Individual calibration of flow volume and flow rate. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V, 4 to 20 mA or via RS232 interface. Hei-FLOW Precision 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Precision 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Precision 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Platinum package: Incl. pump drive Hei-FLOW Precision 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm). Reproducibility, pumping and dosing. - Flow characteristic of pump heads in combination with various tubing Ø is pre-programmed for accurate flow rate numbers. - Digital read-out of speed, tubing diameter, flow rate in ml / min, dosing volume, interval dosing and pause in s. - Change of all process parameters via buttons. - Speed is held constant even under changing loads. - Accuracy rate of ± 0.5 %. - Individual calibration of flow volume and flow rate. - Can be connected to an optional foot pedal remote control via cable to start and stop the pump drive outside a closed fume hood increasing personal safety. - At the press of a button the pump operates clockwise or counter-clockwise. - A press of the max. button accelerates the filling and draining of tubing. - Control of speed in a clockwise or counterclockwise direction and On / Off via analog interface for 0 to 10 V, 4 to 20 mA or via RS232 interface. Hei-FLOW Precision 01: - Flow rates of 0.36 to 813 ml / min with single-channel pump heads. - Speed range from 5 to 120 min-1. - Suitable for multi-channel operation. - Multi-channels flow rates from 0.005 to 329 ml / min. - Hei-FLOW Precision 01 Multi incl. adapter for multi-channel pump heads. Hei-FLOW Precision 06: - Flow rates of 1.0 to 4056 ml / min with single-channel pump heads. - Speed range from 24 to 600 min-1. - Not suitable for multi-channel operation. Hei-FLOW Platinum package: Incl. pump drive Hei-FLOW Precision 01, pump head SP quick 1.6, 1 m each Tygon (standard) and silicone tubing (inner Ø 0.8 mm).
