Water Treatment, miscellaneous

W3T276078, Omnilab

Ultra Clear TP ED 10 TWF 60 UV UF TM - 2 l/min Ultrapure water, 60l-Tank, UF The Ultra Clear™ TP ED series comes with an electronic dispenser (ED) allowing precise and volume-controlled dispensing of your ultra pure water for flows up to 2 l/min. The software is intuitive and makes dispensing easy without any delay. A printer and Modbus interface integrates the data transfer into your existing system. THE TWF MODELS The Ultra Clear TP ED TWF is an ultrapure water system available with all options, which is connected directly to the drinking water network (Tap Water Feed). The reverse osmosis stage works extremely water-saving with a recovery rate of > 30 %. The following ion exchange module (DI) provides water with < 2 µS/ cm from the tank. Wall mounted or bench system with TOC monitoring producing ultrapure, pyrogen free water with a conductivity of 18.2 MOhm-cm (0.055 µS/cm) and TOC < 3 ppb. Potable tap water fed unit, saving space by combining reverse osmosis a tank and the technologies of an ultra-pure water system in a single unit. The unit consists of: Pure water production reverse-osmosis / DI (Deionization): 1 inlet solenoid valve for potable tap water 1 reverse osmosis (RO) pump 1 pre-treatment module AMB for filtration and removal of chlorine with activated carbon to protect RO-module 1 pressure sensor to monitor system pressure and protect the pump from running dry 1 RO-module with spiral TFC-membrane 1 temperature compensated permeate water conductivity sensor (SS TI, C=0.2) 1 quality dependent solenoid valve 1 pre-treatment module DTO, pressure resistant, filled with high quality mixed bed resin 1 temperature compensated pure water conductivity sensor (SS 316 TI, C=0.1) 60l polyethylene permeate tank with: 1 3/4'' outlet to connect to i.e. laboratory washers 1 level sensor (4-20 mA) 1 CO2 trap and vent filter 1 254nm UV lamp (2.8 W) for disinfection 1 pure water dispense tap 1 overflow including contamination barrier Ultrapure water production: 1 flow turbine to recognize volume dispensed 1 recirculation pump, (automatic speed reduction when water is not being dispensed) 1 UV oxidation lamp 254/185 nm. The UV lamp is is surrounded by high quality quartz glass for TOC reduction, and disinfection. 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC), monitoring TOC 1 polishing module MFIIID, filled with high quality synthetic activated carbon, mixed bed resin in semi-conductor quality and adsorbed resin. 1 ultra-filtration module Preventor 5000 with hollow fiber polysulphon membrane for pyrogen, RNase, DNase and colloid removal 1 solenoid valve for module rinsing and temperature control 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC) 1 temperature sensor 1 Electronical dispenser PVDF, dead leg free, fully integrated in the recirculation loop and electronic recognition when in standby mode 1 0.2 µm point-of-use filter with PES-membrane 1 volumetric ultra-pure water dispenser 1 disinfection connection with quick fit couplers 1 single dose of disinfection solution 1 connection kit, including 2m tube Control: Graphical and programmable 7''-touch-glass panel to display: - flow diagram for quality parameter monitoring - operating pressure after the RO-module - pure water conductivity after the RO-module - conductivity of pure water after the pre-treatment module DTO - conductivity/resistivity of ultra-pure water - tank level indication in Percent - ultra-pure water temperature (temperature compensation can be disabled according to USP) - conductivity reference measurement for TOC, 1-10 ppb measurement range - servicing and consumables exchange requirements - notification of system malfunction and/or quality issues - settings monitoring - 24-hour interval setting, prolonging pump and UV-lamp lifespan - setting for automatic rinsing of the ultra-filtration module - adjustable data backup to store conductivity, tank volume, pressure, and temperature data - USB connection for data analysis - micro-SD card for data backup (detachable) - language options: German, English, French, Spanish, Portuguese and Chinese - Managing entire unit using the control panel - semi-automatic, menu selectable, disinfection of all water carrying parts - individual setting for conductivity and temperature limits - automatic disposal of recirculating water when the preset temperature limit is exceeded - part number and consumable descriptions within the control panel - Simple cartridge replacement with user friendly connections - cartridges with extended life-time - Interface to connect POS printer or ModBus TCP/IP Data Communication Gateway to transfer the system status information to Building Management System (BMS) The ultrapure laboratory water system is ready for use incl. the first set of modules and filters. Technical data: Pure water specifications: Volume flow rate:     10 l/h Conductivity:             2 µS/cm Tank capacity:          60 l Ultrapure water specifications: Volume flow rate:                     up to 2/min Conductivity:                            0.055 µS/cm Resistivity:                               18.2 MOhm-cm TOC:                                        < 3 ppb Bacteria:                                  < 0,1 cfu/ml Particulates > 0.2 µm/ml:         < 1 Endotoxins:                             < 0.001 EU/ml DNase, RNase:                         free Feed water specifications: Pressure:                                0.1 - 5 bar Conductivity:                         < 1400 µS/cm CO2:                                     < 10 mg/l Colloid index (SDI):               < 3 Free Chlorine:                       < 0.1 mg/l Iron:                                       < 0.1 mg/l Temperature:                          5 - 35ºC Mains input:                                  100-240 V, 50-60 Hz Power consumption:                    150 W max. 350 W Electrical connection cable (D, GB, US):                                 2.5 m Water connection:                        1/2'' or 3/4'' female thread Drain tube:                                    1/4'' Dimensions System: Width:                                340 mm Height:                               535 mm Depth:                                550 mm Dimensions 60l Tank: Width:                                560 mm Height:                               770 mm Depth:                                310 mm Dispatch weight:                 46 kg Ultra Clear TP ED 10 TWF 60 UV UF TM - 2 l/min Ultrapure water, 60l-Tank, UF The Ultra Clear™ TP ED series comes with an electronic dispenser (ED) allowing precise and volume-controlled dispensing of your ultra pure water for flows up to 2 l/min. The software is intuitive and makes dispensing easy without any delay. A printer and Modbus interface integrates the data transfer into your existing system. THE TWF MODELS The Ultra Clear TP ED TWF is an ultrapure water system available with all options, which is connected directly to the drinking water network (Tap Water Feed). The reverse osmosis stage works extremely water-saving with a recovery rate of > 30 %. The following ion exchange module (DI) provides water with < 2 µS/ cm from the tank. Wall mounted or bench system with TOC monitoring producing ultrapure, pyrogen free water with a conductivity of 18.2 MOhm-cm (0.055 µS/cm) and TOC < 3 ppb. Potable tap water fed unit, saving space by combining reverse osmosis a tank and the technologies of an ultra-pure water system in a single unit. The unit consists of: Pure water production reverse-osmosis / DI (Deionization): 1 inlet solenoid valve for potable tap water 1 reverse osmosis (RO) pump 1 pre-treatment module AMB for filtration and removal of chlorine with activated carbon to protect RO-module 1 pressure sensor to monitor system pressure and protect the pump from running dry 1 RO-module with spiral TFC-membrane 1 temperature compensated permeate water conductivity sensor (SS TI, C=0.2) 1 quality dependent solenoid valve 1 pre-treatment module DTO, pressure resistant, filled with high quality mixed bed resin 1 temperature compensated pure water conductivity sensor (SS 316 TI, C=0.1) 60l polyethylene permeate tank with: 1 3/4'' outlet to connect to i.e. laboratory washers 1 level sensor (4-20 mA) 1 CO2 trap and vent filter 1 254nm UV lamp (2.8 W) for disinfection 1 pure water dispense tap 1 overflow including contamination barrier Ultrapure water production: 1 flow turbine to recognize volume dispensed 1 recirculation pump, (automatic speed reduction when water is not being dispensed) 1 UV oxidation lamp 254/185 nm. The UV lamp is is surrounded by high quality quartz glass for TOC reduction, and disinfection. 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC), monitoring TOC 1 polishing module MFIIID, filled with high quality synthetic activated carbon, mixed bed resin in semi-conductor quality and adsorbed resin. 1 ultra-filtration module Preventor 5000 with hollow fiber polysulphon membrane for pyrogen, RNase, DNase and colloid removal 1 solenoid valve for module rinsing and temperature control 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC) 1 temperature sensor 1 Electronical dispenser PVDF, dead leg free, fully integrated in the recirculation loop and electronic recognition when in standby mode 1 0.2 µm point-of-use filter with PES-membrane 1 volumetric ultra-pure water dispenser 1 disinfection connection with quick fit couplers 1 single dose of disinfection solution 1 connection kit, including 2m tube Control: Graphical and programmable 7''-touch-glass panel to display: - flow diagram for quality parameter monitoring - operating pressure after the RO-module - pure water conductivity after the RO-module - conductivity of pure water after the pre-treatment module DTO - conductivity/resistivity of ultra-pure water - tank level indication in Percent - ultra-pure water temperature (temperature compensation can be disabled according to USP) - conductivity reference measurement for TOC, 1-10 ppb measurement range - servicing and consumables exchange requirements - notification of system malfunction and/or quality issues - settings monitoring - 24-hour interval setting, prolonging pump and UV-lamp lifespan - setting for automatic rinsing of the ultra-filtration module - adjustable data backup to store conductivity, tank volume, pressure, and temperature data - USB connection for data analysis - micro-SD card for data backup (detachable) - language options: German, English, French, Spanish, Portuguese and Chinese - Managing entire unit using the control panel - semi-automatic, menu selectable, disinfection of all water carrying parts - individual setting for conductivity and temperature limits - automatic disposal of recirculating water when the preset temperature limit is exceeded - part number and consumable descriptions within the control panel - Simple cartridge replacement with user friendly connections - cartridges with extended life-time - Interface to connect POS printer or ModBus TCP/IP Data Communication Gateway to transfer the system status information to Building Management System (BMS) The ultrapure laboratory water system is ready for use incl. the first set of modules and filters. Technical data: Pure water specifications: Volume flow rate:     10 l/h Conductivity:             2 µS/cm Tank capacity:          60 l Ultrapure water specifications: Volume flow rate:                     up to 2/min Conductivity:                            0.055 µS/cm Resistivity:                               18.2 MOhm-cm TOC:                                        < 3 ppb Bacteria:                                  < 0,1 cfu/ml Particulates > 0.2 µm/ml:         < 1 Endotoxins:                             < 0.001 EU/ml DNase, RNase:                         free Feed water specifications: Pressure:                                0.1 - 5 bar Conductivity:                         < 1400 µS/cm CO2:                                     < 10 mg/l Colloid index (SDI):               < 3 Free Chlorine:                       < 0.1 mg/l Iron:                                       < 0.1 mg/l Temperature:                          5 - 35ºC Mains input:                                  100-240 V, 50-60 Hz Power consumption:                    150 W max. 350 W Electrical connection cable (D, GB, US):                                 2.5 m Water connection:                        1/2'' or 3/4'' female thread Drain tube:                                    1/4'' Dimensions System: Width:                                340 mm Height:                               535 mm Depth:                                550 mm Dimensions 60l Tank: Width:                                560 mm Height:                               770 mm Depth:                                310 mm Dispatch weight:                 46 kg

W3T198845, Omnilab

Filter housing FG 5, Polypropylen blue Cartridge filter housing with wall bracket R 3/4'' male thread. Filter housing FG 5, Polypropylen blue Cartridge filter housing with wall bracket R 3/4'' male thread.

W3T197918, Omnilab

FG 20'' x 2, ACB / 5 µm Filter group with 2 housings; 1x active carbon cartridge and 1x filter cartridge 5 µm, 20'' in length FG 20'' x 2, ACB / 5 µm Filter group with 2 housings; 1x active carbon cartridge and 1x filter cartridge 5 µm, 20'' in length

W3T276075, Omnilab

Ultra Clear TP ED 10 TWF 30 UV TM - 2 l/min Ultra pure water, 30l-tank, TWF The Ultra Clear™ TP ED series comes with an electronic dispenser (ED) allowing precise and volume-controlled dispensing of your ultra pure water for flows up to 2 l/min. The software is intuitive and makes dispensing easy without any delay. A printer and Modbus interface integrates the data transfer into your existing system. THE TWF MODELS The Ultra Clear TP ED TWF is an ultrapure water system available with all options, which is connected directly to the drinking water network (Tap Water Feed). The reverse osmosis stage works extremely water-saving with a recovery rate of > 30 %. The following ion exchange module (DI) provides water with < 2 µS/ cm from the tank. Wall mounted or bench system with TOC monitoring producing ultrapure water with a conductivity of 18.2 MOhm-cm (0.055 µS/cm) and TOC < 3 ppb. Potable tap water fed unit, saving space by combining reverse osmosis a tank and the technologies of an ultra-pure water system in a single unit. The unit consists of: Pure water production reverse-osmosis / DI (Deionization): 1 inlet solenoid valve for potable tap water 1 reverse osmosis (RO) pump 1 pre-treatment module AMB for filtration and removal of chlorine with activated carbon to protect RO-module 1 pressure sensor to monitor system pressure and protect the pump from running dry 1 RO-module with spiral TFC-membrane 1 temperature compensated permeate water conductivity sensor (SS TI, C=0.2) 1 quality dependent solenoid valve 1 pre-treatment module DTO, pressure resistant, filled with high quality mixed bed resin 1 temperature compensated pure water conductivity sensor (SS 316 TI, C=0.1) 30l polyethylene permeate tank with: 1 3/4'' outlet to connect to i.e. laboratory washers 1 level sensor (4-20 mA) 1 CO2 trap and vent filter 1 254nm UV lamp (2.8 W) for disinfection 1 pure water dispense tap 1 overflow including contamination barrier Ultrapure water production: 1 flow turbine to recognize volume dispensed 1 recirculation pump, (automatic speed reduction when water is not being dispensed) 1 UV oxidation lamp 254/185 nm. The UV lamp is is surrounded by high quality quartz glass for TOC reduction, and disinfection. 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC), monitoring TOC 1 polishing module MFIIID, filled with high quality synthetic activated carbon, mixed bed resin in semi-conductor quality and adsorbed resin. 1 solenoid valve for module rinsing and temperature control 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC) 1 temperature sensor 1 Electronical dispenser PVDF, dead leg free, fully integrated in the recirculation loop and electronic recognition when in standby mode 1 0.2 µm point-of-use filter with PES-membrane 1 volumetric ultra-pure water dispenser 1 disinfection connection with quick fit couplers 1 single dose of disinfection solution 1 connection kit, including 2m tube Control: Graphical and programmable 7''-touch-glass panel to display: - flow diagram for quality parameter monitoring - operating pressure after the RO-module - pure water conductivity after the RO-module - conductivity of pure water after the pre-treatment module DTO - conductivity/resistivity of ultra-pure water - tank level indication in Percent - ultra-pure water temperature (temperature compensation can be disabled according to USP) - conductivity reference measurement for TOC, 1-10 ppb measurement range - servicing and consumables exchange requirements - notification of system malfunction and/or quality issues - settings monitoring - 24-hour interval setting, prolonging pump and UV-lamp lifespan - setting for automatic rinsing of the ultra-filtration module - adjustable data backup to store conductivity, tank volume, pressure, and temperature data - USB connection for data analysis - micro-SD card for data backup (detachable) - language options: German, English, French, Spanish, Portuguese and Chinese - Managing entire unit using the control panel - semi-automatic, menu selectable, disinfection of all water carrying parts - individual setting for conductivity and temperature limits - automatic disposal of recirculating water when the preset temperature limit is exceeded - part number and consumable descriptions within the control panel - Simple cartridge replacement with user friendly connections - cartridges with extended life-time - Interface to connect POS printer or ModBus TCP/IP Data Communication Gateway to transfer the system status information to Building Management System (BMS) The ultrapure laboratory water system is ready for use incl. the first set of modules and filters. Technical data Pure water specifications: Volume flow rate:                 10 l/h Conductivity:                         2 µS/cm Tank capacity:                      30 l Ultrapure water specifications: Volume flow rate:                 up to 2/min Conductivity:                        0.055 µS/cm Resistivity:                           18.2 MOhm-cm TOC:                                    < 3 ppb Bacteria:                              < 0,1 cfu/ml Particulates > 0.2 µm/ml:     < 1 Feed water specifications: Pressure:                            0.1 - 5 bar Conductivity:                     < 1400 µS/cm CO2:                                 < 10 mg/l Colloid index (SDI):           < 3 Free Chlorine:                   < 0.1 mg/l Iron:                                   < 0.1 mg/l Temperature:                      5 - 35ºC Mains input:                            100-240 V, 50-60 Hz Power consumption:               150 W max. 350 W Electrical connection cable (D, GB, US):                            2.5 m Water connection:                   1/2'' or 3/4'' female thread Drain tube:                              1/4'' Dimensions System: Width:                           340 mm Height:                          535 mm Depth:                           550 mm Dimensions 30l Tank: Width:                           300 mm Height:                          770 mm Depth:                           310 mm Shipping weight:              44 kg Ultra Clear TP ED 10 TWF 30 UV TM - 2 l/min Ultra pure water, 30l-tank, TWF The Ultra Clear™ TP ED series comes with an electronic dispenser (ED) allowing precise and volume-controlled dispensing of your ultra pure water for flows up to 2 l/min. The software is intuitive and makes dispensing easy without any delay. A printer and Modbus interface integrates the data transfer into your existing system. THE TWF MODELS The Ultra Clear TP ED TWF is an ultrapure water system available with all options, which is connected directly to the drinking water network (Tap Water Feed). The reverse osmosis stage works extremely water-saving with a recovery rate of > 30 %. The following ion exchange module (DI) provides water with < 2 µS/ cm from the tank. Wall mounted or bench system with TOC monitoring producing ultrapure water with a conductivity of 18.2 MOhm-cm (0.055 µS/cm) and TOC < 3 ppb. Potable tap water fed unit, saving space by combining reverse osmosis a tank and the technologies of an ultra-pure water system in a single unit. The unit consists of: Pure water production reverse-osmosis / DI (Deionization): 1 inlet solenoid valve for potable tap water 1 reverse osmosis (RO) pump 1 pre-treatment module AMB for filtration and removal of chlorine with activated carbon to protect RO-module 1 pressure sensor to monitor system pressure and protect the pump from running dry 1 RO-module with spiral TFC-membrane 1 temperature compensated permeate water conductivity sensor (SS TI, C=0.2) 1 quality dependent solenoid valve 1 pre-treatment module DTO, pressure resistant, filled with high quality mixed bed resin 1 temperature compensated pure water conductivity sensor (SS 316 TI, C=0.1) 30l polyethylene permeate tank with: 1 3/4'' outlet to connect to i.e. laboratory washers 1 level sensor (4-20 mA) 1 CO2 trap and vent filter 1 254nm UV lamp (2.8 W) for disinfection 1 pure water dispense tap 1 overflow including contamination barrier Ultrapure water production: 1 flow turbine to recognize volume dispensed 1 recirculation pump, (automatic speed reduction when water is not being dispensed) 1 UV oxidation lamp 254/185 nm. The UV lamp is is surrounded by high quality quartz glass for TOC reduction, and disinfection. 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC), monitoring TOC 1 polishing module MFIIID, filled with high quality synthetic activated carbon, mixed bed resin in semi-conductor quality and adsorbed resin. 1 solenoid valve for module rinsing and temperature control 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC) 1 temperature sensor 1 Electronical dispenser PVDF, dead leg free, fully integrated in the recirculation loop and electronic recognition when in standby mode 1 0.2 µm point-of-use filter with PES-membrane 1 volumetric ultra-pure water dispenser 1 disinfection connection with quick fit couplers 1 single dose of disinfection solution 1 connection kit, including 2m tube Control: Graphical and programmable 7''-touch-glass panel to display: - flow diagram for quality parameter monitoring - operating pressure after the RO-module - pure water conductivity after the RO-module - conductivity of pure water after the pre-treatment module DTO - conductivity/resistivity of ultra-pure water - tank level indication in Percent - ultra-pure water temperature (temperature compensation can be disabled according to USP) - conductivity reference measurement for TOC, 1-10 ppb measurement range - servicing and consumables exchange requirements - notification of system malfunction and/or quality issues - settings monitoring - 24-hour interval setting, prolonging pump and UV-lamp lifespan - setting for automatic rinsing of the ultra-filtration module - adjustable data backup to store conductivity, tank volume, pressure, and temperature data - USB connection for data analysis - micro-SD card for data backup (detachable) - language options: German, English, French, Spanish, Portuguese and Chinese - Managing entire unit using the control panel - semi-automatic, menu selectable, disinfection of all water carrying parts - individual setting for conductivity and temperature limits - automatic disposal of recirculating water when the preset temperature limit is exceeded - part number and consumable descriptions within the control panel - Simple cartridge replacement with user friendly connections - cartridges with extended life-time - Interface to connect POS printer or ModBus TCP/IP Data Communication Gateway to transfer the system status information to Building Management System (BMS) The ultrapure laboratory water system is ready for use incl. the first set of modules and filters. Technical data Pure water specifications: Volume flow rate:                 10 l/h Conductivity:                         2 µS/cm Tank capacity:                      30 l Ultrapure water specifications: Volume flow rate:                 up to 2/min Conductivity:                        0.055 µS/cm Resistivity:                           18.2 MOhm-cm TOC:                                    < 3 ppb Bacteria:                              < 0,1 cfu/ml Particulates > 0.2 µm/ml:     < 1 Feed water specifications: Pressure:                            0.1 - 5 bar Conductivity:                     < 1400 µS/cm CO2:                                 < 10 mg/l Colloid index (SDI):           < 3 Free Chlorine:                   < 0.1 mg/l Iron:                                   < 0.1 mg/l Temperature:                      5 - 35ºC Mains input:                            100-240 V, 50-60 Hz Power consumption:               150 W max. 350 W Electrical connection cable (D, GB, US):                            2.5 m Water connection:                   1/2'' or 3/4'' female thread Drain tube:                              1/4'' Dimensions System: Width:                           340 mm Height:                          535 mm Depth:                           550 mm Dimensions 30l Tank: Width:                           300 mm Height:                          770 mm Depth:                           310 mm Shipping weight:              44 kg

W3T197580, Omnilab

RO replacement module Ultra Clear ® RO 20 - 100 and Ultra Clear ® RO 20-55 EDI Consumables for Ultra Clear ® systems RO replacement module Ultra Clear ® RO 20 - 100 and Ultra Clear ® RO 20-55 EDI Consumables for Ultra Clear ® systems

W3T339692, Omnilab

W3T276076, Omnilab

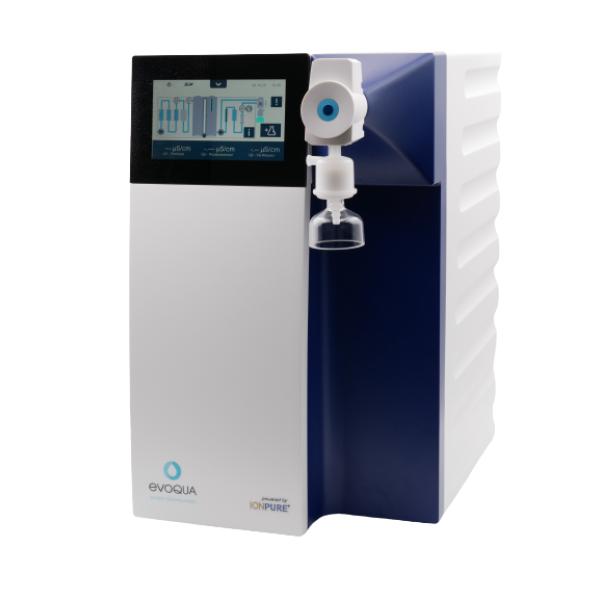

Ultra Clear TP ED 10 TWF 30 UV UF TM - 2 l/min Ultrapure water System, 30l-Tank, UF The Ultra Clear™ TP ED series comes with an electronic dispenser (ED) allowing precise and volume-controlled dispensing of your ultra pure water for flows up to 2 l/min. The software is intuitive and makes dispensing easy without any delay. A printer and Modbus interface integrates the data transfer into your existing system. THE TWF MODELS The Ultra Clear TP ED TWF is an ultrapure water system available with all options, which is connected directly to the drinking water network (Tap Water Feed). The reverse osmosis stage works extremely water-saving with a recovery rate of > 30 %. The following ion exchange module (DI) provides water with < 2 µS/ cm from the tank. Wall mounted or bench system with TOC monitoring producing ultrapure, pyrogen free water with a conductivity of 18.2 MOhm-cm (0.055 µS/cm) and TOC < 3 ppb. Potable tap water fed unit, saving space by combining reverse osmosis a tank and the technologies of an ultra-pure water system in a single unit. The unit consists of: Pure water production reverse-osmosis / DI (Deionization): 1 inlet solenoid valve for potable tap water 1 reverse osmosis (RO) pump 1 pre-treatment module AMB for filtration and removal of chlorine with activated carbon to protect RO-module 1 pressure sensor to monitor system pressure and protect the pump from running dry 1 RO-module with spiral TFC-membrane 1 temperature compensated permeate water conductivity sensor (SS TI, C=0.2) 1 quality dependent solenoid valve 1 pre-treatment module DTO, pressure resistant, filled with high quality mixed bed resin 1 temperature compensated pure water conductivity sensor (SS 316 TI, C=0.1) 30l polyethylene permeate tank with: 1 3/4'' outlet to connect to i.e. laboratory washers 1 level sensor (4-20 mA) 1 CO2 trap and vent filter 1 254nm UV lamp (2.8 W) for disinfection 1 pure water dispense tap 1 overflow including contamination barrier Ultrapure water production: 1 flow turbine to recognize volume dispensed 1 recirculation pump, (automatic speed reduction when water is not being dispensed) 1 UV oxidation lamp 254/185 nm. The UV lamp is is surrounded by high quality quartz glass for TOC reduction, and disinfection. 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC), monitoring TOC 1 polishing module MFIIID, filled with high quality synthetic activated carbon, mixed bed resin in semi-conductor quality and adsorbed resin. 1 ultra-filtration module Preventor 5000 with hollow fiber polysulphon membrane for pyrogen, RNase, DNase and colloid removal 1 solenoid valve for module rinsing and temperature control 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC) 1 temperature sensor 1 Electronical dispenser PVDF, dead leg free, fully integrated in the recirculation loop and electronic recognition when in standby mode 1 0.2 µm point-of-use filter with PES-membrane 1 volumetric ultra-pure water dispenser 1 disinfection connection with quick fit couplers 1 single dose of disinfection solution 1 connection kit, including 2m tube Control: Graphical and programmable 7''-touch-glass panel to display: - flow diagram for quality parameter monitoring - operating pressure after the RO-module - pure water conductivity after the RO-module - conductivity of pure water after the pre-treatment module DTO - conductivity/resistivity of ultra-pure water - tank level indication in Percent - ultra-pure water temperature (temperature compensation can be disabled according to USP) - conductivity reference measurement for TOC, 1-10 ppb measurement range - servicing and consumables exchange requirements - notification of system malfunction and/or quality issues - settings monitoring - 24-hour interval setting, prolonging pump and UV-lamp lifespan - setting for automatic rinsing of the ultra-filtration module - adjustable data backup to store conductivity, tank volume, pressure, and temperature data - USB connection for data analysis - micro-SD card for data backup (detachable) - language options: German, English, French, Spanish, Portuguese and Chinese - Managing entire unit using the control panel - semi-automatic, menu selectable, disinfection of all water carrying parts - individual setting for conductivity and temperature limits - automatic disposal of recirculating water when the preset temperature limit is exceeded - part number and consumable descriptions within the control panel - Simple cartridge replacement with user friendly connections - cartridges with extended life-time - Interface to connect POS printer or ModBus TCP/IP Data Communication Gateway to transfer the system status information to Building Management System (BMS) The ultrapure laboratory water system is ready for use incl. the first set of modules and filters. Technical data: Pure water specifications: Volume flow rate:                 10 l/h Conductivity:                         2 µS/cm Tank capacity:                       30 l Ultrapure water specifications: Volume flow rate:                 up to 2/min Conductivity:                        0.055 µS/cm Resistivity:                           18.2 MOhm-cm TOC:                                    < 3 ppb Bacteria:                              < 0,1 cfu/ml Particulates > 0.2 µm/ml:     < 1 Endotoxins:                          < 0.001 EU/ml DNase, RNase, DNA:           free Feed water specifications: Pressure:                             0.1 - 5 bar Conductivity:                       < 1400 µS/cm CO2:                                   < 10 mg/l Colloid index (SDI):            < 3 Free Chlorine:                    < 0.1 mg/l Iron:                                   < 0.1 mg/l Temperature:                      5 - 35ºC Mains input:                            100-240 V, 50-60 Hz Power consumption:               150 W max. 350 W Electrical connection cable (D, GB, US):                            2.5 m Water connection:                   1/2'' or 3/4'' female thread Drain tube:                               1/4'' Dimensions System: Width:                          340 mm Height:                         535 mm Depth:                          550 mm Dimensions 30l Tank: Width:                         300 mm Height:                        770 mm Depth:                         310 mm Dispatch weight:          44 kg Ultra Clear TP ED 10 TWF 30 UV UF TM - 2 l/min Ultrapure water System, 30l-Tank, UF The Ultra Clear™ TP ED series comes with an electronic dispenser (ED) allowing precise and volume-controlled dispensing of your ultra pure water for flows up to 2 l/min. The software is intuitive and makes dispensing easy without any delay. A printer and Modbus interface integrates the data transfer into your existing system. THE TWF MODELS The Ultra Clear TP ED TWF is an ultrapure water system available with all options, which is connected directly to the drinking water network (Tap Water Feed). The reverse osmosis stage works extremely water-saving with a recovery rate of > 30 %. The following ion exchange module (DI) provides water with < 2 µS/ cm from the tank. Wall mounted or bench system with TOC monitoring producing ultrapure, pyrogen free water with a conductivity of 18.2 MOhm-cm (0.055 µS/cm) and TOC < 3 ppb. Potable tap water fed unit, saving space by combining reverse osmosis a tank and the technologies of an ultra-pure water system in a single unit. The unit consists of: Pure water production reverse-osmosis / DI (Deionization): 1 inlet solenoid valve for potable tap water 1 reverse osmosis (RO) pump 1 pre-treatment module AMB for filtration and removal of chlorine with activated carbon to protect RO-module 1 pressure sensor to monitor system pressure and protect the pump from running dry 1 RO-module with spiral TFC-membrane 1 temperature compensated permeate water conductivity sensor (SS TI, C=0.2) 1 quality dependent solenoid valve 1 pre-treatment module DTO, pressure resistant, filled with high quality mixed bed resin 1 temperature compensated pure water conductivity sensor (SS 316 TI, C=0.1) 30l polyethylene permeate tank with: 1 3/4'' outlet to connect to i.e. laboratory washers 1 level sensor (4-20 mA) 1 CO2 trap and vent filter 1 254nm UV lamp (2.8 W) for disinfection 1 pure water dispense tap 1 overflow including contamination barrier Ultrapure water production: 1 flow turbine to recognize volume dispensed 1 recirculation pump, (automatic speed reduction when water is not being dispensed) 1 UV oxidation lamp 254/185 nm. The UV lamp is is surrounded by high quality quartz glass for TOC reduction, and disinfection. 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC), monitoring TOC 1 polishing module MFIIID, filled with high quality synthetic activated carbon, mixed bed resin in semi-conductor quality and adsorbed resin. 1 ultra-filtration module Preventor 5000 with hollow fiber polysulphon membrane for pyrogen, RNase, DNase and colloid removal 1 solenoid valve for module rinsing and temperature control 1 temperature compensated conductivity sensor (SS 316 TI, C=0.1, 0.1º intervals at 25ºC) 1 temperature sensor 1 Electronical dispenser PVDF, dead leg free, fully integrated in the recirculation loop and electronic recognition when in standby mode 1 0.2 µm point-of-use filter with PES-membrane 1 volumetric ultra-pure water dispenser 1 disinfection connection with quick fit couplers 1 single dose of disinfection solution 1 connection kit, including 2m tube Control: Graphical and programmable 7''-touch-glass panel to display: - flow diagram for quality parameter monitoring - operating pressure after the RO-module - pure water conductivity after the RO-module - conductivity of pure water after the pre-treatment module DTO - conductivity/resistivity of ultra-pure water - tank level indication in Percent - ultra-pure water temperature (temperature compensation can be disabled according to USP) - conductivity reference measurement for TOC, 1-10 ppb measurement range - servicing and consumables exchange requirements - notification of system malfunction and/or quality issues - settings monitoring - 24-hour interval setting, prolonging pump and UV-lamp lifespan - setting for automatic rinsing of the ultra-filtration module - adjustable data backup to store conductivity, tank volume, pressure, and temperature data - USB connection for data analysis - micro-SD card for data backup (detachable) - language options: German, English, French, Spanish, Portuguese and Chinese - Managing entire unit using the control panel - semi-automatic, menu selectable, disinfection of all water carrying parts - individual setting for conductivity and temperature limits - automatic disposal of recirculating water when the preset temperature limit is exceeded - part number and consumable descriptions within the control panel - Simple cartridge replacement with user friendly connections - cartridges with extended life-time - Interface to connect POS printer or ModBus TCP/IP Data Communication Gateway to transfer the system status information to Building Management System (BMS) The ultrapure laboratory water system is ready for use incl. the first set of modules and filters. Technical data: Pure water specifications: Volume flow rate:                 10 l/h Conductivity:                         2 µS/cm Tank capacity:                       30 l Ultrapure water specifications: Volume flow rate:                 up to 2/min Conductivity:                        0.055 µS/cm Resistivity:                           18.2 MOhm-cm TOC:                                    < 3 ppb Bacteria:                              < 0,1 cfu/ml Particulates > 0.2 µm/ml:     < 1 Endotoxins:                          < 0.001 EU/ml DNase, RNase, DNA:           free Feed water specifications: Pressure:                             0.1 - 5 bar Conductivity:                       < 1400 µS/cm CO2:                                   < 10 mg/l Colloid index (SDI):            < 3 Free Chlorine:                    < 0.1 mg/l Iron:                                   < 0.1 mg/l Temperature:                      5 - 35ºC Mains input:                            100-240 V, 50-60 Hz Power consumption:               150 W max. 350 W Electrical connection cable (D, GB, US):                            2.5 m Water connection:                   1/2'' or 3/4'' female thread Drain tube:                               1/4'' Dimensions System: Width:                          340 mm Height:                         535 mm Depth:                          550 mm Dimensions 30l Tank: Width:                         300 mm Height:                        770 mm Depth:                         310 mm Dispatch weight:          44 kg

W3T198842, Omnilab

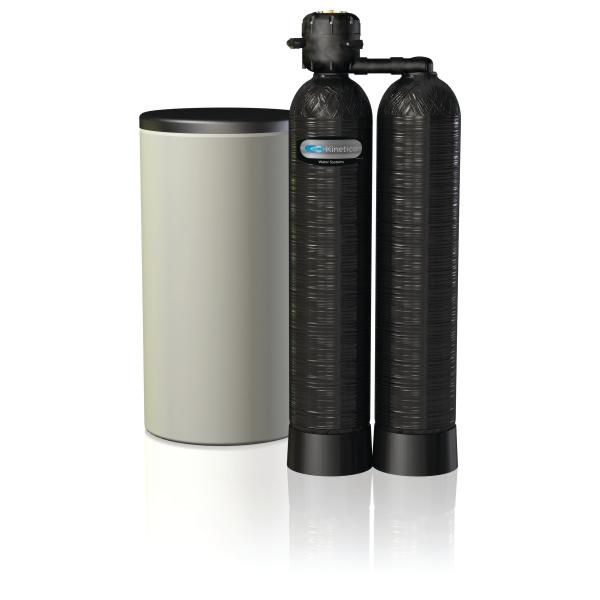

Dual softener VM 100 These fully automated, quantity-controlled, mechanical twin water softening systems offer, among other aspects, continuous availability of soft water with low salt and water consumption and very easy installation. Thanks to its synthetic components the system is non-corroding. The systems are monitored with a hydraulic control button. Therefore, a Power supply is not required. The systems are powered para flow and ensure maximum reduction of hardness with full use of volume capacity. Flow rate: max. 40 l/min Flow rate: min.  4 l/min Regeneration Salt consumption/regeneration: 4.5 kg Regeneration time: 90 min Water consumption: 386 l Back wash: 14 l/min Technical Data: Resin charge: 2 x 42 l Salt storage capacity: 114 kg Feed water pressure: 2.5 - 8 bar connection size feed water / soft water: 1-1/4'' Adapter: 1 1/4'' -> 1'': W2T557823 temperature min/max: 2 - 49°C Dimensions and weight: Height: 1200 mm Width: 530 mm Depth: 750 mm Weight: 120 kg Capacity values: Hardness  Hardness zone   available soft disc      °dH up to       water quantity 1                7                  14492 2              14                    7248 3              20                    4829 4              25                    3622 5              30                    2900 6              36                    2414 7              40                    2070 8              43                    1821 Dual softener VM 100 These fully automated, quantity-controlled, mechanical twin water softening systems offer, among other aspects, continuous availability of soft water with low salt and water consumption and very easy installation. Thanks to its synthetic components the system is non-corroding. The systems are monitored with a hydraulic control button. Therefore, a Power supply is not required. The systems are powered para flow and ensure maximum reduction of hardness with full use of volume capacity. Flow rate: max. 40 l/min Flow rate: min.  4 l/min Regeneration Salt consumption/regeneration: 4.5 kg Regeneration time: 90 min Water consumption: 386 l Back wash: 14 l/min Technical Data: Resin charge: 2 x 42 l Salt storage capacity: 114 kg Feed water pressure: 2.5 - 8 bar connection size feed water / soft water: 1-1/4'' Adapter: 1 1/4'' -> 1'': W2T557823 temperature min/max: 2 - 49°C Dimensions and weight: Height: 1200 mm Width: 530 mm Depth: 750 mm Weight: 120 kg Capacity values: Hardness  Hardness zone   available soft disc      °dH up to       water quantity 1                7                  14492 2              14                    7248 3              20                    4829 4              25                    3622 5              30                    2900 6              36                    2414 7              40                    2070 8              43                    1821

W3T197526, Omnilab

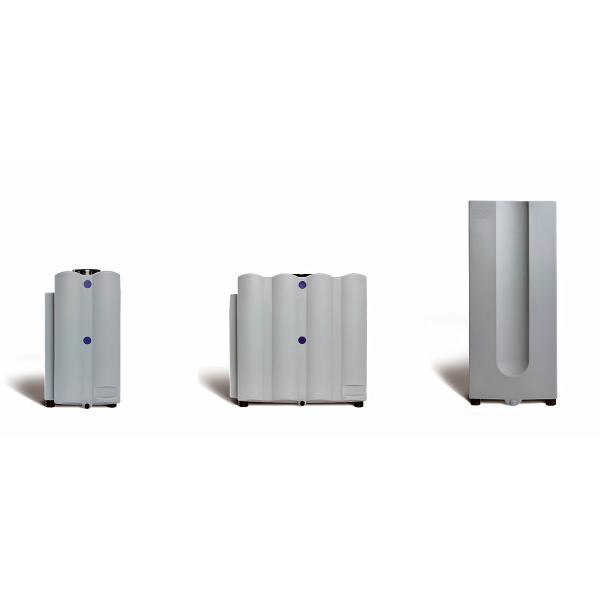

Ultra Clear ® RO Tank PE 80 l with pump 1.2 l/min (until YoC 2015) 80l tank with conical bottom for permeate or pure water to match the Ultra Clear RO design. With integrated booster pump and positive displacement pump and pressure dependent controller, with level sensor for infinitely variable level control (shown in Percent on the display of the Ultra Clear RO). Technical data: Capacity: approx. 80 l Power supply: 100-240VAC; 50/60Hz; max.0,08 kW @ 230VAC Pump output: 1,2 l/Min at counter pressure: 3 bar Noise level: 50 dB(A) Dimensions and weight: Height: 820 mm Width: 345 mm Depth: 520 mm Weight: 20 kg Ultra Clear ® RO Tank PE 80 l with pump 1.2 l/min (until YoC 2015) 80l tank with conical bottom for permeate or pure water to match the Ultra Clear RO design. With integrated booster pump and positive displacement pump and pressure dependent controller, with level sensor for infinitely variable level control (shown in Percent on the display of the Ultra Clear RO). Technical data: Capacity: approx. 80 l Power supply: 100-240VAC; 50/60Hz; max.0,08 kW @ 230VAC Pump output: 1,2 l/Min at counter pressure: 3 bar Noise level: 50 dB(A) Dimensions and weight: Height: 820 mm Width: 345 mm Depth: 520 mm Weight: 20 kg

W3T227502, Omnilab

For the following LaboStar ® and Ultra Clear ® ultra pure water systems: - Ultra Clear TP ED - LaboStar Pro DI - LaboStar Pro UV For the following LaboStar ® and Ultra Clear ® ultra pure water systems: - Ultra Clear TP ED - LaboStar Pro DI - LaboStar Pro UV

W3T199449, Omnilab

Adsorber resin cartridge 10‘‘ for RS 90 Consumables for Ultra pure water systems Adsorber resin cartridge 10‘‘ for RS 90 Consumables for Ultra pure water systems

W3T199832, Omnilab

Replacement Lamp for UV disinfection system UV 33: # W3T199987 Q= 1,1 - 3,3 m3/h Replacement Lamp for UV disinfection system UV 33: # W3T199987 Q= 1,1 - 3,3 m3/h
