Zubehör für Minireaktoren

2509500, Omnilab

With flow borings, for all laboratory reactors. With flow borings, for all laboratory reactors.

0020119549, Omnilab

0020108012, Omnilab

Insulated high temperature hose set (2 x 800 mm) Temperature range: -60 - 300 °C Max. operating pressure: 3 bar Connection: nipples on both sides with M16x1 nuts Insulated high temperature hose set (2 x 800 mm) Temperature range: -60 - 300 °C Max. operating pressure: 3 bar Connection: nipples on both sides with M16x1 nuts

0020113867, Omnilab

FEP-coated O-Ring for the EasySyn reactor system. Size: DN 100 Material in contact with medium: FEP Suitable for reactor vessels with volumes of 500 ml (SY 500 and SY 500 D) and 1000 ml (SY 1000 and SY 1000 D). FEP-coated O-Ring for the EasySyn reactor system. Size: DN 100 Material in contact with medium: FEP Suitable for reactor vessels with volumes of 500 ml (SY 500 and SY 500 D) and 1000 ml (SY 1000 and SY 1000 D).

2509300, Omnilab

Compatible with temperature probes PT 100.30, PT 100.25, PT 100.5 and H 68.55, 6 mm diameter. Compatible with temperature probes PT 100.30, PT 100.25, PT 100.5 and H 68.55, 6 mm diameter.

0020113461, Omnilab

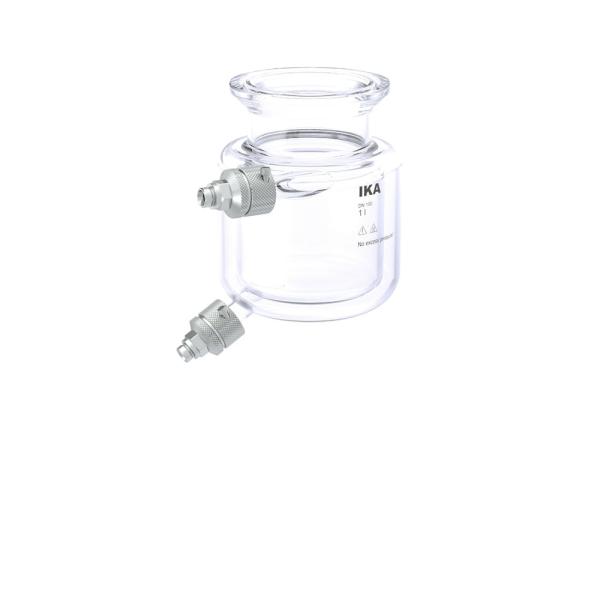

Double-walled reactor vessel including accessories for the EasySyn reactor system. Volume: 1000 ml Flange size: DN 100 Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses. Scope of delivery: Glasreactor incl. metal adapter Double-walled reactor vessel including accessories for the EasySyn reactor system. Volume: 1000 ml Flange size: DN 100 Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses. Scope of delivery: Glasreactor incl. metal adapter

0020103316, Omnilab

The EasySyn reactor systems with double-walled reactor vessels from 500 ml to 5000 ml provide high flexibility using a single, specially designed stand system. - Quick and easy exchange of different reactor vessels - Simple alignment of the overhead stirrer - Adjustment of the operating height to the individual body size. The EasySyn reactor systems with double-walled reactor vessels from 500 ml to 5000 ml provide high flexibility using a single, specially designed stand system. - Quick and easy exchange of different reactor vessels - Simple alignment of the overhead stirrer - Adjustment of the operating height to the individual body size.

0020114115, Omnilab

PTFE-coated anchor stirrer. Shaft length: 530 mm Shaft diamter: 10 mm Dimensions stirring tool (W/H): 136 mm / 100 mm Suitable for the EasySyn reactor system with reactor vessels SY 2000, SY 2000 D, SY 5000 and SY 5000 D (Volume: 2000 ml; 5000 ml). PTFE-coated anchor stirrer. Shaft length: 530 mm Shaft diamter: 10 mm Dimensions stirring tool (W/H): 136 mm / 100 mm Suitable for the EasySyn reactor system with reactor vessels SY 2000, SY 2000 D, SY 5000 and SY 5000 D (Volume: 2000 ml; 5000 ml).

20007267, Omnilab

20000879, Omnilab

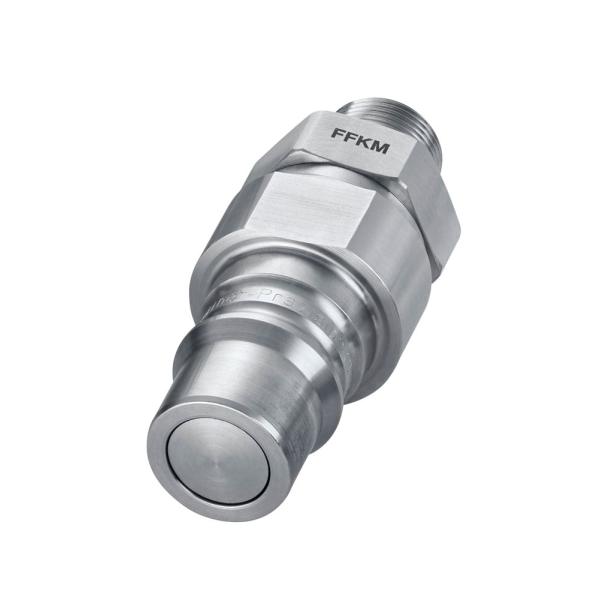

For connect tempering hoses with M 16x1 screw nut connector. (e.g. LT 5.20 / LT 5.21 / H.FKM.12) Thread: M16x1 male. Coupling cross section: DN 9 Material: stainless steel with FFKM seal Working conditions: up to 260°C Note: Please order the coupling counterpart LT 5.25 on reactor side separately For connect tempering hoses with M 16x1 screw nut connector. (e.g. LT 5.20 / LT 5.21 / H.FKM.12) Thread: M16x1 male. Coupling cross section: DN 9 Material: stainless steel with FFKM seal Working conditions: up to 260°C Note: Please order the coupling counterpart LT 5.25 on reactor side separately

0020114111, Omnilab

PTFE-coated propeller stirrer. Shaft length: 400 mm Shaft diamter: 10 mm Dimensions stirring tool (W/H): 40 mm / 8 mm Suitable for the EasySyn reactor system with reactor vessels SY 500, SY 500 D, SY 1000, SY 1000 D (Volumes:500 ml; 1000 ml). PTFE-coated propeller stirrer. Shaft length: 400 mm Shaft diamter: 10 mm Dimensions stirring tool (W/H): 40 mm / 8 mm Suitable for the EasySyn reactor system with reactor vessels SY 500, SY 500 D, SY 1000, SY 1000 D (Volumes:500 ml; 1000 ml).

0020114112, Omnilab

PTFE-coated propeller stirrer. Shaft length: 480 mm Shaft diamter: 10 mm Dimensions stirring tool (W/H): 50 mm / 10 mm Suitable for the EasySyn reactor system with reactor vessels SY 1000, SY 1000 D, SY 2000, SY 2000 D (Volumes: 1000 ml; 2000 ml). PTFE-coated propeller stirrer. Shaft length: 480 mm Shaft diamter: 10 mm Dimensions stirring tool (W/H): 50 mm / 10 mm Suitable for the EasySyn reactor system with reactor vessels SY 1000, SY 1000 D, SY 2000, SY 2000 D (Volumes: 1000 ml; 2000 ml).
