Climatic- / Temperature Test Chambers

T1640-00, Omnilab

Working safe with RUMED®: if explosive material is to be tested or if the installation place is exposed to the danger of explosions, the Ex equipment lines ensure highest safety. All units have an ATEX approval for zone 1. 2 executions are available: in the Safety T-Line, the test chamber is explosion-proof, in the Safety X-Line, the entire unit is explosion-proof. Thus, the units of the Safety X-Line can also be used in explosive areas of zone 1, such as in refineries or chemical plants. All units are manufactured from st. steel. Thus, they are resistant to solvents and chemicals. Material and processing guarantee easy handling and durability. The explosion-proof recirculating air fan provides a good temperature distribution in space, as well as quick heating and cooling. If the door had been opened, the initial temperatures will be achieved within the shortest time. The units of the Safety T-Line are suitable for safe storage of explosive materials, such as aerosols or for tests with adhesives or paint - even if the storage tests might occasionally or temporary cause an explosive atmosphere. Development of a permanent or long-term explosive atmosphere must be avoided by means of the option technical ventilation. The units are suitable for storage of material of the temperature classes T1, T2 and T3 of explosion group IIA and IIB+H2. Each unit receives an ATEX approval for zone 1. Optionally available with extension of the temperature range to - 20 / + 80 °C, humidification and dehumidification and further options. Configure your test equipment, which is the most suitable for your requirements. Test chamber explosion-proof Ex II 2/- G Ex db eb h [ib] ib mb IIB+H2 T3 Gb. Working safe with RUMED®: if explosive material is to be tested or if the installation place is exposed to the danger of explosions, the Ex equipment lines ensure highest safety. All units have an ATEX approval for zone 1. 2 executions are available: in the Safety T-Line, the test chamber is explosion-proof, in the Safety X-Line, the entire unit is explosion-proof. Thus, the units of the Safety X-Line can also be used in explosive areas of zone 1, such as in refineries or chemical plants. All units are manufactured from st. steel. Thus, they are resistant to solvents and chemicals. Material and processing guarantee easy handling and durability. The explosion-proof recirculating air fan provides a good temperature distribution in space, as well as quick heating and cooling. If the door had been opened, the initial temperatures will be achieved within the shortest time. The units of the Safety T-Line are suitable for safe storage of explosive materials, such as aerosols or for tests with adhesives or paint - even if the storage tests might occasionally or temporary cause an explosive atmosphere. Development of a permanent or long-term explosive atmosphere must be avoided by means of the option technical ventilation. The units are suitable for storage of material of the temperature classes T1, T2 and T3 of explosion group IIA and IIB+H2. Each unit receives an ATEX approval for zone 1. Optionally available with extension of the temperature range to - 20 / + 80 °C, humidification and dehumidification and further options. Configure your test equipment, which is the most suitable for your requirements. Test chamber explosion-proof Ex II 2/- G Ex db eb h [ib] ib mb IIB+H2 T3 Gb.

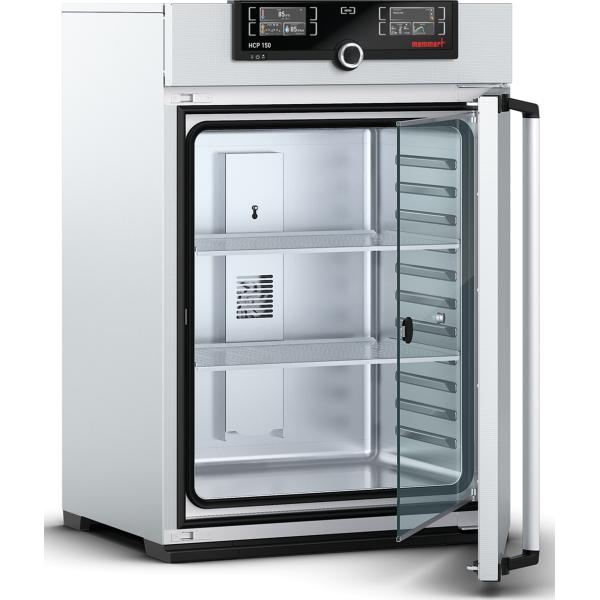

9007150, Omnilab

3907, Omnilab

Environmental chambers 311 l and 821 l units meet ICH, FDA, TAPPI, DIN12880 and national testing standards and are built to last. Use them for your applications requiring temperature control above or below ambient, humidity control and CO2 on option. This series of environmental chambers are ideal for drug stability studies, shelf life testing for packaged products, controlled temperature storage and insect and other large-scale biological research and can be tailored to your application with many options. - 0 to 60 °C temperature range that can be set in 0.1 °C increments. - Optimum uniformity and a wide temperature range allow for easy compliance with regulatory requirements. - Rugged construction and durable shelving provide for long life. - Solid, st. steel interior is more durable and corrosion-resistant than plastic or painted metal, ensuring long life and minimizing equipment costs. - Heavy-duty, solid, st. steel shelves are easy-to-clean, saving time and effort; more corrosion-resistant than coated wire shelves for long life; and adjustable for convenience. - 821 l models include 6 shelves that are adjustable on 76 mm centers. - 311 l model includes 3 shelves that are adjustable on 51 mm centers. - Reinforced floor / shelf components for 821 l models are available so you can use shakers, cell rollers or other heavy equipment or product loads inside the chamber to meet a variety of applications. - Swivel, locking casters ensure easy mobility during installation and cleaning. Environmental chambers 311 l and 821 l units meet ICH, FDA, TAPPI, DIN12880 and national testing standards and are built to last. Use them for your applications requiring temperature control above or below ambient, humidity control and CO2 on option. This series of environmental chambers are ideal for drug stability studies, shelf life testing for packaged products, controlled temperature storage and insect and other large-scale biological research and can be tailored to your application with many options. - 0 to 60 °C temperature range that can be set in 0.1 °C increments. - Optimum uniformity and a wide temperature range allow for easy compliance with regulatory requirements. - Rugged construction and durable shelving provide for long life. - Solid, st. steel interior is more durable and corrosion-resistant than plastic or painted metal, ensuring long life and minimizing equipment costs. - Heavy-duty, solid, st. steel shelves are easy-to-clean, saving time and effort; more corrosion-resistant than coated wire shelves for long life; and adjustable for convenience. - 821 l models include 6 shelves that are adjustable on 76 mm centers. - 311 l model includes 3 shelves that are adjustable on 51 mm centers. - Reinforced floor / shelf components for 821 l models are available so you can use shakers, cell rollers or other heavy equipment or product loads inside the chamber to meet a variety of applications. - Swivel, locking casters ensure easy mobility during installation and cleaning.

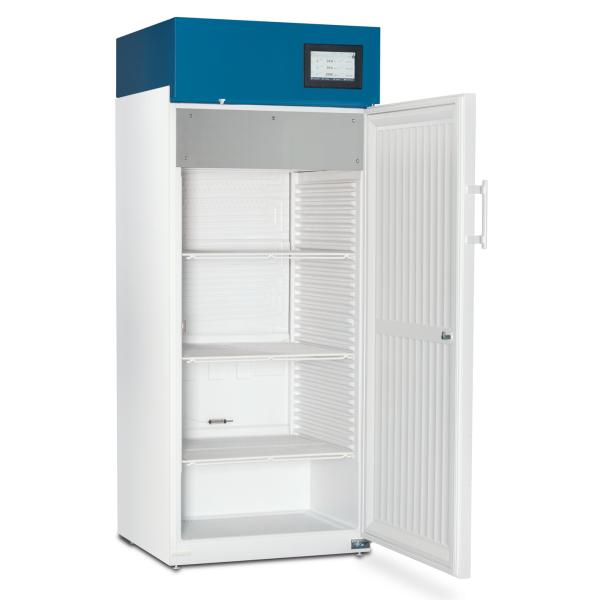

9007528, Omnilab

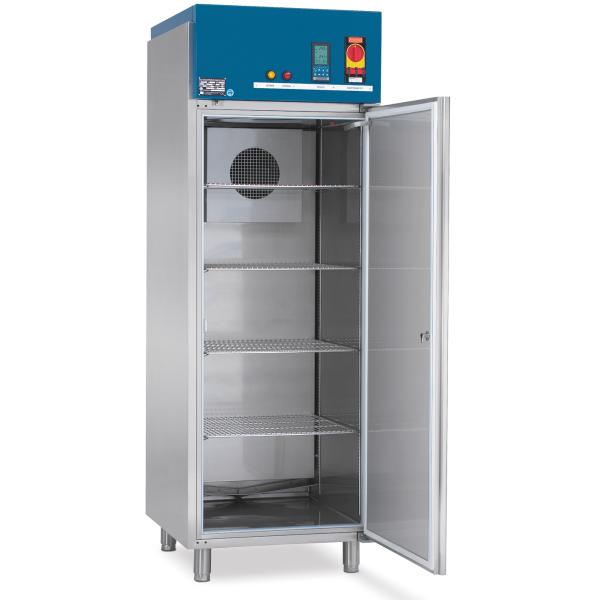

9007531, Omnilab

P1060-00, Omnilab

Extremely high quality, durable and flexible, made of st. steel. Thanks to the variety of options and accessories, the precision test cabinets can be configured almost boundlessly for any kind of climatic test. CONTROL2015 touch One control for everything: intuitive handling, highly precise working, integrated writer, Ethernet. Ultrasonic atomisation The precise and energy-efficient way of humidification. In comparison with the steam humidification, the ultrasonic atomisation avoids an unintended heating of the test room. The humidification by means of an ultrasonic atomiser is considerably more economic regarding energy and water consumption and, in addition, requires only low maintenance, since demineralised water is used. The dehumidification is realised by condensation or freezing of the water vapour contained in the air at a plate heat-exchanger of st. steel in special design. The lighting The right variant for every application. Extremely high quality, durable and flexible, made of st. steel. Thanks to the variety of options and accessories, the precision test cabinets can be configured almost boundlessly for any kind of climatic test. CONTROL2015 touch One control for everything: intuitive handling, highly precise working, integrated writer, Ethernet. Ultrasonic atomisation The precise and energy-efficient way of humidification. In comparison with the steam humidification, the ultrasonic atomisation avoids an unintended heating of the test room. The humidification by means of an ultrasonic atomiser is considerably more economic regarding energy and water consumption and, in addition, requires only low maintenance, since demineralised water is used. The dehumidification is realised by condensation or freezing of the water vapour contained in the air at a plate heat-exchanger of st. steel in special design. The lighting The right variant for every application.

9007673, Omnilab

X0820-00, Omnilab

Working safe with RUMED®: if explosive material is to be tested or if the installation place is exposed to the danger of explosions, the Ex equipment lines ensure highest safety. All units have an ATEX approval for zone 1. 2 executions are available: in the Safety T-Line, the test chamber is explosion-proof, in the Safety X-Line, the entire unit is explosion-proof. Thus, the units of the Safety X-Line can also be used in explosive areas of zone 1, such as in refineries or chemical plants. All units are manufactured from st. steel. Thus, they are resistant to solvents and chemicals. Material and processing guarantee easy handling and durability. The explosion-proof recirculating air fan provides a good temperature distribution in space, as well as quick heating and cooling. If the door had been opened, the initial temperatures will be achieved within the shortest time. Despite these increased safety requirements, the Safety X-Line offers almost the same equipment possibilities as the Safety T-Line. Amongst other things, the approval for installation in the areas of zone 1 is achieved by the intrinsically safe temperature controller and the pressure-proof housing of the switch cabinet and of the drive motor of the refrigerating machine. The units are suitable for storage and tests of material of the temperature classes T1, T2 and T3 of explosion group IIA and IIB. Each unit receives an ATEX approval for zone 1. Complete unit is explosion-proof Ex II 2 G Ex db eb h [ib] ib mb IIB T3 Gb. Working safe with RUMED®: if explosive material is to be tested or if the installation place is exposed to the danger of explosions, the Ex equipment lines ensure highest safety. All units have an ATEX approval for zone 1. 2 executions are available: in the Safety T-Line, the test chamber is explosion-proof, in the Safety X-Line, the entire unit is explosion-proof. Thus, the units of the Safety X-Line can also be used in explosive areas of zone 1, such as in refineries or chemical plants. All units are manufactured from st. steel. Thus, they are resistant to solvents and chemicals. Material and processing guarantee easy handling and durability. The explosion-proof recirculating air fan provides a good temperature distribution in space, as well as quick heating and cooling. If the door had been opened, the initial temperatures will be achieved within the shortest time. Despite these increased safety requirements, the Safety X-Line offers almost the same equipment possibilities as the Safety T-Line. Amongst other things, the approval for installation in the areas of zone 1 is achieved by the intrinsically safe temperature controller and the pressure-proof housing of the switch cabinet and of the drive motor of the refrigerating machine. The units are suitable for storage and tests of material of the temperature classes T1, T2 and T3 of explosion group IIA and IIB. Each unit receives an ATEX approval for zone 1. Complete unit is explosion-proof Ex II 2 G Ex db eb h [ib] ib mb IIB T3 Gb.

9035893, Omnilab

9020-0419, Omnilab

9020-0378, Omnilab

HPP2200eco, Omnilab

Unbeatable in energy efficiency and very long, maintenance free service life. Perfectly suited for stability tests, storage in controlled environment and conditioning. The high precision temperature control from 0 to 70 °C as well as active humidification and dehumidification from 10 to 90 % rh were particularly adapted to the ICH guidelines, option Q1A, for stability tests. The main part of stability testing is performed at temperatures between 20 and 30 °C - close to the ambient temperature. Due to the Peltier technology, only small amounts of energy are required to raise or lower the temperature. The HPPeco has no need for coolants and requires no regular maintenance. Outstanding precision: if required, the Peltier elements can be controlled individually to ensure even more homogenous temperature and humidity distribution inside the chamber. For supporting IQ- / OQ- / PQ validation, temperature and humidity control can be adjusted directly on the ControlCOCKPIT with three freely selectable measuring points. - LED light module for model sizes 110 to 750 (optional): dimmable LED light in 3 alternative colour temperatures (coldwhite or warmwhite light or cold-white plus warm-white light, dimmable in 10 % steps); ensures ideal conditions of growth. - Almost without vibrations and extremely quiet, the specially adapted Peltier technology heats up and cools down seamlessly in one system. - Acc. to DIN 12880:2007-05, EN 61010-1 (IEC 61010-1), 61010-2-010. AtmoCONTROL - control and logging software For direct setting parameters as well as process time. Fast and easy programming of complex processes via AtmoCONTROL by means of the mouse or touchpad on the notebook. - Reading out, managing and organising the data logger. - Saving the log memory in various formats. - Online monitoring of up to 32 connected appliances. - Optical alarms when the alarm limits individually set at the ControlCOCKPIT are exceeded. - Automatic alarm to one or several e-mail addresses. - Intuitive programming and archiving of ramps and programme sequences. - Synchronous visualisation of the created programme sequence during programming. - Application-specific repeat functions (Loops) can be inserted within a temperature control programme in any place. - Simple creation of repeating weekly programmes. - Programming, managing and transferring programmes via Ethernet or USB port. Unbeatable in energy efficiency and very long, maintenance free service life. Perfectly suited for stability tests, storage in controlled environment and conditioning. The high precision temperature control from 0 to 70 °C as well as active humidification and dehumidification from 10 to 90 % rh were particularly adapted to the ICH guidelines, option Q1A, for stability tests. The main part of stability testing is performed at temperatures between 20 and 30 °C - close to the ambient temperature. Due to the Peltier technology, only small amounts of energy are required to raise or lower the temperature. The HPPeco has no need for coolants and requires no regular maintenance. Outstanding precision: if required, the Peltier elements can be controlled individually to ensure even more homogenous temperature and humidity distribution inside the chamber. For supporting IQ- / OQ- / PQ validation, temperature and humidity control can be adjusted directly on the ControlCOCKPIT with three freely selectable measuring points. - LED light module for model sizes 110 to 750 (optional): dimmable LED light in 3 alternative colour temperatures (coldwhite or warmwhite light or cold-white plus warm-white light, dimmable in 10 % steps); ensures ideal conditions of growth. - Almost without vibrations and extremely quiet, the specially adapted Peltier technology heats up and cools down seamlessly in one system. - Acc. to DIN 12880:2007-05, EN 61010-1 (IEC 61010-1), 61010-2-010. AtmoCONTROL - control and logging software For direct setting parameters as well as process time. Fast and easy programming of complex processes via AtmoCONTROL by means of the mouse or touchpad on the notebook. - Reading out, managing and organising the data logger. - Saving the log memory in various formats. - Online monitoring of up to 32 connected appliances. - Optical alarms when the alarm limits individually set at the ControlCOCKPIT are exceeded. - Automatic alarm to one or several e-mail addresses. - Intuitive programming and archiving of ramps and programme sequences. - Synchronous visualisation of the created programme sequence during programming. - Application-specific repeat functions (Loops) can be inserted within a temperature control programme in any place. - Simple creation of repeating weekly programmes. - Programming, managing and transferring programmes via Ethernet or USB port.
