Inverted Microscopes

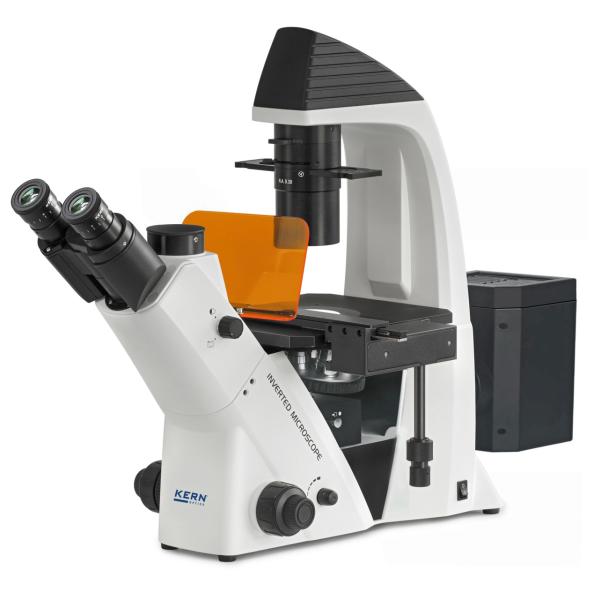

OCM 168, Omnilab

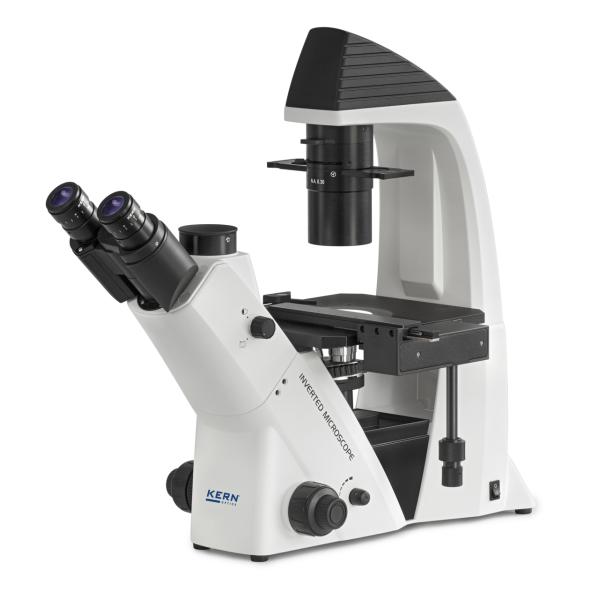

OCM 161, Omnilab

- The OCM range stands out through its design which is ergonomic, robust and extremely stable. This design, with its large working distance, is particularly suitable for the monitoring and analysis of cell cultures, for example. - A strong and infinitely adjustable 30 W halogen illumination unit ensures the optimum illumination in the bright field of your samples. - A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the very best working practise in the bright field and with fluorescence applications. - As standard, the OCM range is fitted with a trinocular eyepiece tube. - The mechanical stage including specimen holder (? 110 mm) means that you can work quickly and effectively. Further brackets for petri dishes are included with delivery or available as accessories. - Further options such as, for example, a selection of eyepieces, objectives, specimen holders and other phase contrast units can be integrated as accessories. - A dust cover as well as user instructions are included with the delivery. - The OCM range stands out through its design which is ergonomic, robust and extremely stable. This design, with its large working distance, is particularly suitable for the monitoring and analysis of cell cultures, for example. - A strong and infinitely adjustable 30 W halogen illumination unit ensures the optimum illumination in the bright field of your samples. - A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the very best working practise in the bright field and with fluorescence applications. - As standard, the OCM range is fitted with a trinocular eyepiece tube. - The mechanical stage including specimen holder (? 110 mm) means that you can work quickly and effectively. Further brackets for petri dishes are included with delivery or available as accessories. - Further options such as, for example, a selection of eyepieces, objectives, specimen holders and other phase contrast units can be integrated as accessories. - A dust cover as well as user instructions are included with the delivery.

OCM 166, Omnilab

1101000200293, Omnilab

OCM 165, Omnilab

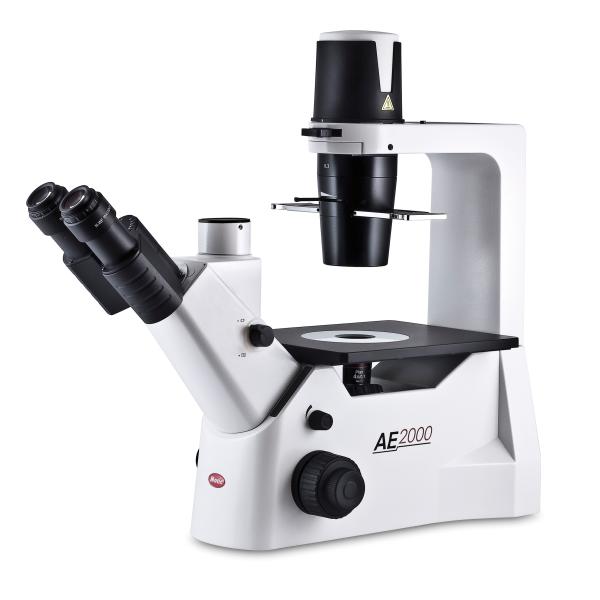

1100103800054, Omnilab

Inverted routine microscope for live cell inspection. - Infinity optics [CCIS®]. - Observation tube binocular - / phototube 45°, F.N. 20. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10 x / 20 mm with dioptre adjustment on both eyepieces. - Side facing quadruple nosepiece. - Objectives CCIS Plan achromat PL 4x, LWD PL 40x. - CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination 6 V / 30 W halogen with intensity control and sleeping mode. - Universal power supply 100 to 240 V (CE). - Optional: phase-contrast 4 x / 40 x, mechanical stage with well plate holder, interchangeable LED module available Items supplied: Ø 45 mm blue, green intereference and neutral density filters with slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover. Inverted routine microscope for live cell inspection. - Infinity optics [CCIS®]. - Observation tube binocular - / phototube 45°, F.N. 20. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10 x / 20 mm with dioptre adjustment on both eyepieces. - Side facing quadruple nosepiece. - Objectives CCIS Plan achromat PL 4x, LWD PL 40x. - CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination 6 V / 30 W halogen with intensity control and sleeping mode. - Universal power supply 100 to 240 V (CE). - Optional: phase-contrast 4 x / 40 x, mechanical stage with well plate holder, interchangeable LED module available Items supplied: Ø 45 mm blue, green intereference and neutral density filters with slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover.

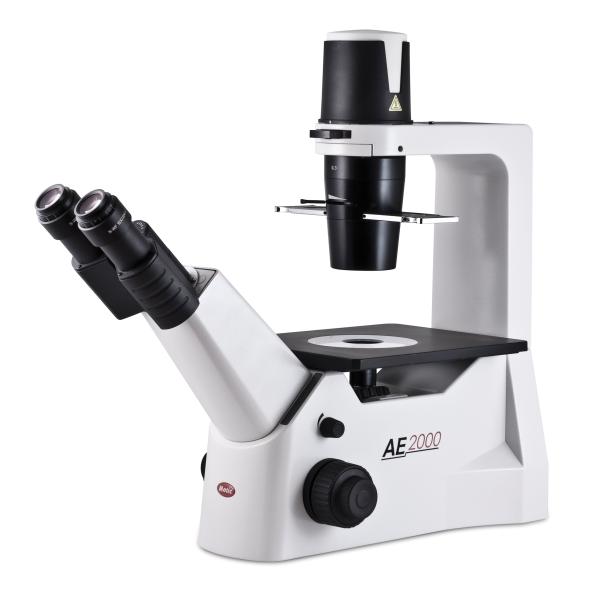

1101000201561, Omnilab

Inverted routine microscope for live cell inspection. - Infinity optics [CCIS®]. - Observation tube binocular - / phototube 45°, F.N. 20. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10 x / 20 mm with dioptre adjustment on both eyepieces. - Side facing quadruple nosepiece. - Objectives CCIS Plan achromat PL 4x, LWD PL 40x. - CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination 6 V / 30 W halogen with intensity control and sleeping mode. - Universal power supply 100 to 240 V (CE). - Optional: phase-contrast 4 x / 40 x, mechanical stage with well plate holder, interchangeable LED module available Items supplied: Ø 45 mm blue, green intereference and neutral density filters with slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover. Inverted routine microscope for live cell inspection. - Infinity optics [CCIS®]. - Observation tube binocular - / phototube 45°, F.N. 20. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10 x / 20 mm with dioptre adjustment on both eyepieces. - Side facing quadruple nosepiece. - Objectives CCIS Plan achromat PL 4x, LWD PL 40x. - CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination 6 V / 30 W halogen with intensity control and sleeping mode. - Universal power supply 100 to 240 V (CE). - Optional: phase-contrast 4 x / 40 x, mechanical stage with well plate holder, interchangeable LED module available Items supplied: Ø 45 mm blue, green intereference and neutral density filters with slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover.

1100103800043, Omnilab

Inverted routine microscope for live cell inspection. - Infinity optics [CCIS®]. - Observation tube binocular - / phototube 45°, F.N. 20. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10 x / 20 mm with dioptre adjustment on both eyepieces. - Side facing quadruple nosepiece. - Objectives CCIS Plan achromat PL 4x, LWD PL 40x. - CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination 6 V / 30 W halogen with intensity control and sleeping mode. - Universal power supply 100 to 240 V (CE). - Optional: phase-contrast 4 x / 40 x, mechanical stage with well plate holder, interchangeable LED module available Items supplied: Ø 45 mm blue, green intereference and neutral density filters with slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover. Inverted routine microscope for live cell inspection. - Infinity optics [CCIS®]. - Observation tube binocular - / phototube 45°, F.N. 20. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10 x / 20 mm with dioptre adjustment on both eyepieces. - Side facing quadruple nosepiece. - Objectives CCIS Plan achromat PL 4x, LWD PL 40x. - CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination 6 V / 30 W halogen with intensity control and sleeping mode. - Universal power supply 100 to 240 V (CE). - Optional: phase-contrast 4 x / 40 x, mechanical stage with well plate holder, interchangeable LED module available Items supplied: Ø 45 mm blue, green intereference and neutral density filters with slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover.

9007344, Omnilab

OCM 167, Omnilab

1100100200576, Omnilab

Inverted clinical and lab microscope for advanced applications. - Infinity optics [CCIS®]. - Observation Tube Trinocular 45° (light split 100:00 / 20:80), F.N. 22. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10x / 22 mm with dioptre adjustment on both eyepieces. - Side facing quintuple nosepiece. - Objectives CCIS Plan achromat PL 4x, CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x, LWD PL Ph40x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination: externally mounted lamp house, Koehler 6 V / 30 W Quartz halogen with intensity control. - Auto-off and light-memory function when changing the magnification. - Universal power supply 100 to 240 V (CE). - Optionally available: mechanical stage with well plate holder, Epi-Fluorescence, binocular version, interchangeable LED module. Items supplied: - Ø 45 mm blue, green intereference and ground glass filters, centering telescope power cord, Allen hexagonal key, vinyl dust cover. Inverted clinical and lab microscope for advanced applications. - Infinity optics [CCIS®]. - Observation Tube Trinocular 45° (light split 100:00 / 20:80), F.N. 22. - Interpupillary distance 48 to 75 mm. - Eyepieces high-eyepoint N-WF 10x / 22 mm with dioptre adjustment on both eyepieces. - Side facing quintuple nosepiece. - Objectives CCIS Plan achromat PL 4x, CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x, LWD PL Ph40x. - Plain stage 200 x 239 mm surface with metal and glass stage inserts. - Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF). - Illumination: externally mounted lamp house, Koehler 6 V / 30 W Quartz halogen with intensity control. - Auto-off and light-memory function when changing the magnification. - Universal power supply 100 to 240 V (CE). - Optionally available: mechanical stage with well plate holder, Epi-Fluorescence, binocular version, interchangeable LED module. Items supplied: - Ø 45 mm blue, green intereference and ground glass filters, centering telescope power cord, Allen hexagonal key, vinyl dust cover.
