Ion Exchange Cartridges

9034498, Omnilab

11170500, Omnilab

9034941, Omnilab

11175000, Omnilab

12400000, Omnilab

12700000, Omnilab

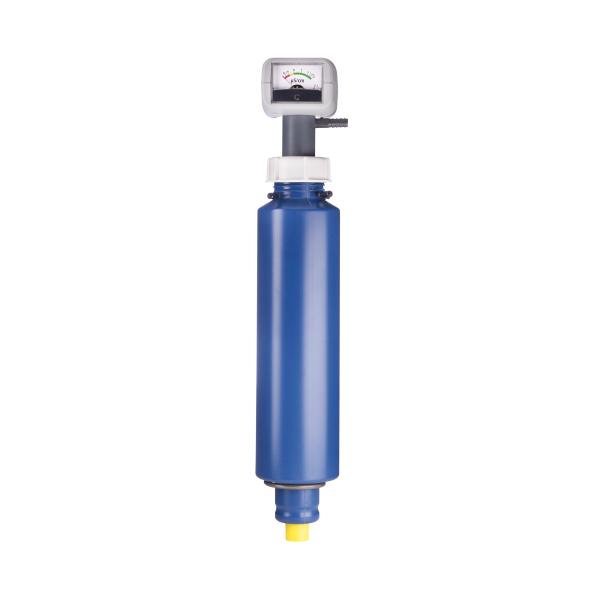

11042500, Omnilab

W3T198029, Omnilab

SG-6200-SK Deionizer 40 Liter Resin volume Mixed bed deionizer with quick coupling (SK) Mixed bed resin ion exchangers are used to generate demineralized water. These high-quality stainless steel ion exchangers (1.4571) can be operated with a working pressure of max. 10 bar. Our optimized channel flow ensures superior resin bed usage. Technical data: Connections cartridge: Quick connect coupler DN 10 Nominal capacity: 6200 l up to 20µS/cm at 10°dH total salt content Perm. water temp. max.: 40°C Max. flow rate: 1000 l/h Resin charge: 40 l Max. pressure: 10 bar Diameter: 230 mm Tank height: 1025 mm Conductivity meters and tubing (or electrodes) are available separately. SG-6200-SK Deionizer 40 Liter Resin volume Mixed bed deionizer with quick coupling (SK) Mixed bed resin ion exchangers are used to generate demineralized water. These high-quality stainless steel ion exchangers (1.4571) can be operated with a working pressure of max. 10 bar. Our optimized channel flow ensures superior resin bed usage. Technical data: Connections cartridge: Quick connect coupler DN 10 Nominal capacity: 6200 l up to 20µS/cm at 10°dH total salt content Perm. water temp. max.: 40°C Max. flow rate: 1000 l/h Resin charge: 40 l Max. pressure: 10 bar Diameter: 230 mm Tank height: 1025 mm Conductivity meters and tubing (or electrodes) are available separately.

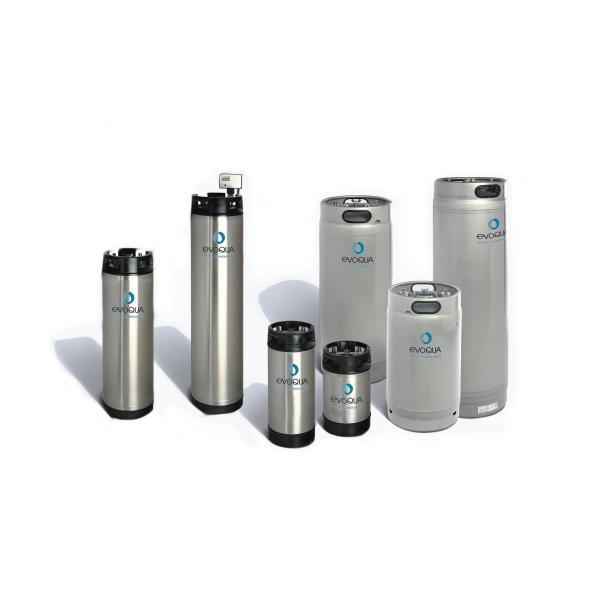

W3T199736, Omnilab

SG-4500-SK Deionizer 30 Liter Resin volume Mixed bed deionizer with quick coupling (SK) Mixed bed resin ion exchangers are used to generate demineralized water. These high-quality stainless steel ion exchangers (1.4571) can be operated with a working pressure of max. 10 bar. Our optimized channel flow ensures superior resin bed usage. Technical data: Connections cartridge: Quick connect coupler DN 10 Nominal capacity: 4500 l up to 20µS/cm at 10°dH total salt content Perm. water temp. max.: 40°C Max. flow rate: 1000 l/h Resin charge: 30 l Max. pressure: 10 bar Diameter: 230 mm Tank height: 785 mm Conductivity meters and tubing (or electrodes) are available separately. SG-4500-SK Deionizer 30 Liter Resin volume Mixed bed deionizer with quick coupling (SK) Mixed bed resin ion exchangers are used to generate demineralized water. These high-quality stainless steel ion exchangers (1.4571) can be operated with a working pressure of max. 10 bar. Our optimized channel flow ensures superior resin bed usage. Technical data: Connections cartridge: Quick connect coupler DN 10 Nominal capacity: 4500 l up to 20µS/cm at 10°dH total salt content Perm. water temp. max.: 40°C Max. flow rate: 1000 l/h Resin charge: 30 l Max. pressure: 10 bar Diameter: 230 mm Tank height: 785 mm Conductivity meters and tubing (or electrodes) are available separately.

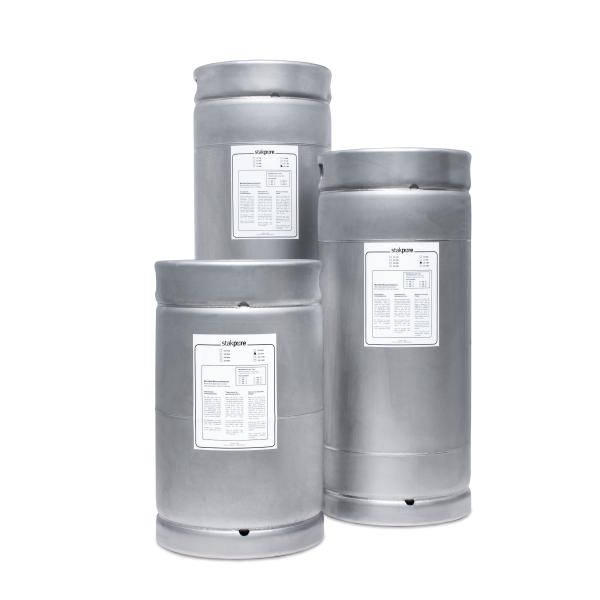

12110000, Omnilab

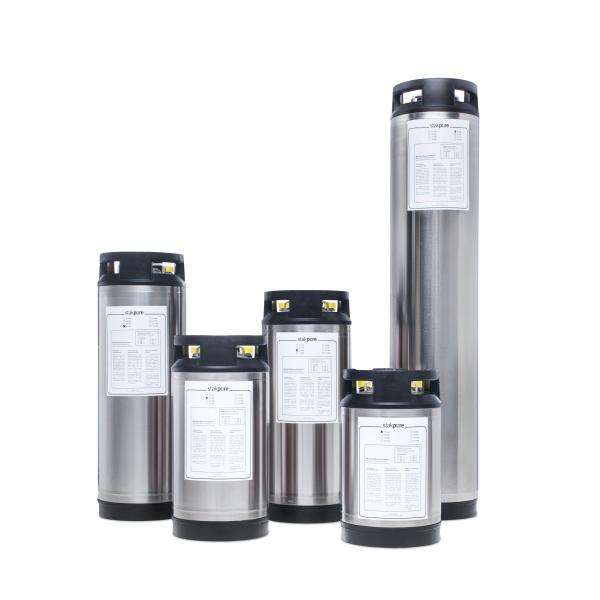

12600000, Omnilab

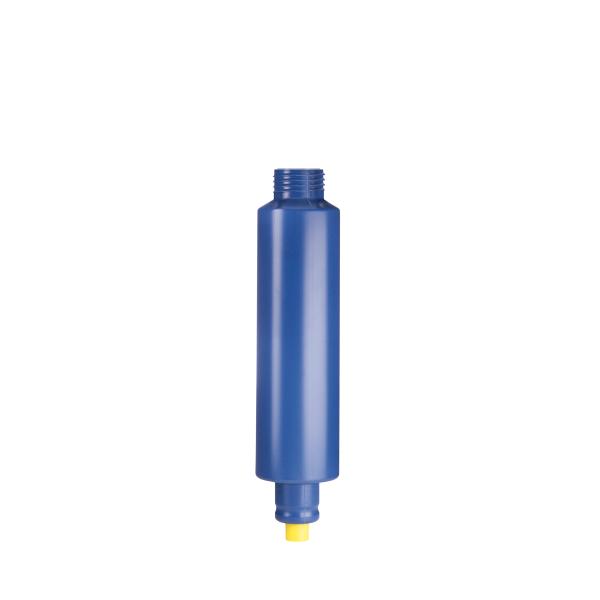

11042700, Omnilab
