Vacuum Measurement- & Control Devices

22614120, Omnilab

307757, Omnilab

9034880, Omnilab

307758, Omnilab

20677208, Omnilab

20677107, Omnilab

20677106, Omnilab

20683170, Omnilab

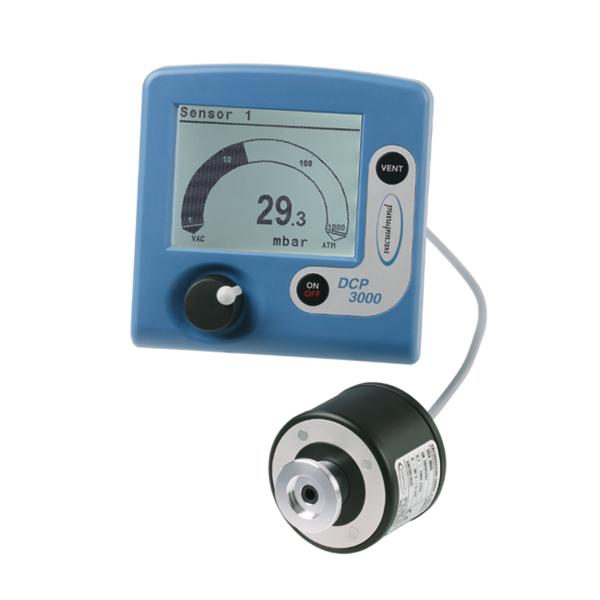

The DCP 3000 is a fully electronic vacuum gauge for the wide range from 1080 to 0.1 mbar (over 4 orders of magnitude) with external, capacitive pressure transducer made of alumina ceramic for outstanding corrosion resistance and superior long-term stability. The separate transducer can be directly mounted to the system. The vacuum gauge offers the possibility to connect up to 4 external transducers and an air admittance valve. The easy use and the combined digital / analogue display for fast and clear trend indication make the DCP 3000 a very versatile vacuum gauge. High demands concerning measurement accuracy, safety and environmental protection are fulfilled. - Outstanding precision by capacitive anti-corrosion pressure transducer. - Measuring on the spot due to its outstanding corrosion resistance. - Connection of up to 8 external gauge heads possible (4 VSK 3000 and 4 VSP 3000). - Large illuminated display with analogue and digital reading of measured value. - Venting at the touch of a button with external air admittance valve (accessory). - Interactive communication via serial interface RS 232C. - Data logger feature with up to 32000 values. Accessories: External gauge head VSK 3000 (1 piece included on the gauge). Air admittance valve VBM-B. The DCP 3000 is a fully electronic vacuum gauge for the wide range from 1080 to 0.1 mbar (over 4 orders of magnitude) with external, capacitive pressure transducer made of alumina ceramic for outstanding corrosion resistance and superior long-term stability. The separate transducer can be directly mounted to the system. The vacuum gauge offers the possibility to connect up to 4 external transducers and an air admittance valve. The easy use and the combined digital / analogue display for fast and clear trend indication make the DCP 3000 a very versatile vacuum gauge. High demands concerning measurement accuracy, safety and environmental protection are fulfilled. - Outstanding precision by capacitive anti-corrosion pressure transducer. - Measuring on the spot due to its outstanding corrosion resistance. - Connection of up to 8 external gauge heads possible (4 VSK 3000 and 4 VSP 3000). - Large illuminated display with analogue and digital reading of measured value. - Venting at the touch of a button with external air admittance valve (accessory). - Interactive communication via serial interface RS 232C. - Data logger feature with up to 32000 values. Accessories: External gauge head VSK 3000 (1 piece included on the gauge). Air admittance valve VBM-B.

20639223, Omnilab

20700070, Omnilab

20683220, Omnilab

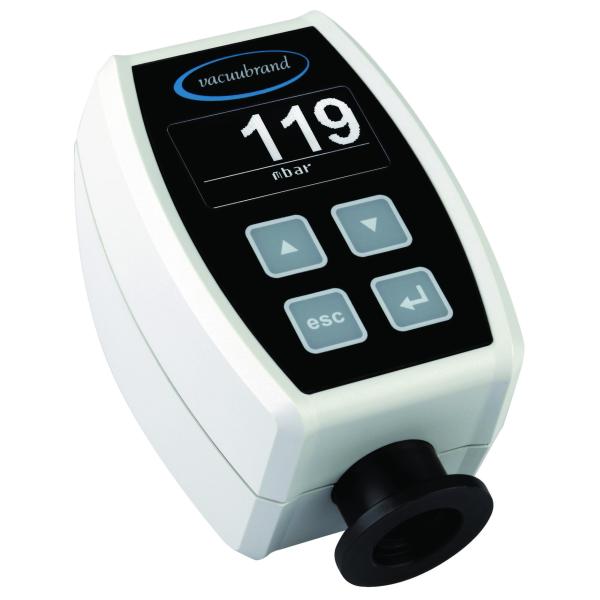

Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout. - Highest precision and chemical resistance in the range from atmosphere down to 0.1 mbar. - Ideal gauge for all rough vacuum applications. Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout. - Highest precision and chemical resistance in the range from atmosphere down to 0.1 mbar. - Ideal gauge for all rough vacuum applications.

20636163, Omnilab

Espeacially for measurements in the range of fine vacuum (1 to 10-3 mbar). - Very high chemical resistance. - Mechanically robust against gas splicing and splash-proof in rough ambient conditions. - Simple optical control and easy cleaning of precipitation. - Sensor cable: VACUU.BUS® 2 m. Espeacially for measurements in the range of fine vacuum (1 to 10-3 mbar). - Very high chemical resistance. - Mechanically robust against gas splicing and splash-proof in rough ambient conditions. - Simple optical control and easy cleaning of precipitation. - Sensor cable: VACUU.BUS® 2 m.
