Water Jet Filter Pumps

159668, Omnilab

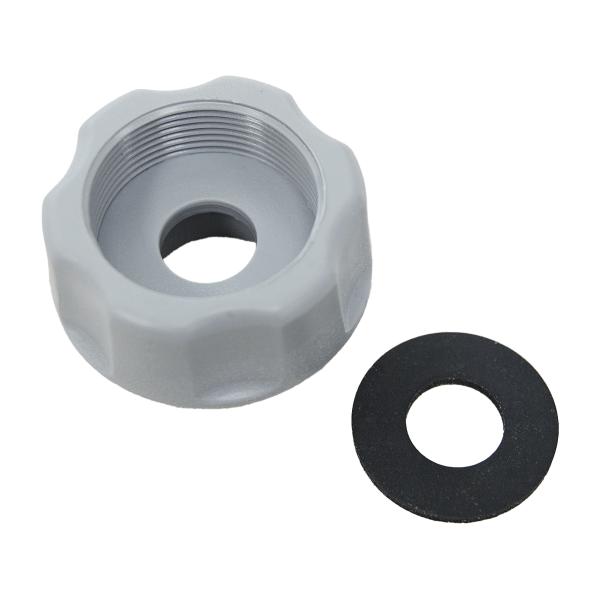

9668-0011, Omnilab

Reducing piece for aerator thread. Reducing piece for aerator thread.

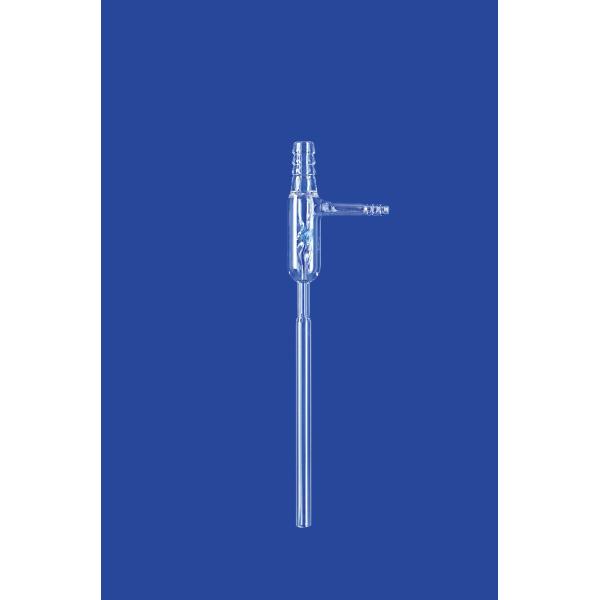

5 5800 03, Omnilab

Made of Boro 3.3. With spiral ejector. For high efficiency. Water flow rate approx. 10 l / min. Made of Boro 3.3. With spiral ejector. For high efficiency. Water flow rate approx. 10 l / min.

159670, Omnilab

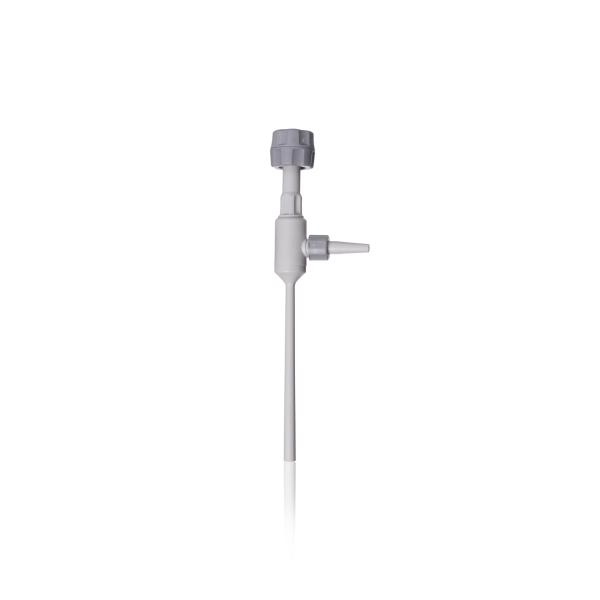

292500101, Omnilab

A water jet pump is used for vacuum generation using water.– Throughput: 400 l/h at 3.5 bar water pressure und 12 °C water temperature – Connection to a water-based supply system possible (filtration due to water pressure) – Hose connection and adapters for 1/2" and 3/4" – From plastic (PP) – A water jet pump is used for vacuum generation using water.– Throughput: 400 l/h at 3.5 bar water pressure und 12 °C water temperature – Connection to a water-based supply system possible (filtration due to water pressure) – Hose connection and adapters for 1/2" and 3/4" – From plastic (PP) –

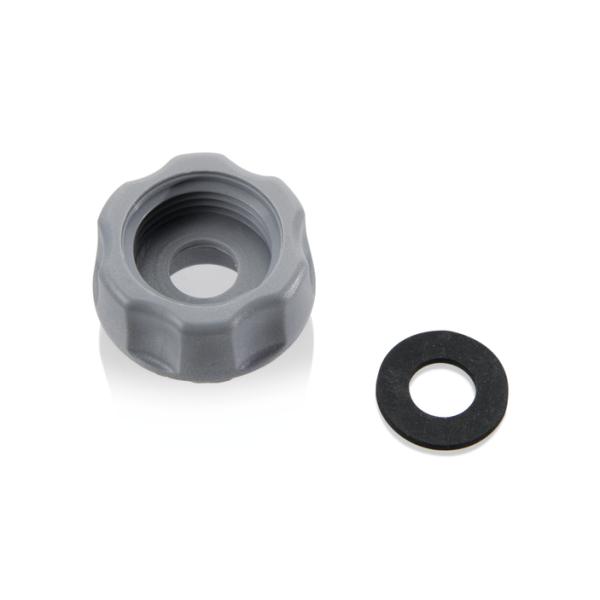

159665, Omnilab

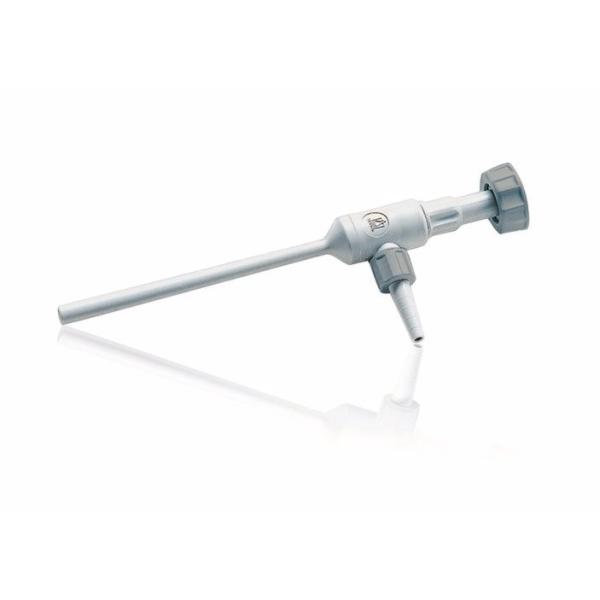

159600, Omnilab

PP. Very low water consumption and high suction capacity. Can be connected to mains supply in several ways with the adapters supplied. Operating temperature up to max. 80 °C. Good chemical resistance, fluid path consists of polypropylene, FKM and PTFE. Integrated non-return valve increases safety. - Pump fluid: water. - Overall length: approx. 210 mm (R 3/4'' connector fitted). - Weight: approx. 33 g (R 3/4'' connector fitted). Items supplied: Water jet filter pumps includes: - Water connection: sleeve nut R 3/4'', reducing adapter R 1/2'', and tubing connector (hose nozzle) of 10 to 12 mm outer Ø. - Suction line connection: detachable hose nozzle of 6 to 9 mm outer Ø, with screw cap GL 14. Performance data at 3.5 bar water flow pressure and 12 °C water temperature: - Water consumption: 220 l / h. - Ultimate pressure: 16 mbar. - Suction capacity against atmospheric pressure: 450 l / h of air. PP. Very low water consumption and high suction capacity. Can be connected to mains supply in several ways with the adapters supplied. Operating temperature up to max. 80 °C. Good chemical resistance, fluid path consists of polypropylene, FKM and PTFE. Integrated non-return valve increases safety. - Pump fluid: water. - Overall length: approx. 210 mm (R 3/4'' connector fitted). - Weight: approx. 33 g (R 3/4'' connector fitted). Items supplied: Water jet filter pumps includes: - Water connection: sleeve nut R 3/4'', reducing adapter R 1/2'', and tubing connector (hose nozzle) of 10 to 12 mm outer Ø. - Suction line connection: detachable hose nozzle of 6 to 9 mm outer Ø, with screw cap GL 14. Performance data at 3.5 bar water flow pressure and 12 °C water temperature: - Water consumption: 220 l / h. - Ultimate pressure: 16 mbar. - Suction capacity against atmospheric pressure: 450 l / h of air.

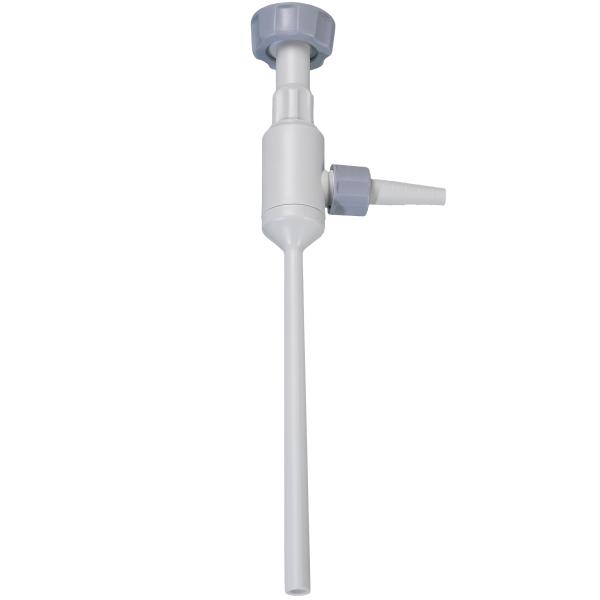

9668-0200, Omnilab

The water jet pump is used for withdrawing liquids and gases, and for creating a vacuum. The water jet pump is used for withdrawing liquids and gases, and for creating a vacuum.

9036582, Omnilab

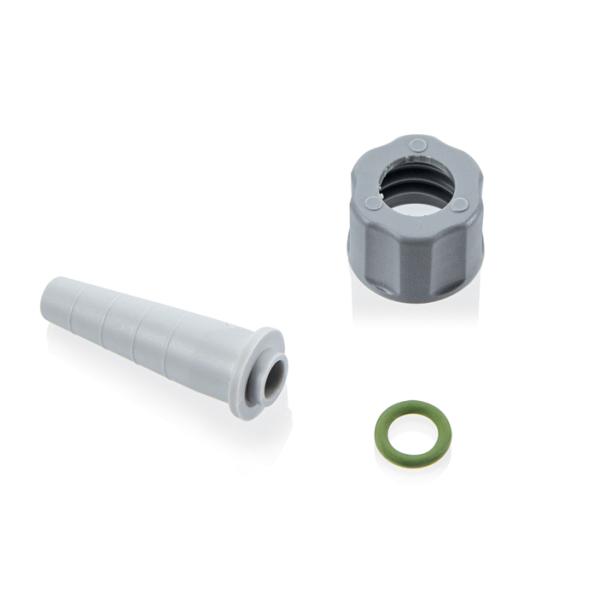

159669, Omnilab

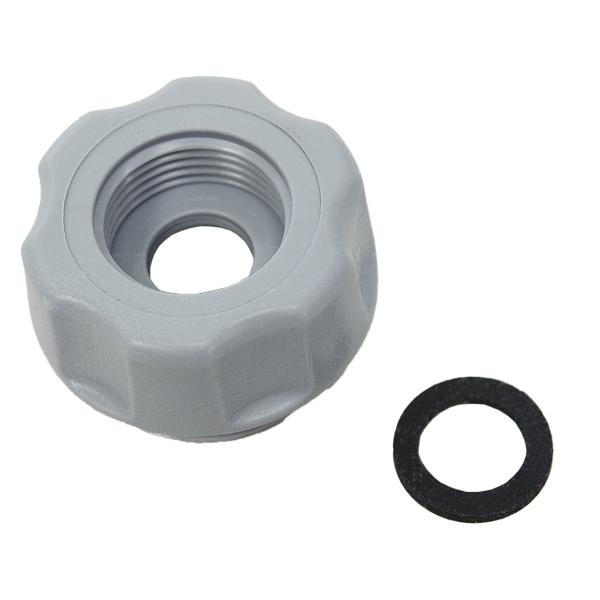

9668-0010, Omnilab

Reducing piece for aerator thread. Reducing piece for aerator thread.

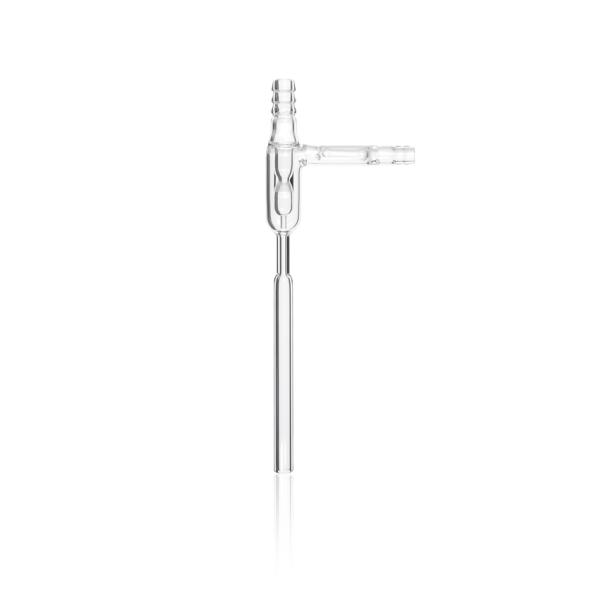

243629903, Omnilab

A water jet pump is used for vacuum generation using water.– Connection to a water-based supply system possible (filtration due to water pressure) – With non-return valve – – – A water jet pump is used for vacuum generation using water.– Connection to a water-based supply system possible (filtration due to water pressure) – With non-return valve – – –
