Safety burners

EX07.1, Wld-Tec

Accessories gas safety adapter for cartridges With integrated pressure reducer, stop cock and DVGW hose, length 0.5 m.

AN84.1, Wld-Tec

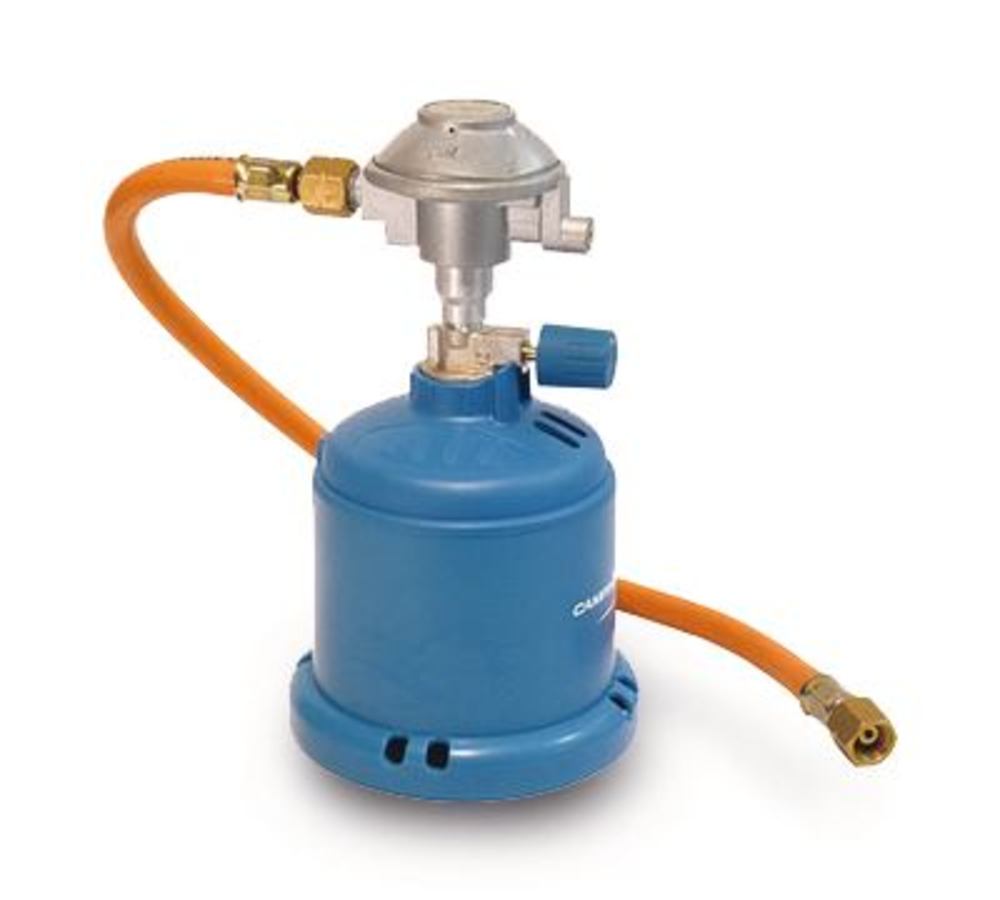

Accessories gas safety adapter for cartridges With integrated pressure reducer, stop cock and DVGW hose, length 0.5 m.

AN85.1, Wld-Tec

Accessories gas safety adapter for cartridges With integrated pressure reducer, stop cock and DVGW hose, length 0.5 m.

YP70.1, Wld-Tec

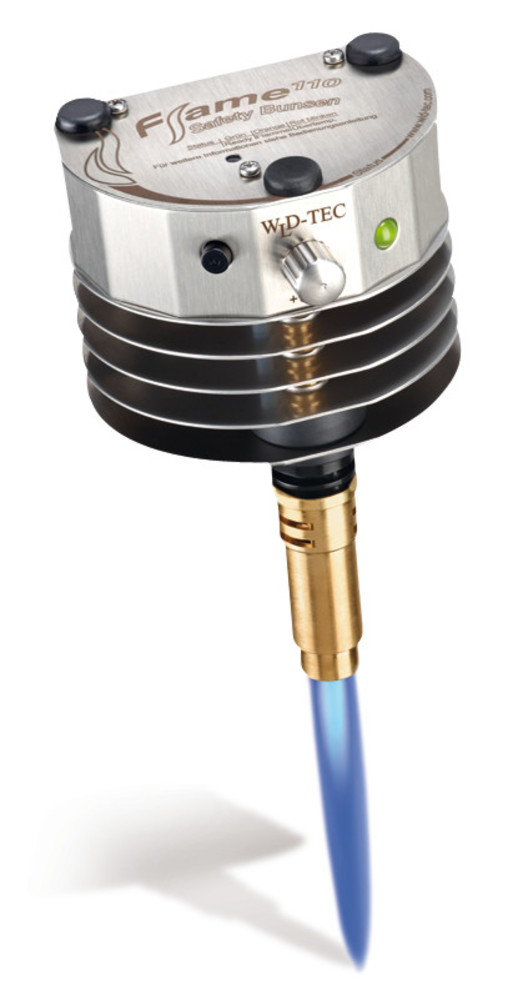

Heats dental tools, sterilises microbiological instruments or flame deburred/flame polished plastic and rubber mouldings in an industrial environment. Variable flame from any direction – even upside down (depending on positioning) Operating modes : Key function : flame is started and stopped by actuating the function button IR sensor: contactless On/Off of the flame via IR sensor or the flame extinguishes after a preselected time (1 s to 120 min) Foot-switch control : flame burns until the foot-switch is pressed or start/stop with automatic switch-off (1 s to 120 min) With gas safety shutoff and overtemperature protection Can be operated using optional foot-switch or external IR motion sensor. If required, please order separately Overhead gas burners Flame 110 Delivery incl. fixing plate for overhead attachment and 100 to 240 V power supply, 50/60 Hz. Without gas adapter and cartridge (please order separately).

HA64.1, Wld-Tec

Ideal for heating, burning-off and annealing as well as for use in microbiological safety workbenches. Foot-switch control: flame burns until the foot-switch is pressed or start/stop with automatic switch-off (up to 60 min) Additionally with button function: flame is started and stopped by pressing the function button Casing/control elements made of stainless steel and glass, UV and solvent proof Removable and dismountable burner head Can be tilted left or right Continuous cartridge operation: 40 min with CV 360, 170 min with C 206, 370 min with CV 470, 150 min with CG 1750 Safety equipment with gas safety shutoff: ignition, flame and temperature monitoring, contamination and installation monitoring, automatic unit switch-off and residual heat display Ideal for natural, propane or butane gas. If cartridges are required, please order gas adapter and cartridge separately Gas safety burner Fuego SCS basic Delivery incl. foot-switch, variable power supply (100 to 240 V, 50/60 Hz), hose nozzle with union nut, inoculation loop holder and nozzles for natural gas, propane / butane gas.

AN82.1, Wld-Tec

Space-saving laboratory gas burner for microbiology, cell biology and biotechnology. Features: 5 operating modes : Key function: flame is started and stopped by actuating the function button, or the flame extinguishes after a preselected time IR sensor: contactless On/Off of the flame via IR sensor or the flame extinguishes after a preselected time (1 s to 60 min) or auto-off with teach function (1 s to 60 min) Foot-switch control: flame burns until the foot-switch is pressed or start/stop with automatic switch-off (1 s to 60 min) Stainless steel housing and operating elements Operation either with natural gas or propane/butane gas Tilt adjustment left/right Continuous cartridge operation: 45 min with CV 360, 170 min with C 206, 345 min with CV 470 plus Removable burner head Gas safety burner Gasprofi 1 SCS micro Delivery incl. stainless steel foot-switch, IR sensor, nozzles for natural gas, propane/butane gas, hose connector with union nut and plug-in power supply. If cartridges are required, please order gas adapter and cartridge separately.

TA03.1, Schuett

Accessories gas safety adapter for cartridges With integrated pressure reducer and 0.5 m safety gas hose.

EX06.1, Wld-Tec

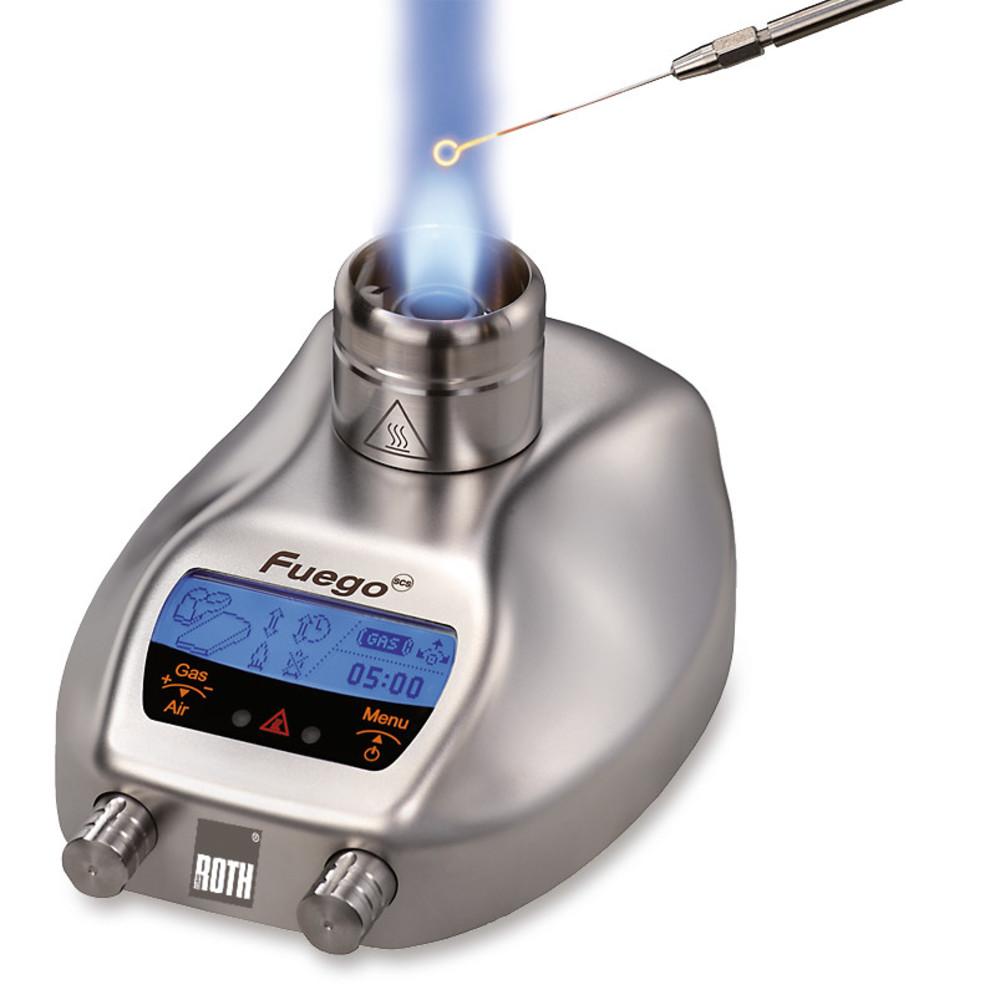

Ideal for heating, burning-off and annealing as well as for use in microbiological safety workbenches. Animated graphic display with buzzer: installation and operating instructions with symbols, user ID, gas consumption display and cooling time reminder Casing/control elements made of stainless steel and glass, UV and solvent proof Programme with firing time display for double-click IR sensor (switchable), button, foot pedal and temperature control for precise heating of media. Operating modes: Key function : flame is started and stopped by actuating the function button, or the flame extinguishes after a preselected time IR sensor : contactless On/Off of the flame via IR sensor or the flame extinguishes after a preselected time (1 s to 120 min) or auto-off with teach function (1 s to 120 min) Foot-switch control : flame burns until the foot-switch is pressed or start/stop with automatic switch-off (1 s to 120 min) Safety equipment with gas safety shutoff: ignition, flame and temperature monitoring, contamination and installation monitoring, automatic unit switch-off and residual heat display Zero-pressure shutoff: for releasing residual gas pressure after use Angle adjustment and removable burner head Ideal for natural, propane or butane gas. If cartridges are required, please order gas adapter and cartridge separately Gas safety burner Fuego series model Fuego SCS Delivery incl. IR sensor, inoculation loop holder plug-in power supply and nozzles for natural gas, propane / butane gas. Without foot switch (if required, please order separately).

HY19.1, Wld-Tec

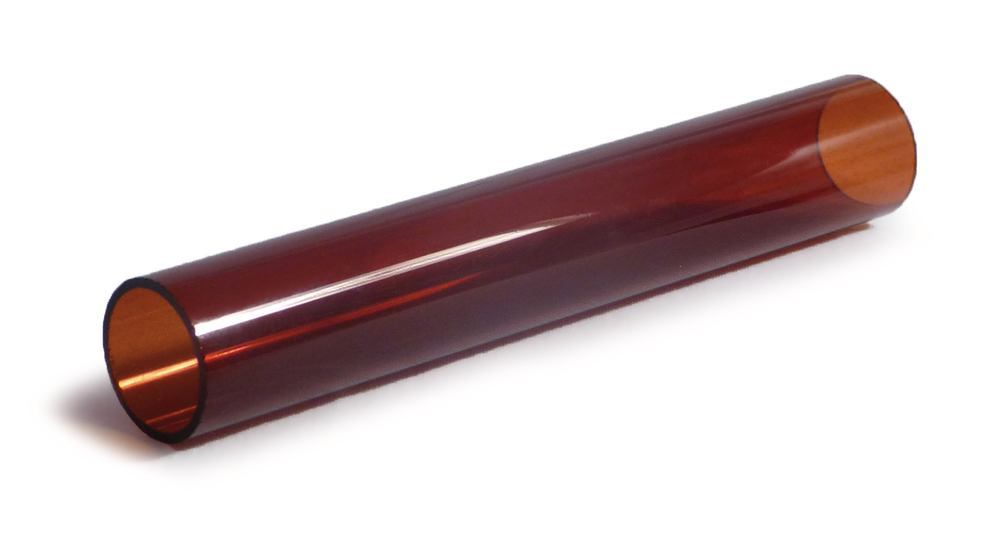

For safe handling of pathogenic material, protected. Accessories splash guard for auto loop PRO

ACN8.1, Wld-Tec

AN88.1, Wld-Tec

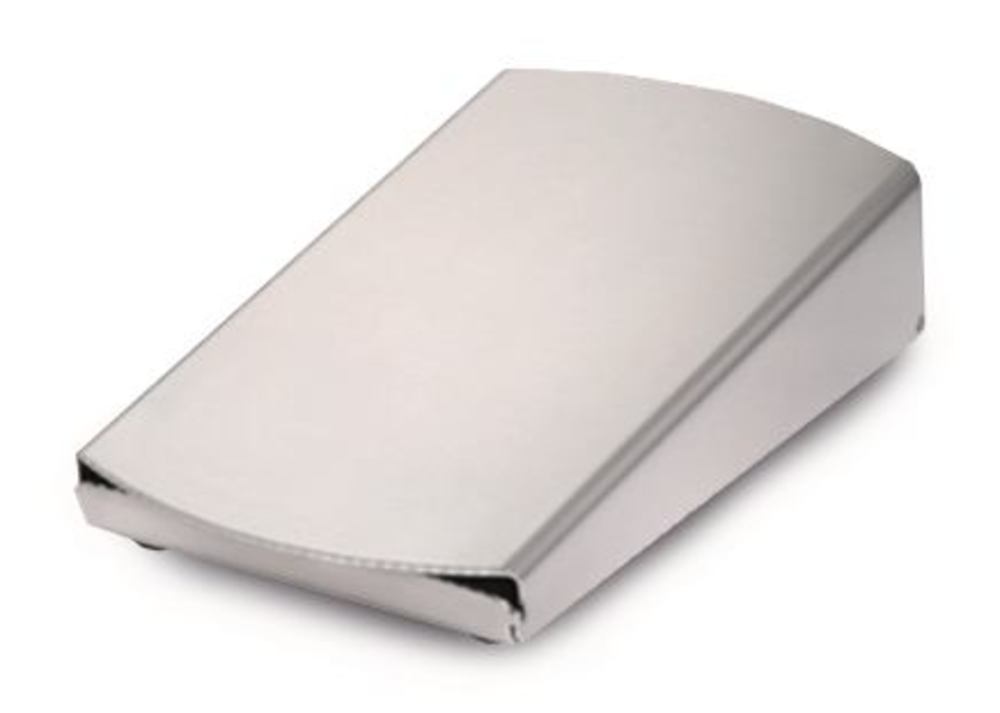

Accessories standard foot switch for gas safety burners Standard foot switch made of stainless steel. Cable length 3 m.

LH88.1, Wld-Tec

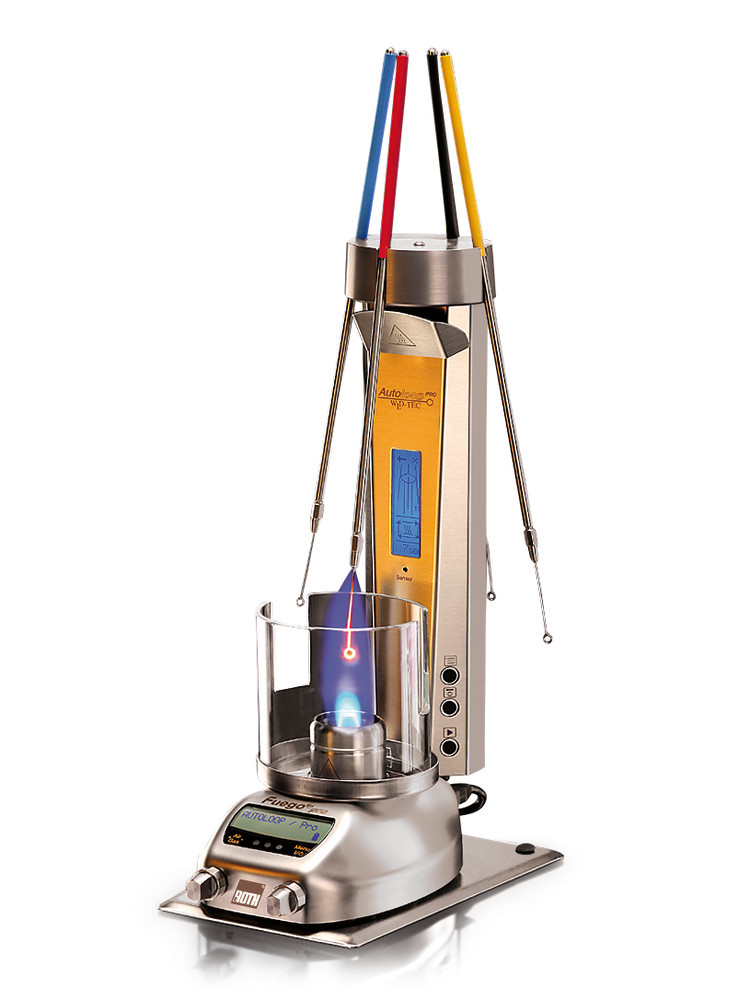

Allows removal of the safety laboratory burner from the Fuego SCS series for sterilisation stations. The microprocessor-controlled carousel detects removed and returned inoculation loops, rotates and control the sterilisation fully automatically. For up to 4 inoculation loop. Features: Fully graphic DOT matrix display to show the pone of removal of cool inoculation loops, the remaining cooling time, residual heating and flame sterilisation time Settable annealing time: 1 to 15 s, adjustable cooling time: 1 to 45 s Completely made of stainless steel and anodised aluminium. The display is protected with special glass With sterilisation monitor for monitoring the safe sterilisation of the inoculation loops. A symbol indicates whether he inoculation loops have been annealed properly. Sensor intensity adjustable on 3 levels (low to high annealing intensity selectable for thin to thick inoculation loop wires) Overtemperature protection and residual heat indicator Dimensions: W 135 mm x H 305 mm x D 180 mmm Voltage supply via the foot pedal of the burner Fully automatic inoculation loop carousel auto loop PRO Delivery incl. 4 inoculation loop holders, 4 inoculation loops and stand. To operate the carousel for inoculation loops, the safety laboratory gas burner from the Fuego SCS series is requirement if not present, order separately).
