Removable shelf kit : 1 removable shelf with 2 mounting clips Accessories removable shelf kit for Heratherm™ drying cabinets
Product Detail

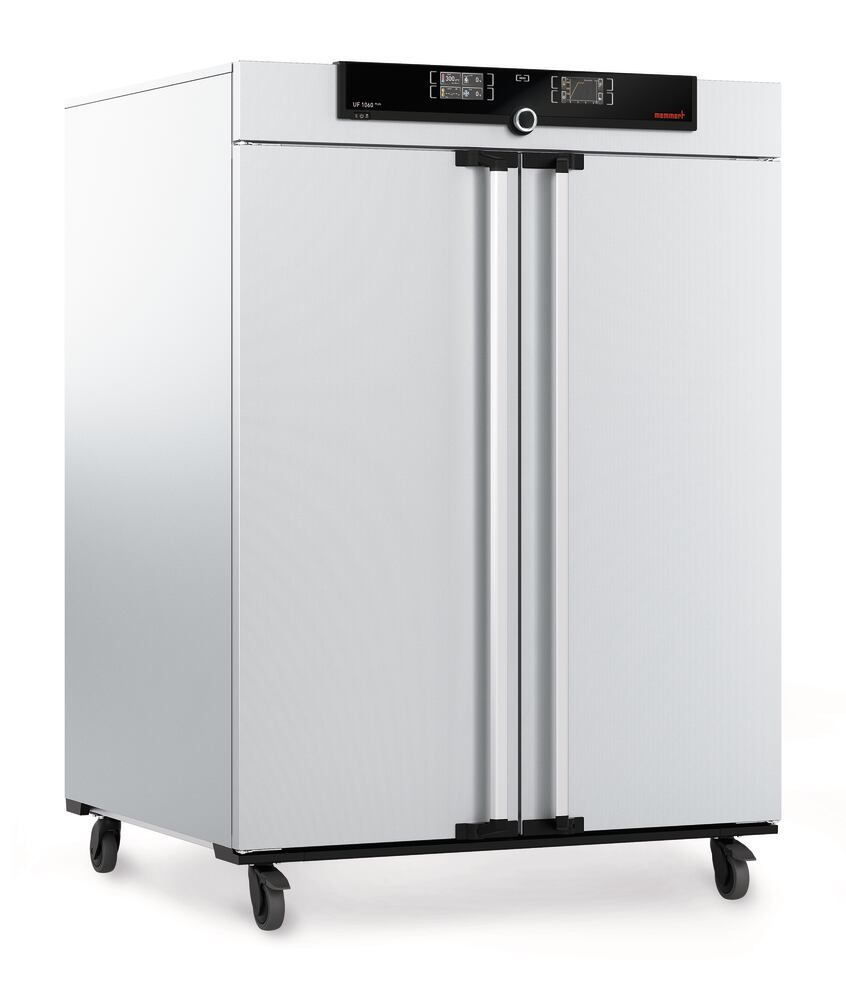

Models: UN, UNplus, UF and UFplus General features: Stainless steel interior (1.4301) Fully insulated stainless steel door (two-wing from size 450 upwards) Fresh air supply by electronically adjustable exhaust air flap Textured stainless steel housing Model sizes 450 and 750 with moveable and lockable rollers Interior depth minus 39 mm for devices with forced air circulation Depth plus door handle 56 mm Incl. factory calibration certificate valid for +160 °C Power supply for models 30 to 260: 230 V, 50/60 Hz, power supply for models 450 and 750: 400 V and 3 x 220 V, n/a 50/60 Hz Other features: German, English, French and Spanish language options Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation “SetpointWAIT” function - process time does not start until the target temperature is reached Drying cabinet Models: UFplus with forced air circulation (fan) Operating temperature range from 10 °C above room temperature to 300 °C Setting temperature from 20 to 300 °C Setting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K Two graphical TFT displays with touchscreen for operation and displaying temperature, program runtime, air damper position and graphical display of programme flow Integrated data logger with 10-year memory Display of recorded log data (max. 10,000 values correspond to approx. 1 week) directly on the device Application-specific correction of the heat output distribution between the upper and lower heating groups within an adjustment range from -50% to +50% With Ethernet communication port for reading out log data as well as for transmitting and launching programs and online logging Definition of individual min./max. values for protection against excessive/insufficient temperatures USB port for installing programs and reading out the data logger incl. software (to create ramp programs and weekly programs) Quiet air turbine for air circulation mode (air turbine can be controlled and switched off) Delivery incl. stainless steel grating (models 30 and 55: 1 grate, models 75 to 750: 2 grates). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Product Detail

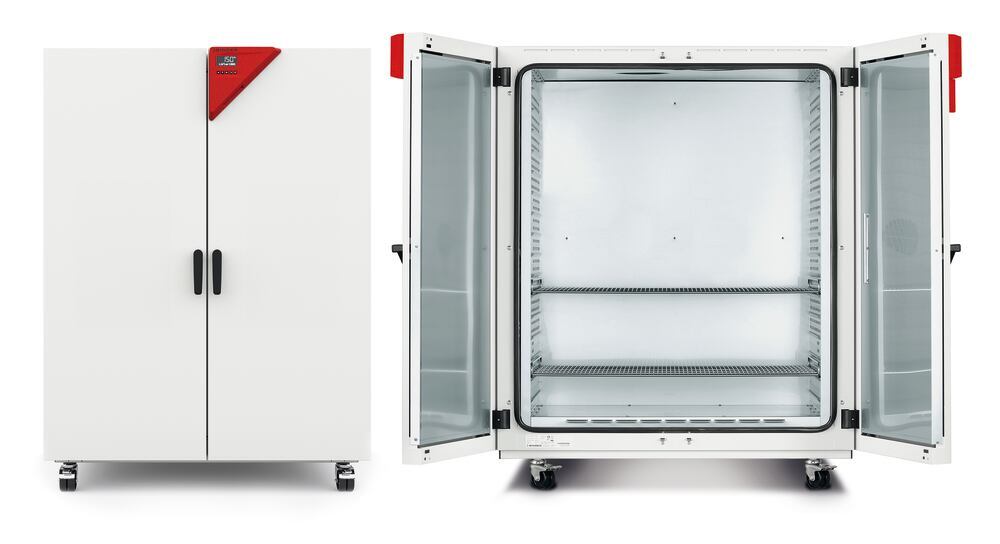

Operating temperature from 15 °C above room temperature to 300 °C Setting temperature from 30 to 300 °C; setting accuracy: ±1 °C Adjustable air exchange and rear exhaust air pipe Ø 50 mm Models with volumes of 400 l or more come with a double-leaf door With integrated timer with range from 0 to 99 h Power supply for models 23 to 260: 230 V, 50/60 Hz Power supply for models 400 and 720: 400 V, 50/60 Hz.3 N ~ Drying cabinet Models: FD with ventilator With forced air circulation (fan) . Fan speed cannot be controlled or switched off. Additional USB port for recording data with models FD 56, FD 115 and FD 260. Delivery incl. 2 chrome-plated grates.
Product Detail
Models: UN, UNplus, UF and UFplus General features: Stainless steel interior (1.4301) Fully insulated stainless steel door (two-wing from size 450 upwards) Fresh air supply by electronically adjustable exhaust air flap Textured stainless steel housing Model sizes 450 and 750 with moveable and lockable rollers Interior depth minus 39 mm for devices with forced air circulation Depth plus door handle 56 mm Incl. factory calibration certificate valid for +160 °C Power supply for models 30 to 260: 230 V, 50/60 Hz, power supply for models 450 and 750: 400 V and 3 x 220 V, n/a 50/60 Hz Other features: German, English, French and Spanish language options Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation “SetpointWAIT” function - process time does not start until the target temperature is reached Drying cabinet Models: UFplus with forced air circulation (fan) Operating temperature range from 10 °C above room temperature to 300 °C Setting temperature from 20 to 300 °C Setting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K Two graphical TFT displays with touchscreen for operation and displaying temperature, program runtime, air damper position and graphical display of programme flow Integrated data logger with 10-year memory Display of recorded log data (max. 10,000 values correspond to approx. 1 week) directly on the device Application-specific correction of the heat output distribution between the upper and lower heating groups within an adjustment range from -50% to +50% With Ethernet communication port for reading out log data as well as for transmitting and launching programs and online logging Definition of individual min./max. values for protection against excessive/insufficient temperatures USB port for installing programs and reading out the data logger incl. software (to create ramp programs and weekly programs) Quiet air turbine for air circulation mode (air turbine can be controlled and switched off) Delivery incl. stainless steel grating (models 30 and 55: 1 grate, models 75 to 750: 2 grates). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Product Detail

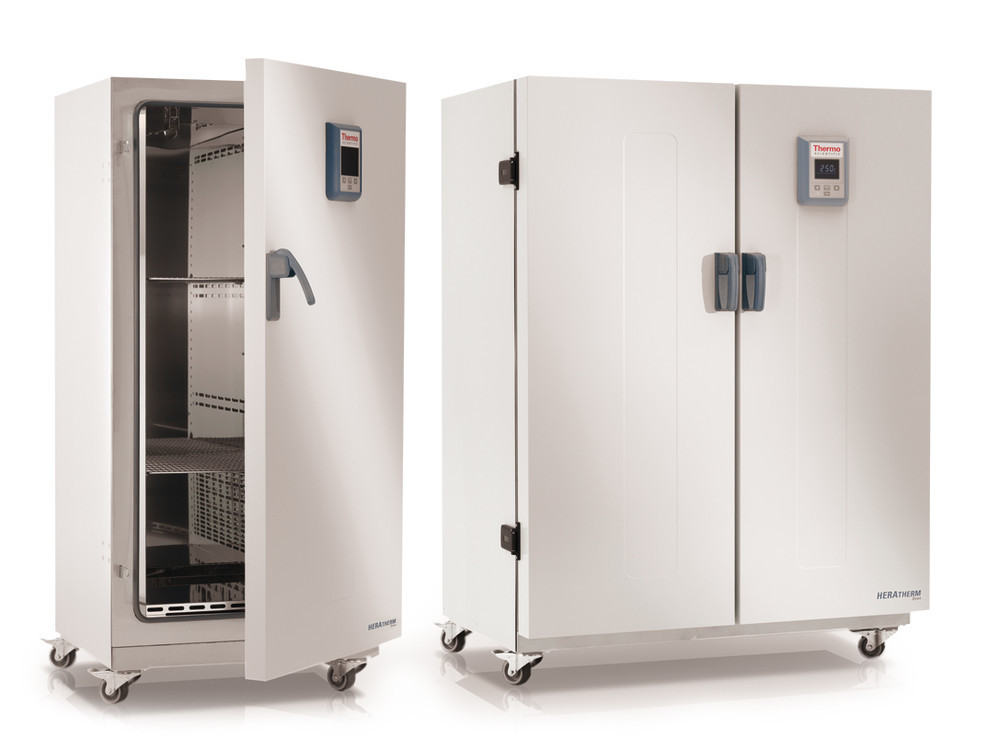

General features: Free-standing devices with fixed rollers Stainless steel interior RS 232 port Mains connection 230 V, 50 Hz Not including depth of handle and display (65 mm) and height of rollers (108 mm); required clearance to rear panel 120 mm High-capacity drying cabinet Heratherm™ General Protocol with natural air circulation Operating temperature range from 10 °C above room temperature to 250 °C With natural convection Integrated timer (1 min to 99 h, 59 min) Actual temperature display; setting accuracy ±1 K Delivery incl. 2 removable shelves. Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Product Detail
Wire removable shelf kit 1 removable shelf with 2 mounting clips. Accessories removable shelf kit Heratherm™ high-capacity wire drying cabinets
Product Detail
Removable shelf kit : 1 removable shelf with 2 mounting clips Accessories removable shelf kit for Heratherm™ drying cabinets
Product Detail
For use in clean-rooms e.g. in microelectronics, medical technology, pharmaceuticals and food technology. Clean-room suitability was confirmed by the independent Fraunhofer IPA (Institute for Manufacturing Engineering and Automation) with the “Fraunhofer TESTED DEVICE ® ” certificate. For maximum quality assurance, the drying oven was tested according to a uniform, statistically validated standard according to DIN EN ISO 14644-14. Validity without modifications (e.g. particulate filters). Suitable for air purity class 6 without circulating air or suitable for class 5 with maximum circulating air. General features: Operating temperature range from 10 °C above room temperature to 300 °C Setting temperature from 20 to 300 °C Setting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K Quiet air turbine for air circulation mode (air turbine can be controlled and switched off) Graphical single TFT display with touch screen for operation and displaying temperature, program runtime and air flap position German, English, French and Spanish language options Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation “SetpointWAIT“ function - process time does not start until the target temperature is reached Integrated data logger with ten-year memory Fresh air supply by electronically adjustable exhaust air flap With Ethernet communication port for reading out log data Stainless steel interior (1.4301) Fully insulated stainless steel door, two-wing Textured stainless steel housing Movable and lockable with rollers Overheating protection Incl. factory calibration certificate valid for +160 °C Mains connection 400 V and 3 x 220 V w/o neutral conductor, 50/60 Hz High-capacity drying oven UF 1060 model with forced air circulation, suitable for clean-rooms Delivery incl. two stainless steel grids. There are additional transport costs for delivery to the point of use. We are happy to provide you with these on request.
Product Detail
General features: Free-standing devices with fixed rollers Stainless steel interior RS 232 port Mains connection 230 V, 50 Hz Not including depth of handle and display (65 mm) and height of rollers (108 mm); required clearance to rear panel 120 mm High-capacity drying cabinet Heratherm™ Advanced Protocol with ventilator Operating temperature range from 10° C above room temperature to 250 °C Setting accuracy ±1 K Mechanical convection - 2-stage fan: can run fast or slow, but cannot be switched off Cable feedthrough (Ø 19 mm), e.g. for fitting sensors An audible alarm sounds if the door is accidentally left open Switch on/off after a preset time Weekly time setting or real-time control Programmable control for temperature ramps and dwell times (memory for 10 programs each with 10 individual steps) Delivery incl. 2 removable shelves. Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Product Detail
Operating temperature from 15 °C above room temperature to 300 °C Setting temperature from 30 to 300 °C; setting accuracy: ±1 °C Adjustable air exchange and rear exhaust air pipe Ø 50 mm Models with volumes of 400 l or more come with a double-leaf door With integrated timer with range from 0 to 99 h Power supply for models 23 to 260: 230 V, 50/60 Hz Power supply for models 400 and 720: 400 V, 50/60 Hz.3 N ~ Drying cabinet Models: ED with natural convection With natural air circulation (convection). Additional USB port for recording data with models ED 56, ED 115 and ED 260. Delivery incl. 2 chrome-plated grates.
Product Detail

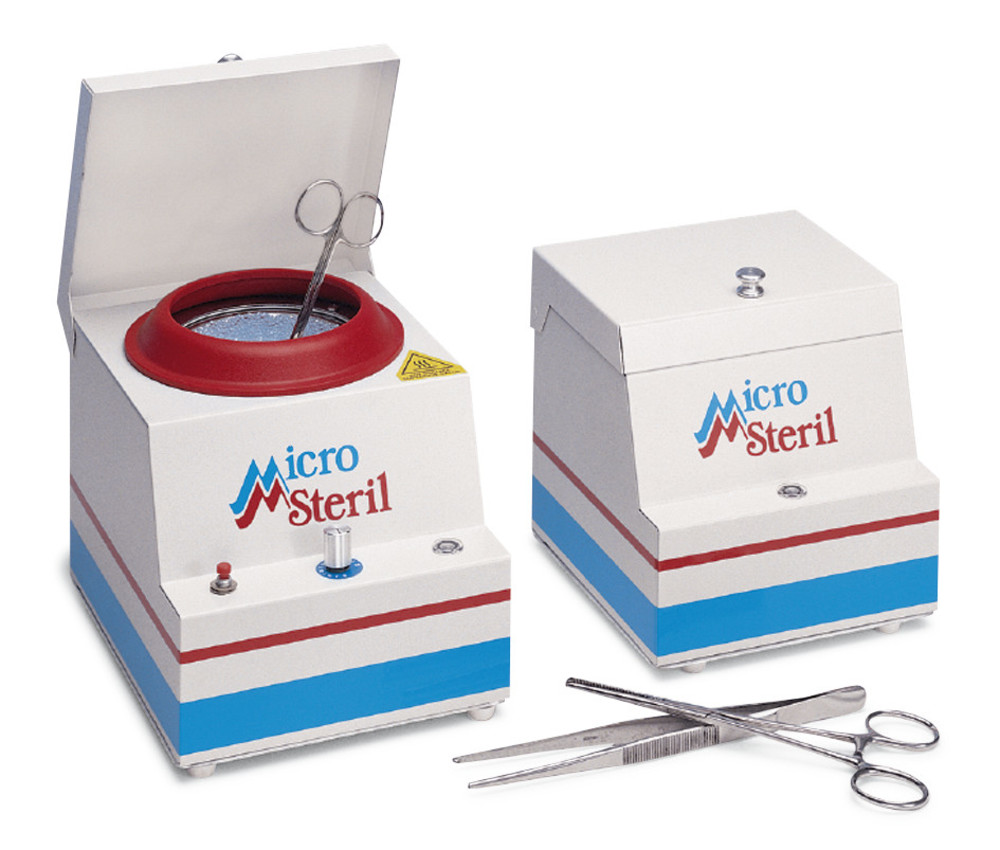

Suitable for dry sterilisation of instruments. The units are filled with approx. 310 g glass beads and reach a temperature of approx. 240 °C. Sterilisation time: 10-30 seconds. Glass beads are included in the scope of supply. Hot air sterilisers large version, 100 W Power 100 W. Heating time 30 min. Inside Ø 70 mm. Outside dimensions: L 195 x W 145 x H 154 mm.
