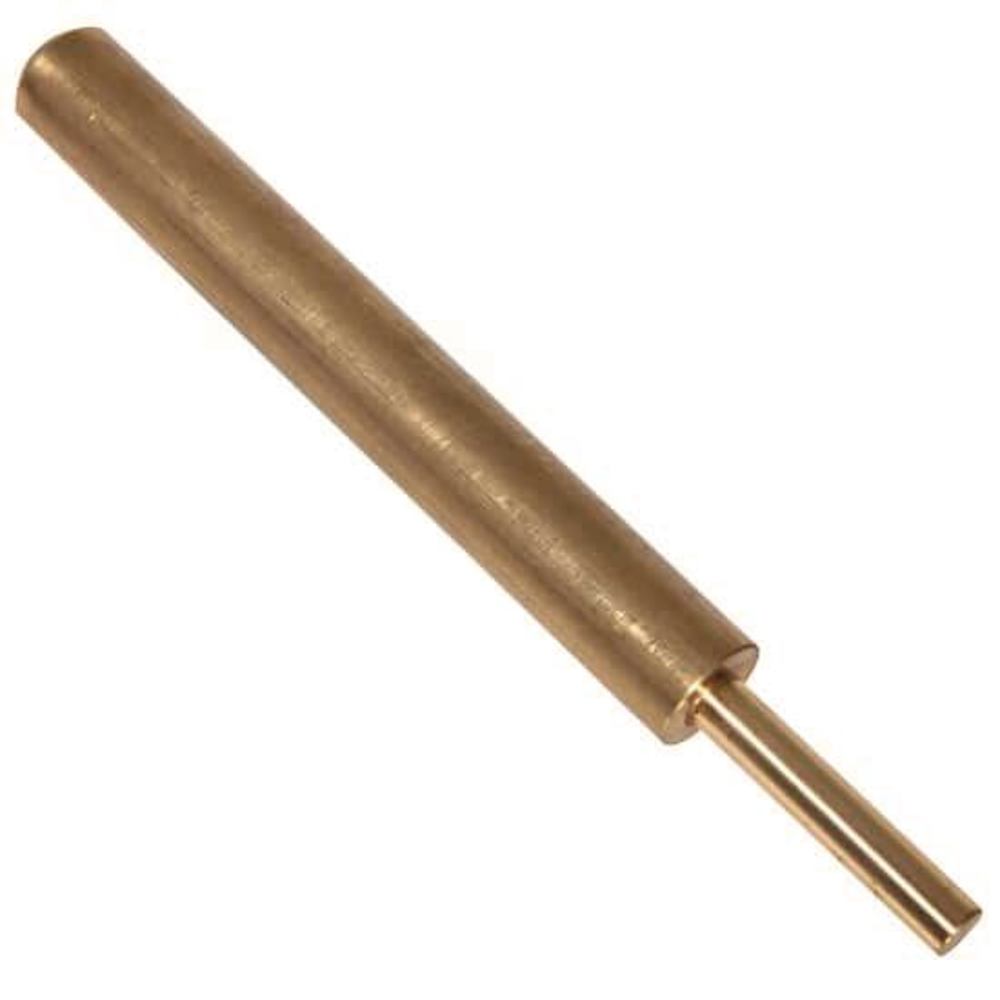

Material: brass. Accessories for melting point determination device MP-100, analogue Cooling plug For rapid reduction of the heating block temperature after heating up or use of the melting point determination device. Dimensions: L 127 x Ø 16 mm.
Product Detail

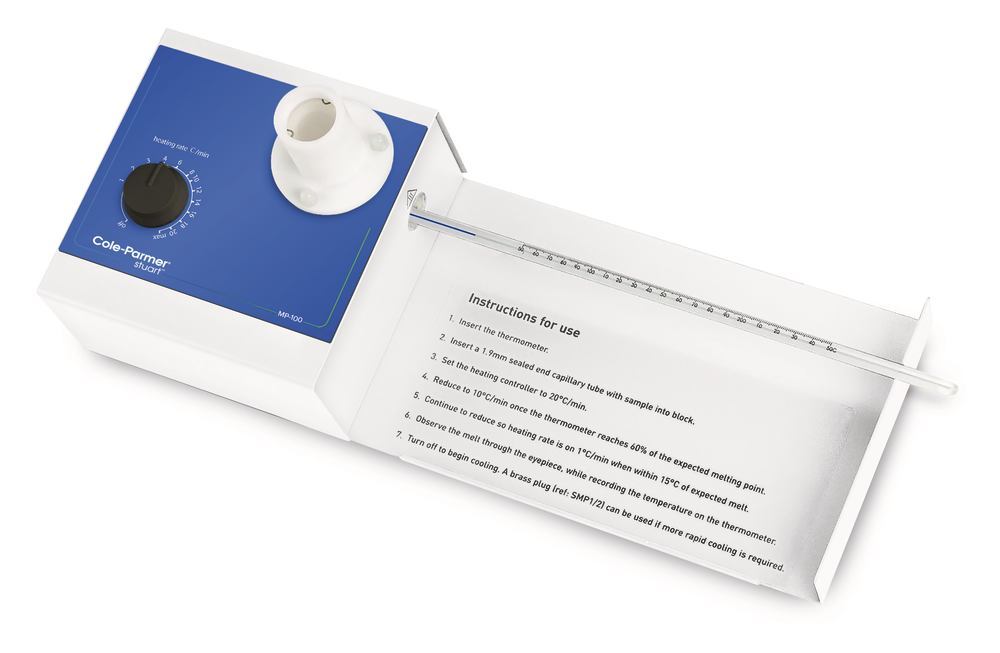

General features: Easy application due to visual measuring technique Simultaneous observation and testing of three samples possible Place the sample in the capillary tube and insert it into one of the openings on the side of the heating block, and adjust the heating rate Heat up at 20 °C/min until close to the melting temperature (at approx. 60% of the expected melting point), then set a slower heating rate of 1 to 10 °C/min White LED for illuminated samples, visual inspection of the capillary is done via a magnifier and determination of the temperature via a thermometer filled with alcohol Melting point measuring unit MP-100 analogue Delivery incl. 100 melting point tubes (open at both sides).
Product Detail

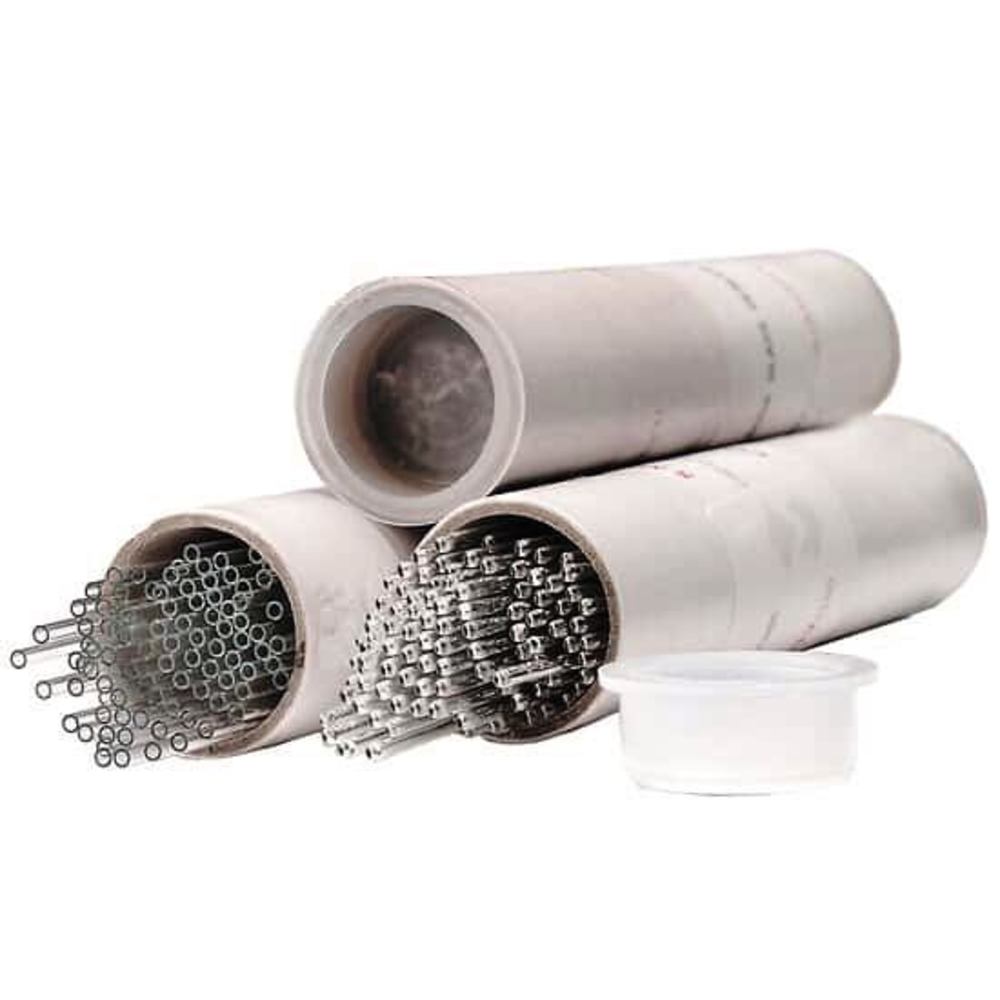

Material: soda-lime glass. Accessories for melting point determination device MP-100, analogue Melting point capillary tubes Dimensions: outer Ø 1.9 mm, inner Ø 1.3 mm, L 100 mm. Open on one side.
Product Detail
For fully automatic determination of a sample. The start temperature is set via the LCD colour touch display (approx. 4-5 °C below the expected melting point). After reaching the selected starting temperature, the filled capillary is dropped into the capillary guide with the closed side down (sliding system). This slides independently into the measuring channel and starts the measurement with the preselected heating rate. After completion of the measurement, the start temperature, melting point and a graphic of the transparency progression are shown in the display. Memory for ten measurement results directly on the device With SD card reader - saving of measured values on SD card in csv format USB connection for transmitting all relevant measurement data via PC software. A complete measurement log can be completed there, and comments added Further substances with a start value can be created and saved in Excel™ with the database function file on the SD card. The database can be expanded as desired, and transferred to the melting point measuring unit and stored Automatic recooling by means of a fan SUBS-D 9-pin printer connection Melting point measuring unit MPM-V01 Delivery incl. 100 melting point capillary tubes, USB cable, PC software and SD memory card.
