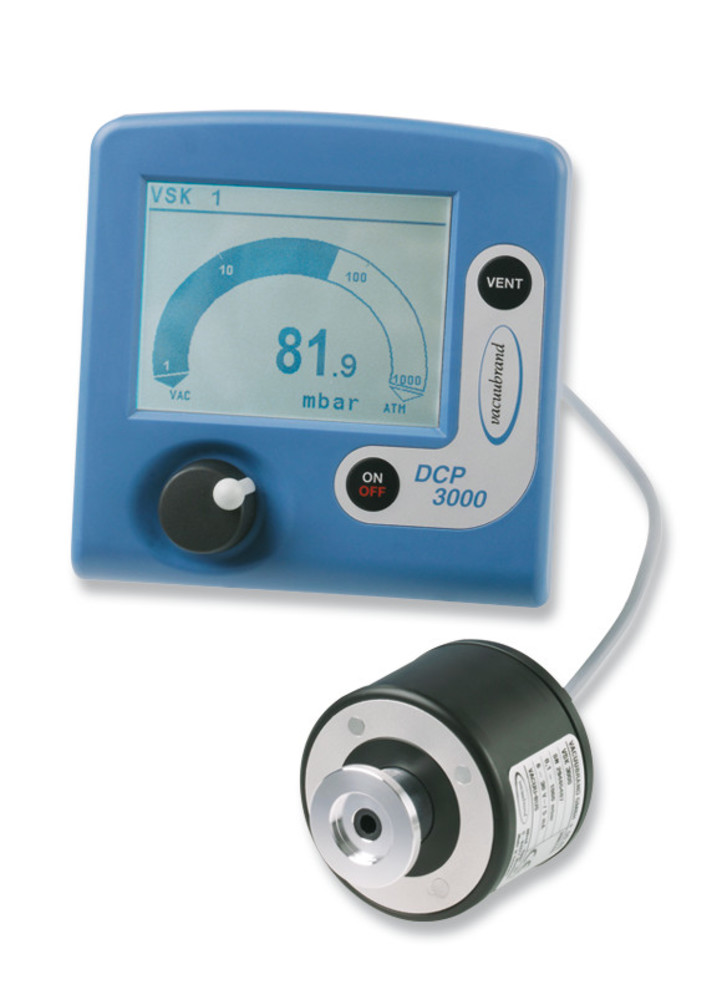

LCD graphic display with digital pressure indicator and bar graph Separate pressure transducer for flexible positioning of the measuring device (cable length 2 m) Sensor material for contact with media: aluminium oxide ceramic Switchable pressure display (mbar, torr, hPa) Can be used as a tabletop device or with a stand Vacuum meter DCP 3000 Delivery incl. DCP 3000 vacuum meter with required pressure transducer, measuring cable and support.
Product Detail
Chemical-resistant materials in area in contact with media for excellent long-term stability and accuracy. Integrated ceramic diaphragm pressure transducer (aluminium oxide) Digital pressure display, with additional analogue representation Automatic switch-off after 1 to 600 min or continuous operation Adjustable measuring cycle: Automatic, 1x per 3 s, 1x per 1 s or 3x per 1 s Switchable pressure display (mbar, torr, hPa) Vacuum meter DVR 2pro Delivery incl. vacuum connecting parts, stand rod and battery.
Product Detail

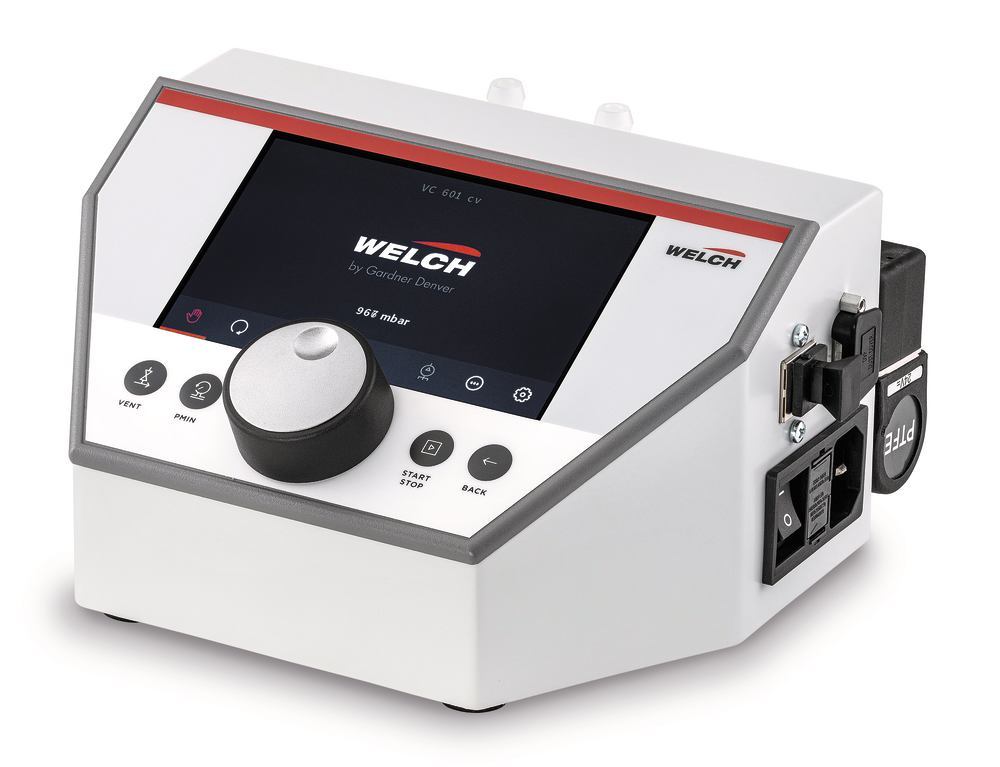

Two-point controller for regulating a rough vacuum, for universal use. Robust vacuum sensor, chemically resistant and very precisely adjustable to ±1 mbar. With large, multilingual colour display and light/dark screen mode for optimum visibility Measured values can be presented digitally as a curve progression or in an analogue manner as individual values Integrated solvents library with stored distillation-specific parameters or freely adjustable boiling points; storage of individual pressure histories for innovative processes possible With communication port for remote control/monitoring, for downloading logged process data and for software updates Various safety levels can be accessed for self-defined user approvals Selectable pressure unit (mbar/Torr/psi) Integrated ventilation valve for inert gas/room air and solenoid control valve for vacuum Connection for cooling water valve available Vacuum controllers VCpro 601 Delivery incl. VCpro 601 vacuum controller with vacuum valve, venting valve and holder for stand removal.
Product Detail

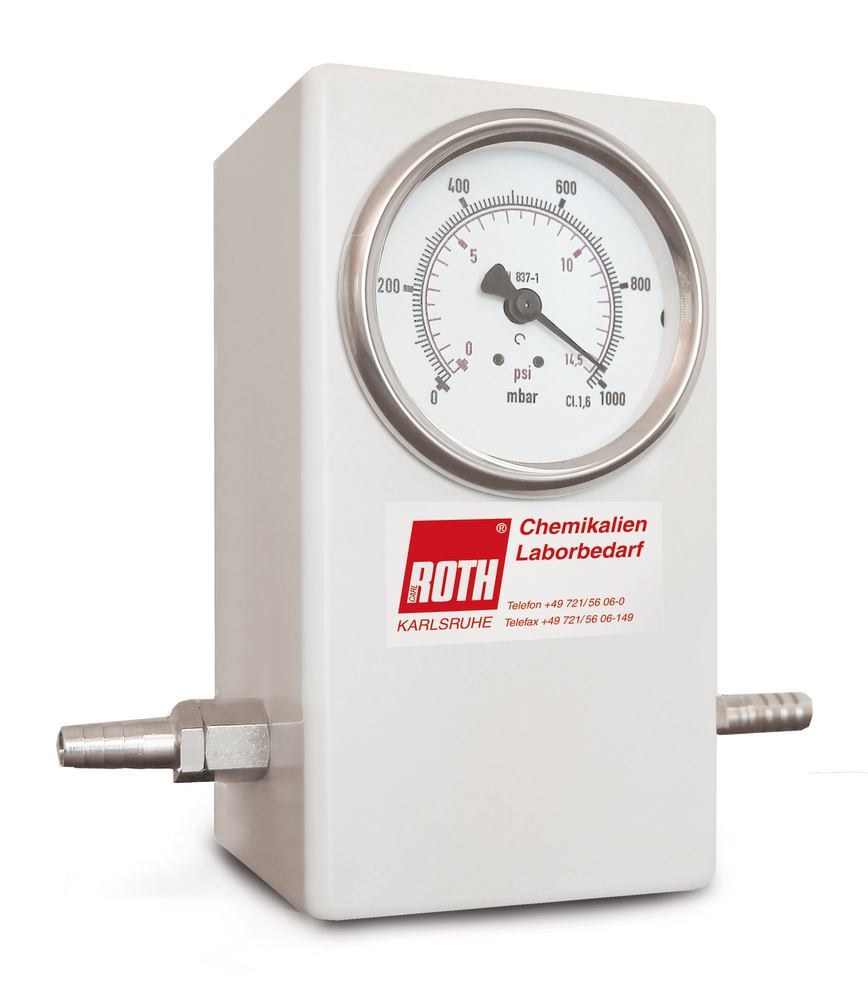

The devices are connected to a vacuum pump in series on the suction side. Stand mounting possible (using spring clamps on the back of the device). Vacuum meter VAC For displaying the current vacuum level.
Product Detail
LCD graphic display with digital pressure indicator and bar graph Separate pressure transducer for flexible positioning of the measuring device (cable length 2 m) Sensor material for contact with media: aluminium oxide ceramic Switchable pressure display (mbar, torr, hPa) Can be used as a tabletop device or with a stand Vacuum meter DCP 3000 Delivery incl. DCP 3000 vacuum meter with required pressure transducer, measuring cable and support.
Product Detail

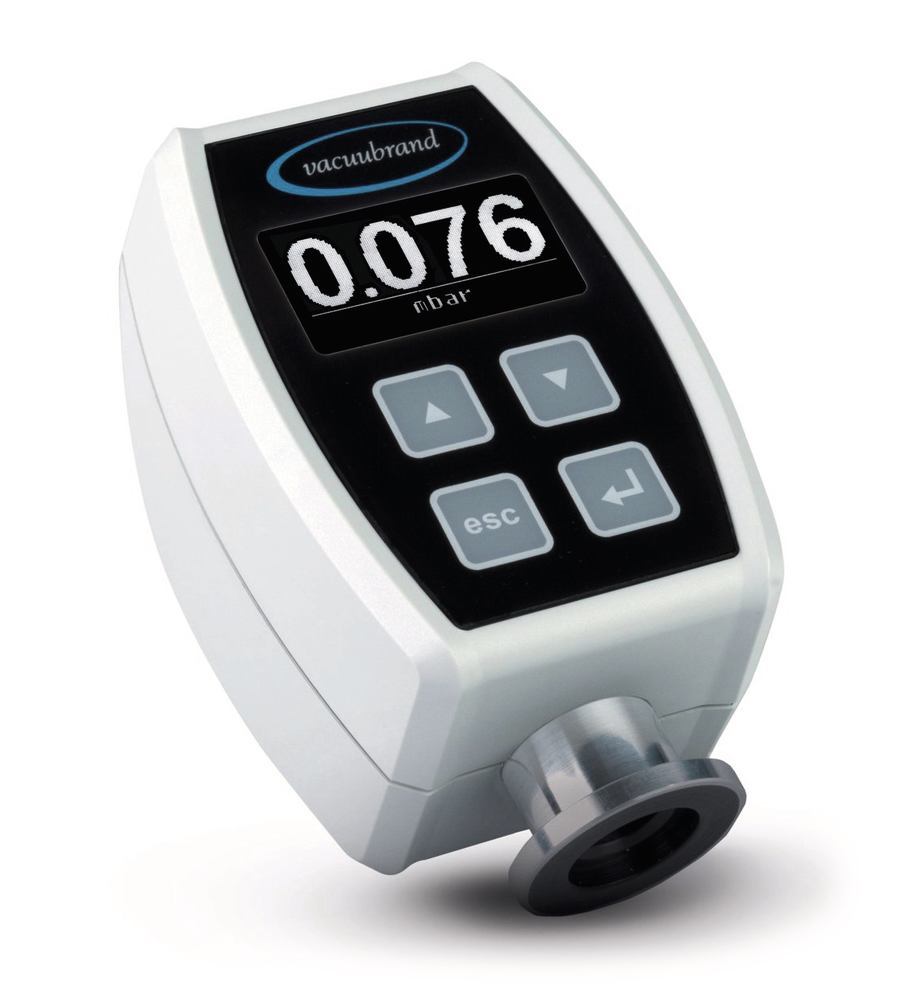

For monitoring vacuum processes with particularly high precision. Lit pressure display makes it easy to read the measured values Display with menu navigation, simple adjustment of display options, e.g. pressure unit Compact design with integrated sensors; is practical to position for lab and process set-ups Sensor chemical-resistant for increased service life, even for aggressive applications Stable plastic housing with good chemical resistance Switchable pressure display (mbar, torr, hPa) Vacuum meter VACUU VIEW Extended A chemical-resistant combination comprising a ceramic membrane sensor and ceramic jacketed Pirani sensor for measurements in the coarse and fine vacuum ranges. Delivery incl. DN 6/10 mm hose nozzle and plug-in power supply.
Product Detail

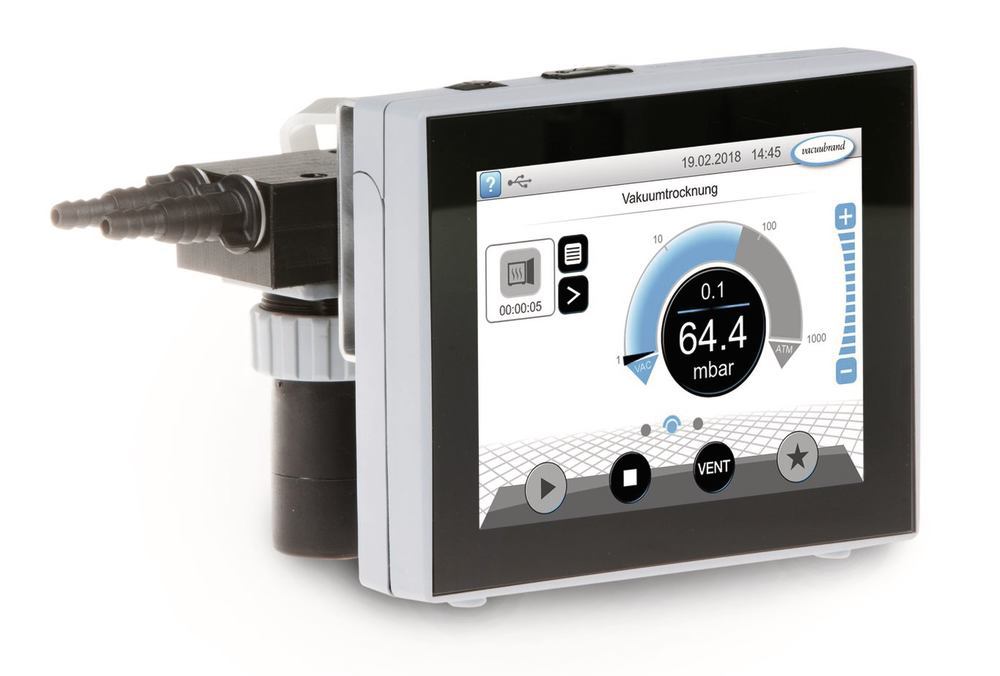

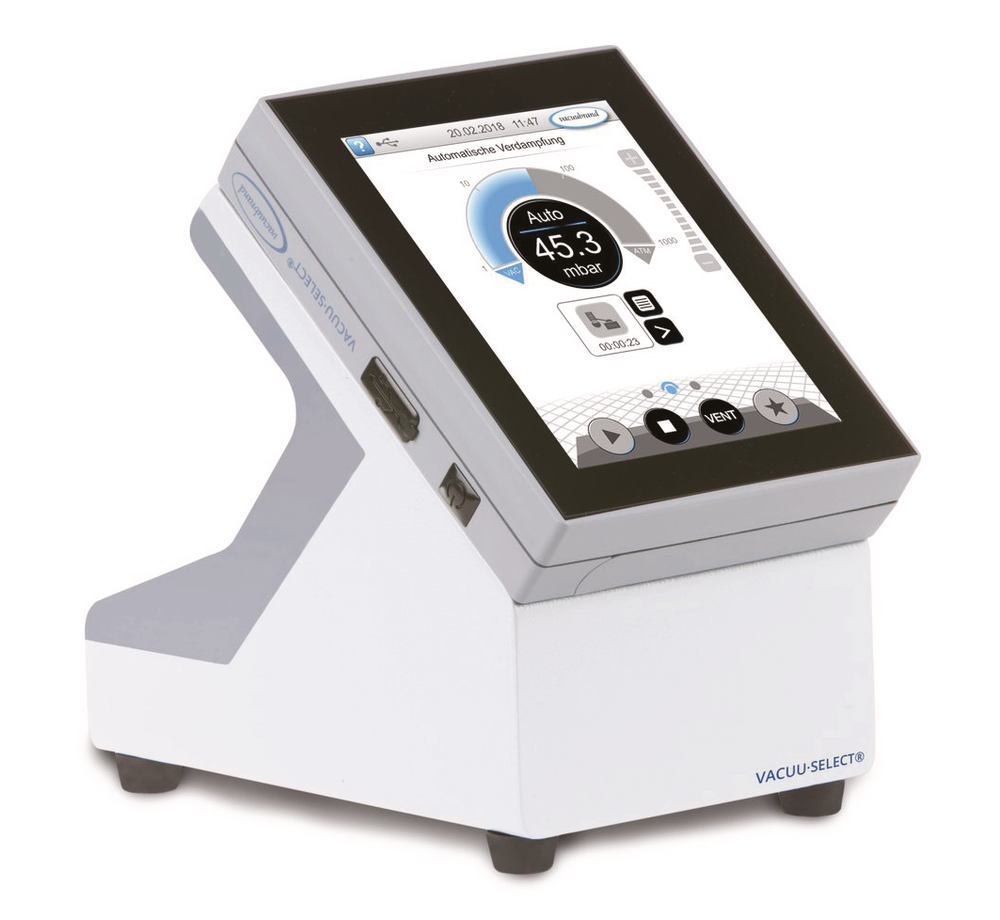

For controlling a vacuum in the coarse vacuum range. Measures and displays the absolute pressure. Compact unit, simple installation, for increased process efficiency. Operation via glass touchscreen, even when wearing thick laboratory gloves Highly intuitive, application-oriented operator guidance with integrated help function and contextual tips for application Saves time thanks to preset vacuum processes for all common laboratory applications Independently detects the boiling point during solvent evaporation, e.g. using the rotary evaporator Storage of individual vacuum processes using an application editor for reproducible results Ceramic membrane vacuum sensor integrated in the device, measurement connection at the valve block. Easy to connect the controller between the pump and vacuum application Chemical vacuum power valve: Electromagnetic flip-flop valve for controlling the vacuum you require in the application, with graduated hose nozzles Integrated venting valve: Simple pressure compensation or ventilation with inert gas at the end of the process Integrated non-return valve: No interference with adjacent applications using a shared vacuum source Switchable pressure display (mbar, torr, hPa) Vacuum controller VACUU·SELECT compact Tabletop device Delivery incl. VACUU·SELECT compact controller in a tabletop version, with suction line valve, non-return valve, integrated ceramic membrane vacuum sensor, venting valve and mains adapter.
Product Detail

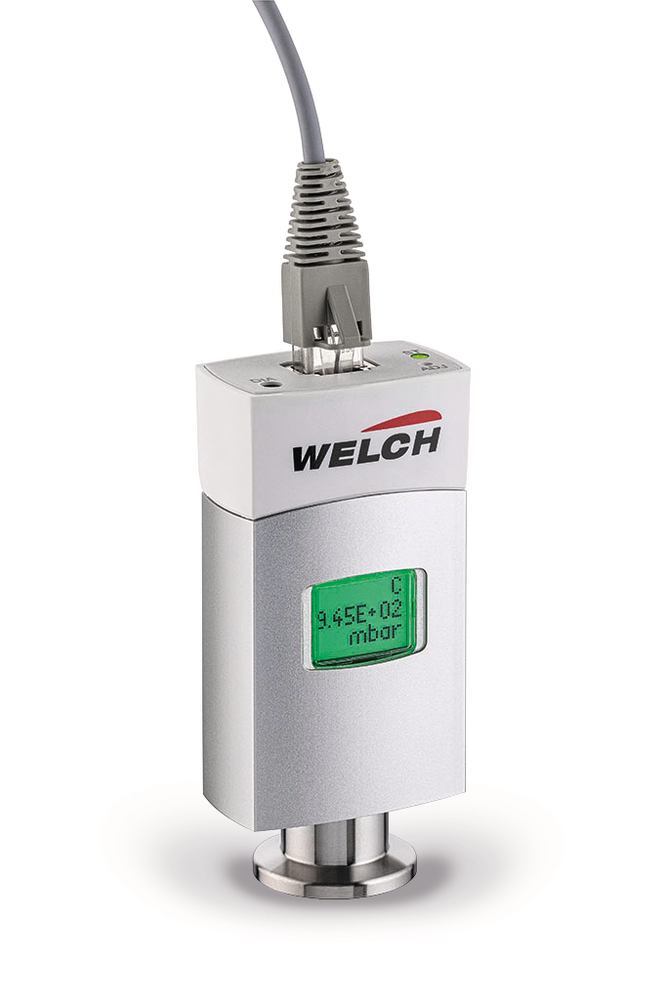

Robust, durable and reliable. Digital multi-range vacuum meter for measuring the vacuum in the coarse and fine vacuum ranges. Chemically resistant and therefore ideal for corrosive and aggressive gases and vapours. Combined sensor unites PIRANI technology with the benefits of a ceramic capacitive membrane sensor. In the measuring range between 10 mbar and the atmosphere, capacitive membrane technology delivers highly accurate values for reliable pressure measurement, regardless of the type of gas. With backlit LCD display for easy readability and for simple monitoring of the vacuum; the current measuring principle is also displayed High accuracy and excellent resolution in the atmospheric pressure range to 5x10 -4 mbar Both pressure sensors are active at all times: With a low vacuum (<1 mbar), the signal from the PIRANI sensor is used exclusively for pressure measurement, and for a weaker vacuum (>10 mbar), only the signal from the capacitive membrane sensor is used. In the mixing area (1-10 mbar), both signals are weighted in proportion to the pressure and the output signal is thus determined Can be connected to practically any vacuum pump and any vacuum system LED status display Vacuum meter VMpro 2 Delivery incl. DN 8-10 hose nozzle, T-piece, clamping and centring ring, plug-in power supply.
Product Detail

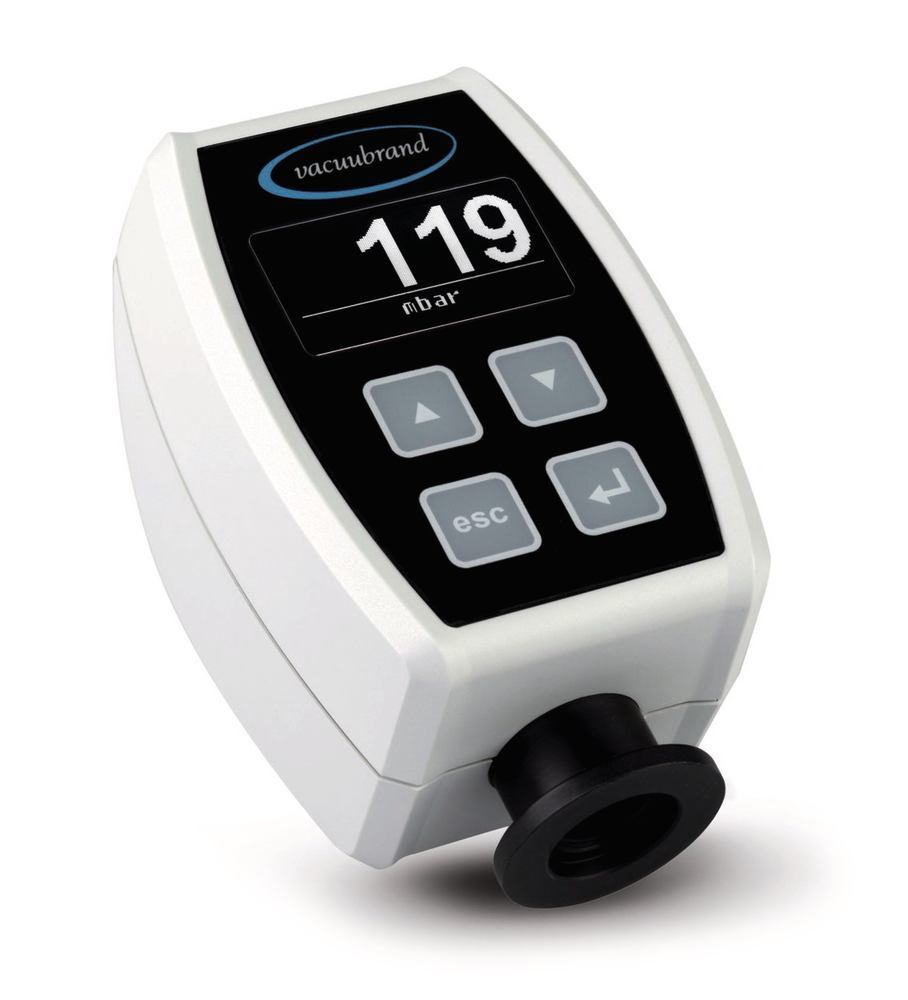

For monitoring vacuum processes with particularly high precision. Lit pressure display makes it easy to read the measured values Display with menu navigation, simple adjustment of display options, e.g. pressure unit Compact design with integrated sensors; is practical to position for lab and process set-ups Sensor chemical-resistant for increased service life, even for aggressive applications Stable plastic housing with good chemical resistance Switchable pressure display (mbar, torr, hPa) Vacuum meter VACUU VIEW Standard With chemical-resistant ceramic membrane sensor for measurements in the coarse vacuum range. Detection of the applied absolute pressure, regardless of the gas type, according to the capacitive measuring principle. Delivery incl. DN 6/10 mm hose nozzle and plug-in power supply.
Product Detail
For controlling a vacuum in the coarse vacuum range. Measures and displays the absolute pressure. Compact unit, simple installation, for increased process efficiency. Operation via glass touchscreen, even when wearing thick laboratory gloves Highly intuitive, application-oriented operator guidance with integrated help function and contextual tips for application Saves time thanks to preset vacuum processes for all common laboratory applications Independently detects the boiling point during solvent evaporation, e.g. using the rotary evaporator Storage of individual vacuum processes using an application editor for reproducible results Ceramic membrane vacuum sensor integrated in the device, measurement connection at the valve block. Easy to connect the controller between the pump and vacuum application Chemical vacuum power valve: Electromagnetic flip-flop valve for controlling the vacuum you require in the application, with graduated hose nozzles Integrated venting valve: Simple pressure compensation or ventilation with inert gas at the end of the process Integrated non-return valve: No interference with adjacent applications using a shared vacuum source Switchable pressure display (mbar, torr, hPa) Vacuum controller VACUU·SELECT compact Stand-mounted device Delivery incl. VACUU·SELECT compact controller for stand mounting, with suction line valve, non-return valve, integrated ceramic membrane vacuum sensor, venting valve and mains adapter.
