Autoclavable: yes. Range of applications: colour code: red. For dispensing aggressive reagents directly from the supply bottle, e.g. concentrated bases and acids such as H 3 PO 4 , H 2 SO 4 (excluding, e.g., HCI, HNO 3 and HF), saline solutions and a wide range of organic solvents. Properties: The “floating piston” design makes dispensing easy Rapid ventilation through improved fluid mechanics Valves without additional seals for easier cleaning Rotates through 360°, valve block with GL 45 thread Discharge tube with swivel-mounted screw cap for protection against media contact Telescopic suction tube adjustable to different bottle sizes DE-M approved Suitable for calibration in conjunction with measuring instrument inspection according to ISO 9011 and GLP Change to factory calibration is shown Easy to disassemble for cleaning Fully autoclavable at 121 °C Microfilter can be connected to the ventilation opening for sterile dispensing Materials in contact with media: borosilicate glass, Al 2 O 3 ceramic, platinum-iridium, ETFE, FEP, PFA, PTFE and PP. Limits of use: max. vapour pressure 600 mbar; max. viscosity 500 mm 2 /s; max. temperature +40 °C; max. density 2.2 g/cm 3 . Dispensers Dispensette ® S Analogue without recirculation valve Quickly adjustable dispensing volume, safe and reliable volume adjustment via the internal toothed rack. Discharge tube without recirculation valve, prevents contamination of the bottle contents. Delivery incl. quality certificate, telescopic filling tube, valve mounting tool and PP thread adapter.
Product Detail

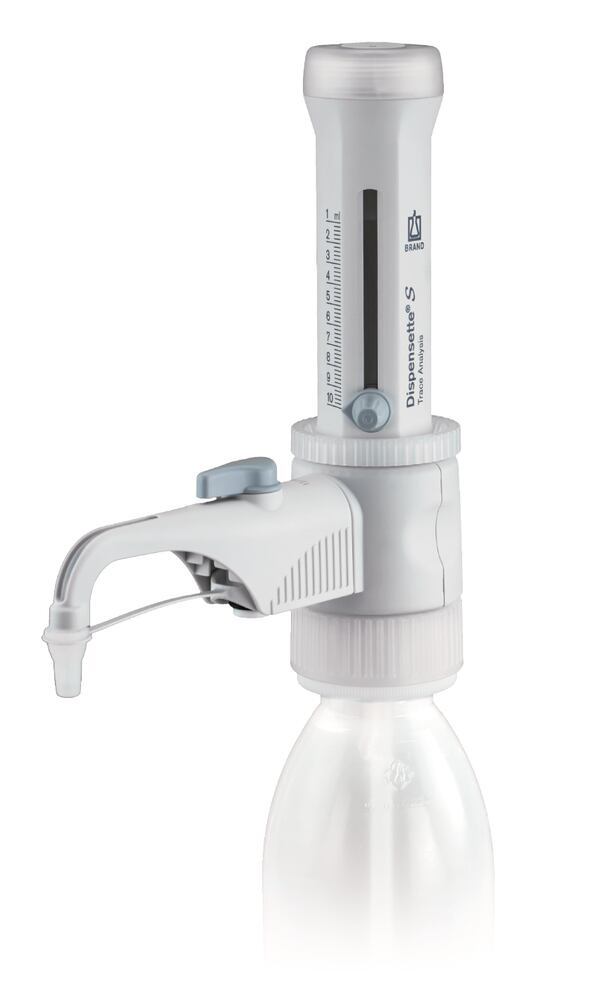

Range of application: for accurate dispensing of high purity media in trace analysis. Dispensing of metal traces, usually in the low ppb range, or even in the ppt range, depending on the application. The established cleaning process for use in trace analysis is explained in the operating instructions. Can be used as a dispenser for hydrofluoric acid with a platinum-iridium valve spring. Properties: Depending on requirements, the spring material is made of platinum-iridium or tantalum Valves without additional ring seals for easier cleaning Dispensing plunger with snug fitting seal Complete dispensing unit easily replaceable when worn Reliable volume control via internal toothed rack Rotates through 360°, valve block with GL 45 thread Discharge tube with swivel-mounted screw cap for protection against media contact Telescopic suction tube adjustable to different bottle sizes DE-M approved Suitable for calibration in conjunction with measuring instrument inspection according to ISO 9011 and GLP Change to factory calibration is shown Microfilter can be connected for sterile dispensing Materials in contact with media High-purity plastics (PTFE, ETFE, PCTFE, FEP and PFA), sapphire valves, platinum-iridium or tantalum spring material. Limits of use Max. vapour pressure 600 mbar; max. viscosity 500 mm²/s; max. temperature +40 °C; max. density 3.8 g/cm³. Dispenser Dispensette ® S Trace Analysis analogue With recirculation valve Discharge tube with recirculation valve prevents reagent loss and allows quick, bubble-free ventilation. Delivery incl. quality certificate, recirculation tune, telescopic filling tube, valve mounting tool and thread adapter.
Product Detail
Autoclavable: yes. Direct displacing piston with wiping PFA lip seal reduces crystallisation of liquids Improved volume adjustment due to internal toothed rack, volumes can be set quickly and precisely Valve block rotatable by 360° on the bottle, with GL 45 thread Swivelling cap does not obstruct dispensing Vent valve with safety bulb closes dosing channel if discharge tube is not fitted Screwable ventilation stoppers for quick assembly of a drying tube Telescopic intake tube, infinitely adjustable to different bottle heights Suitable for calibration in conjunction with measuring instrument inspection acc. to ISO 9001 and GLP; change to factory calibration is displayed Autoclavable at 121 °C (2 bar), acc. to DIN EN 285, with no need to disassemble Materials in contact with media: borosilicate glass, Al 2 O 3 ceramic, ETFE, FEP, PFA, PTFE, platinum-iridium, PP (cap). Limits of use: temperature from +15 °C to +40 °C, steam pressure up to max. 500 mbar, kinematic viscosity up to 500 mm 2 /s, density up to 2.2 g/cm 3 . Dispenser ROTILABO ® II Delivery incl. quality certificate, telescopic filling tube, valve mounting tool and PP thread adapter.
Product Detail
Autoclavable: yes. Range of applications: colour code: red. For dispensing aggressive reagents directly from the supply bottle, e.g. concentrated bases and acids such as H 3 PO 4 , H 2 SO 4 (excluding, e.g., HCI, HNO 3 and HF), saline solutions and a wide range of organic solvents. Properties: The “floating piston” design makes dispensing easy Rapid ventilation through improved fluid mechanics Valves without additional seals for easier cleaning Rotates through 360°, valve block with GL 45 thread Discharge tube with swivel-mounted screw cap for protection against media contact Telescopic suction tube adjustable to different bottle sizes DE-M approved Suitable for calibration in conjunction with measuring instrument inspection according to ISO 9011 and GLP Change to factory calibration is shown Easy to disassemble for cleaning Fully autoclavable at 121 °C Microfilter can be connected to the ventilation opening for sterile dispensing Materials in contact with media: borosilicate glass, Al 2 O 3 ceramic, platinum-iridium, ETFE, FEP, PFA, PTFE and PP. Limits of use: max. vapour pressure 600 mbar; max. viscosity 500 mm 2 /s; max. temperature +40 °C; max. density 2.2 g/cm 3 . Dispensers Dispensette ® S Fixed with recirculation valve Non-adjustable dispensing volume for routine applications. Discharge tube with recirculation valve prevents reagent loss and allows quick, bubble-free ventilation. Delivery incl. quality certificate, telescopic filling tube, recirculation valve and tube, valve mounting tool and PP thread adapter.
Product Detail
Autoclavable: yes. Properties: Ergonomic design with colour-code system Resistant to abrasion, UV radiation, acids and acid vapours Valve block without metal springs; no contamination of the dispensed liquid Quick volume adjustment with easy action and additional rotatable fine adjustment Visually recognisable dosing direction Screws directly onto bottle with thread GL 32 Easy to dismantle and clean Conformity testing acc. to DIN EN ISO 8655-5 Dispenser FORTUNA ® OPTIFIX ® SAFETY S For dispensing fuming acids and other aggressive chemicals as well as odorous liquids.Plastic-coated, glass dispensing cylinder. Dosing cylinder made of glass, PTFE-coated with sealing lip.With safety stopcock on the discharge tube and an additional safety valve in the ventilation channel. Delivery incl. PTFE intake hose and two PTFE thread adapters.
Product Detail
Autoclavable: yes. Properties: Ergonomic design with colour-code system Resistant to abrasion, UV radiation, acids and acid vapours Valve block without metal springs; no contamination of the dispensed liquid Quick volume adjustment with easy action and additional rotatable fine adjustment Visually recognisable dosing direction Screws directly onto bottle with thread GL 32 Easy to dismantle and clean Conformity testing acc. to DIN EN ISO 8655-5 Dispenser FORTUNA ® OPTIFIX ® BASIC For dosing aqueous media, crystallizing substances and diluted acids and alkalis.Plastic-coated, glass dispensing cylinder. Dosing cylinder made of glass, PTFE-coated. Delivery incl. PTFE intake hose and two PP thread adapters.
Product Detail
Autoclavable: yes. Properties: Ergonomic design with colour-code system Resistant to abrasion, UV radiation, acids and acid vapours Valve block without metal springs; no contamination of the dispensed liquid Quick volume adjustment with easy action and additional rotatable fine adjustment Visually recognisable dosing direction Screws directly onto bottle with thread GL 32 Easy to dismantle and clean Conformity testing acc. to DIN EN ISO 8655-5 Dispenser FORTUNA ® OPTIFIX ® SOLVENT For dosing solvents and low-viscosity media (up to 100 mPa · s).Plastic-coated, glass dispensing cylinder. Dosing piston made of glass, without coating. Delivery incl. PTFE intake hose and two PP thread adapters.
Product Detail
Autoclavable: yes. Properties: Ergonomic design with colour-code system Resistant to abrasion, UV radiation, acids and acid vapours Valve block without metal springs; no contamination of the dispensed liquid Quick volume adjustment with easy action and additional rotatable fine adjustment Visually recognisable dosing direction Screws directly onto bottle with thread GL 32 Easy to dismantle and clean Conformity testing acc. to DIN EN ISO 8655-5 Dispenser FORTUNA ® OPTIFIX ® BASIC For dosing aqueous media, crystallizing substances and diluted acids and alkalis.Plastic-coated, glass dispensing cylinder. Dosing cylinder made of glass, PTFE-coated. Delivery incl. PTFE intake hose and two PP thread adapters.
Product Detail
Properties: Dispensing: push plunger down, fills automatically Dispensing sterile media: screw the valve block with filling tube onto the filled bottle, seal the valve block with the cap, attach the autoclavable sterile filter (0.2 µm) at the side and autoclave at 121 °C. Remove the cap from the valve block under clean bench conditions, screw in the sterile dispensing unit and attach the actuating unit Suitable for serial dispensing by means of flexible PTFE dispensing hose with a safety handle, length approx. 800 mm, please order separately If the snug fitting plunger seal is worn, the dispensing unit can be changed Screws directly onto bottle with thread GL 45 Limits of use: 15 to 40 °C, max. vapour pressure 500 mbar, max. density 2.2 g/cm 3 , viscosity 300 mm 2 /s (2-ml device), 150 mm 2 /s (10-ml device) or 75 mm 2 /s (25-ml device) Dispensers seripettor ® pro For aqueous solutions, buffer solutions, culture media, acids (e.g. concentrated HCI), polar solvents (e.g. acetone) and UV-sensitive media. Materials in contact with media : PP, PE, borosilicate glass, Al 2 O 3 ceramic, ETFE, PFA, FEP, PTFE, Pt-Ir Delivery incl. discharge tube, filling tube, replacement dispensing unit and PP thread adapter.
Product Detail
For dispensing highly pure acids and alkalis. Suitable for use in ultra trace analysis. General features of all models: Free of metals Made of high quality and highly pure plastics (PTFE, TFM and PFA) Calibrated and mechanically tested for precision and accuracy 38-430 thread (fits ROTIPURAN ® Ultra products) When using bottles with a GL 45 thread, please order fastening for dispenser KK11.1 separately. Dispenser Ultra HF Properties: Specially for dispensing hydrofluoric acids Also suitable for analytical acids Delivery without bottle holder.
Product Detail
Autoclavable: yes. Properties: Media return system Ceramic flasks: no abrasion, no swelling, no thermal problems and high chemical resistance Intake hose firmly screwed on, creating a tight seal Freely rotatable dispenser on the bottle Luer lock connection at the back Ergonomic grip Quick and safe volume adjustment Complete reproducibility of work Components are easy to change Rotates through 360°, valve block with GL 45 thread Can be steam sterilised at 121 °C/2 bar without needing to be dismantled Conformity certified Dispenser ceramus ® Fixed Materials in contact with media: borosilicate glass, Al 2 O 3 ceramic, ECTFE, Hastelloy. Delivery incl. three thread adapters, one assembly key, quality certificate.
