DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN 15154-5:2019 and ANSI Z 358.1-2009. Application through wall flange, surface-mounted supply line Stable design due to robust brass body Chemical-resistant powder coating Large maintenance-free ball valve for high flow rates (60 l/min at 1.5 bar) Application range from 1 to 10 bar water pressure Triggered through non-self-closing pull-rod valve Large, easy-to-operate pull rod Self-emptying high-performance shower head (prevents build-up of bacteria and calcification) Adhesive information label for body shower, 150 x 150 mm Emergency body shower Over-door-mounted Can be mounted either to left or right of door. Water connection ¾″ internal thread Overhang 565 mm Distance between rod valve and shower arm 500 mm Pull rod length 700 mm
Product Detail
DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN EN 15154-5:2019 and ANSI Z 358.1. Tough stainless steel design with chemical-resistant powder coating in green With top and bottom water connection for installation in circulation lines 200 x 200 mm base with four attachment holes Standpipe: 1 1 / 4 ″ made of stainless steel, two-part Quick installation system with 3 / 4 ″ connecting piece Activated via pull rod with ring handle High-performance shower head made of chemical-resistant plastic, with improved spray pattern, resists corrosion, as limescale-resistant and maintenance-free as possible, very tough, self-draining Water connection: 1 1 / 4 ″ internal thread Automatic flow regulator: 50 l/min Working range: 1.5 to 3 bar Total height: 2330 mm Pull rod length: 700 mm Projection: 625 mm Emergency body shower for floor mounting Delivery incl. information sign for emergency body shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC film, 150 x 150 mm.
Product Detail

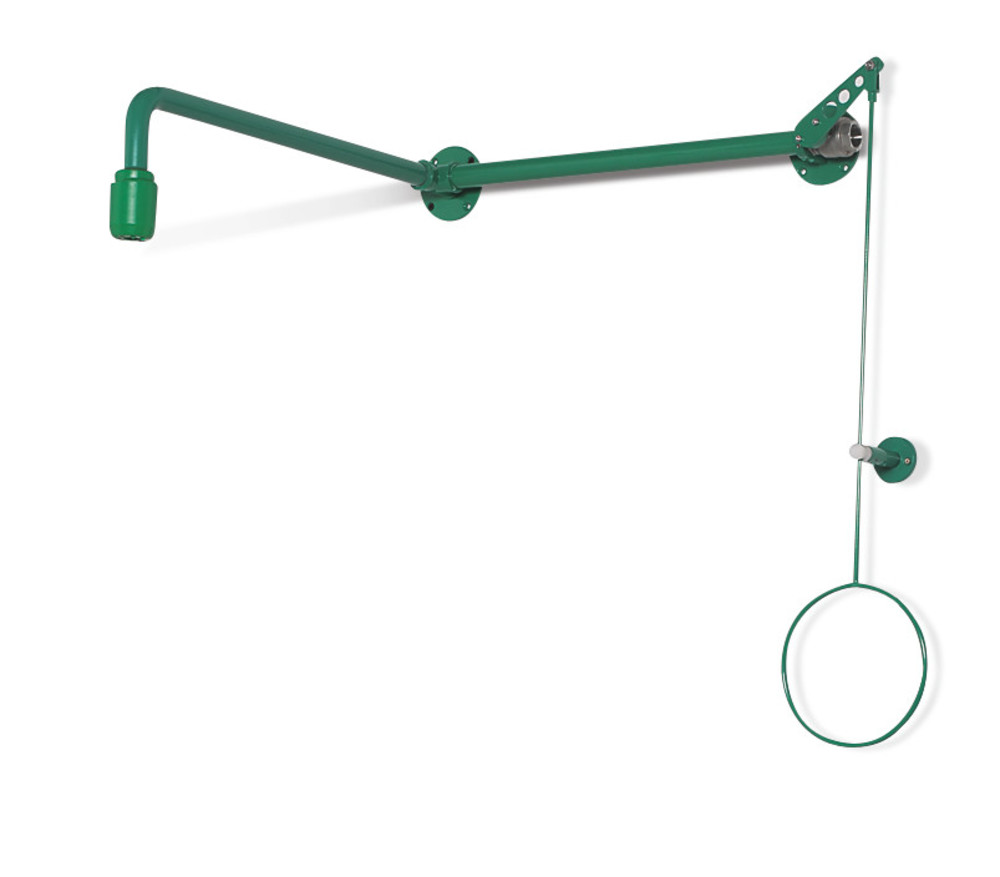

DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN 15154-5:2019 and ANSI Z 358.1-2009. Application through wall flange, surface-mounted supply line Stable design due to robust brass body Chemical-resistant powder coating Large maintenance-free ball valve for high flow rates (60 l/min at 1.5 bar) Application range from 1 to 10 bar water pressure Triggered through non-self-closing pull-rod valve Large, easy-to-operate pull rod Self-emptying high-performance shower head (prevents build-up of bacteria and calcification) Adhesive information label for body shower, 150 x 150 mm Emergency body shower Wall-mounted Water connection ¾″ internal thread Overhang 625 mm Pull rod length 700 mm
Product Detail
DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN EN 15154-5:2019 and ANSI Z 358.1-2014. Application through wall flange, surface-mounted supply line Stable design due to robust brass body Chemical-resistant powder coating Large maintenance-free ball valve for high flow rates (50 l/min at 1.5 bar) 1.5 to 3 bar water pressure application range Triggered through non-self-closing pull rod valve Large, easy-to-operate pull rod Self-emptying high-power shower head (prevents build-up of bacteria and calcification) Length: 700 mm Projection: 630 mm Attachment height: 2345 mm (±100 mm) Pull rod length: 500 mm Emergency body shower Over-door-mounted with pull rod for redirection Pull rod can be mounted either to right or left of the door. Delivery incl. self-adhesive information sign for body shower according to DIN EN ISO 7010 and ASR A1.3, 150 x 150 mm.
