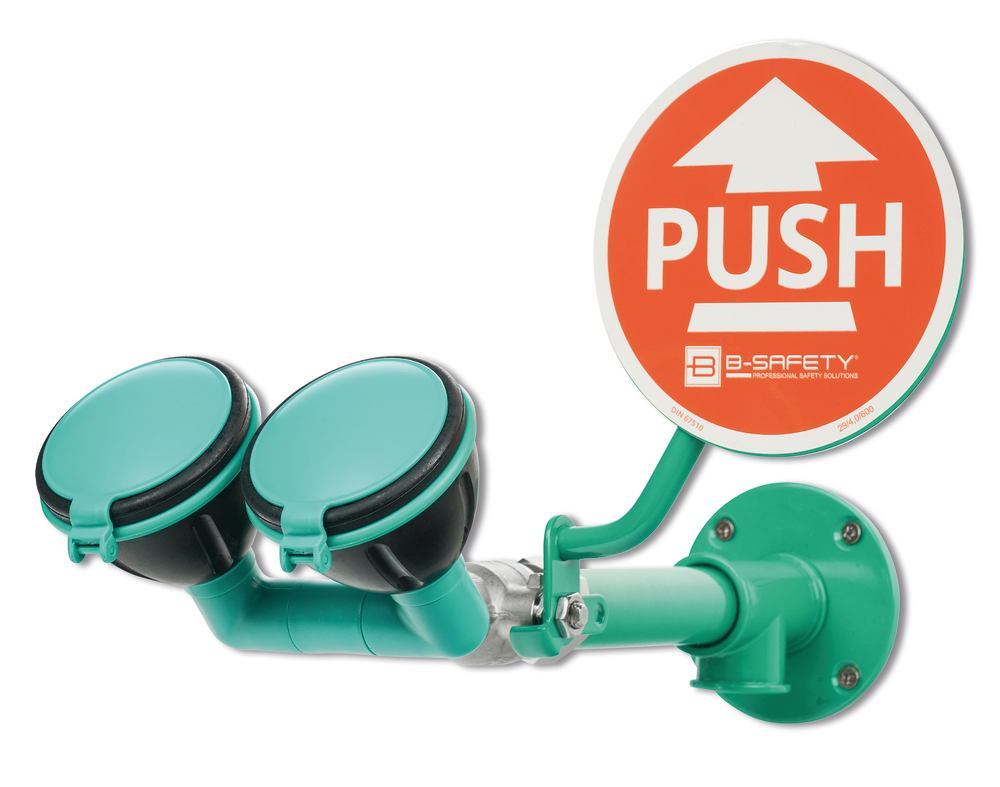

DIN-DVGW tested and approved. Acc. to DIN EN 15154-2:2006 and ANSI Z358.1-2014. Two shower heads angled at 45°, distributor fork and wall flange (water connection ¾″ internal thread) made of brass with chemical-resistant green powder coating. With a large release lever of 130 mm in length, with a large signal “PUSH”, photoluminescent as per DIN 67510. Maintenance-free ball valve, 90° operation, made of stainless steel, not self-closing. Flow rate 14–16 l/min at a minimum operating pressure of 1 bar. Dimensions: W (incl. lever) 330 x D 330 mm. With rubber sleeves that protect against injuries Dust cover caps that open automatically upon actuation Integrated flow regulator for constant water jet, even with fluctuating pressure Extremely wide-spraying shower heads ensure water distribution over a large area Large holes in the shower heads protect against calcification Shower heads can be easily removed for maintenance purposes Adhesive information label for eye shower, 150 x 150 mm Eye shower for surface-type wall mounting
