Material: PE electrically conductive, silicone stopper. Accessories for SICCO glove boxes Cable lead-in With union nut. Slotted stopper made of black silicone for a tight seal. Includes hexagon wrench and fixing screws. For feeding through cables or hard-walled tubing with outer Ø 0.1 to max. 10 mm. Installation in panes with a thickness of 2-4 mm, connection hole Ø 74.5 mm.
Product Detail
Material: PMMA, aluminium, PE, aluminium frame, acrylic glass panes, PE base. Safe working under normal pressure with sensitive mixtures of substances in an isolated atmosphere. The gassing connections in the working area enable work to be carried out in an atmosphere displaced with nitrogen or noble gas. Robust and lightweight aluminium construction All-round visibility, glare-free Slip-resistant rubber feet Front with two access openings Two cable lead-ins for electrical consumers on the rear (top right/left) Large door opening Working area with connections for gassing and ventilation Glove box SICCO without airlock PMMA for extraction Integrated connection piece for exhaust air and polyethylene lid. Iris port openings and cable lead-ins made of polyethylene and silicone. There are two cross-slotted silicone discs in each access opening and in each cable lead-in. These are mounted offset so that the overlapping segments close off access when not in use, while at the same time the interior is easily accessible. When the extraction system is switched on, these openings are also used to ensure pressure equalisation through air flowing in. The connection to the extraction system is made via the integrated connection piece on the top. When working without extraction, the passage can be closed with a lid. Stepped connection pieces Ø 100, 120, 160, 180 mm Access openings (iris port) Ø 170 mm Hinged lid opening: 850 x 425 mm Temperature resistance: -20 to +70 °C Delivery without gloves and without tubing.
Product Detail

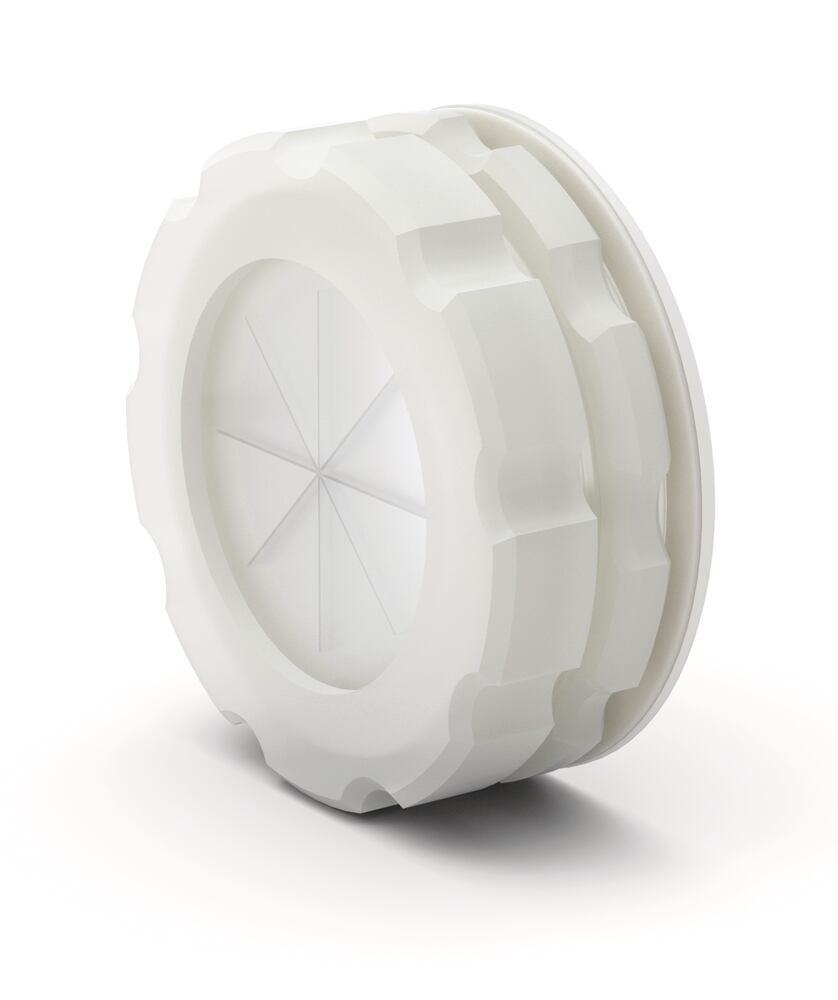

Material: PE, silicone. Accessories for SICCO glove boxes Iris port openings With O-ring seal and slotted silicone discs. The crosswise slots of the two silicone discs are installed offset so that the interior is easy to access. At the same time, the overlapping segments seal off the glove box when not in use. The iris port openings can be fitted to any SICCO glove box instead of the gloves.
Product Detail
Material: PP, silicone. Accessories for SICCO glove boxes Cable lead-in With union nut. Slotted stopper made of black silicone for a tight seal. Includes hexagon wrench and fixing screws. For feeding through cables or hard-walled tubing with outer Ø 0.1 to max. 10 mm. Installation in panes with a thickness of 2-4 mm, connection hole Ø 74.5 mm.
Product Detail

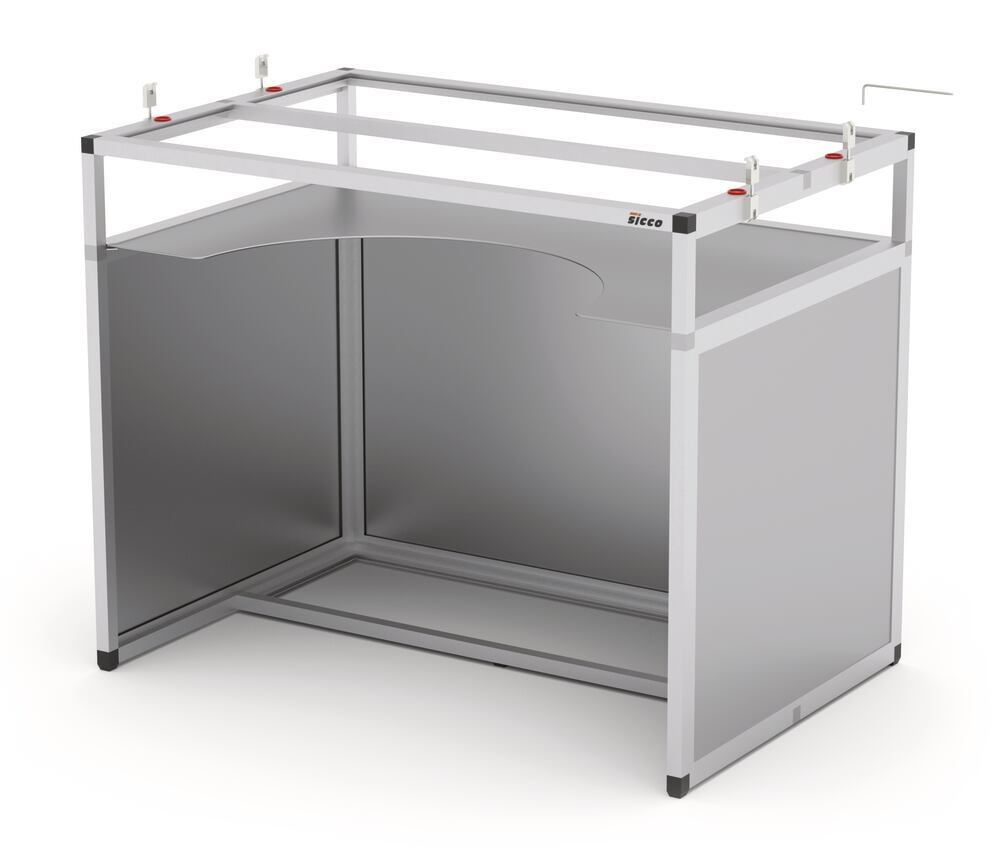

Material: aluminium. Aluminium frame with side panels and rear panel made of aluminium sheet, including four desiccator connectors. The table surface corresponds to the base area of the SICCO glove box. Additional large storage area under the glove box. The frame is supplied fully assembled. The glove box must be secured against slipping with desiccator connectors. Base frame for SICCO glove boxes Seated work position
Product Detail

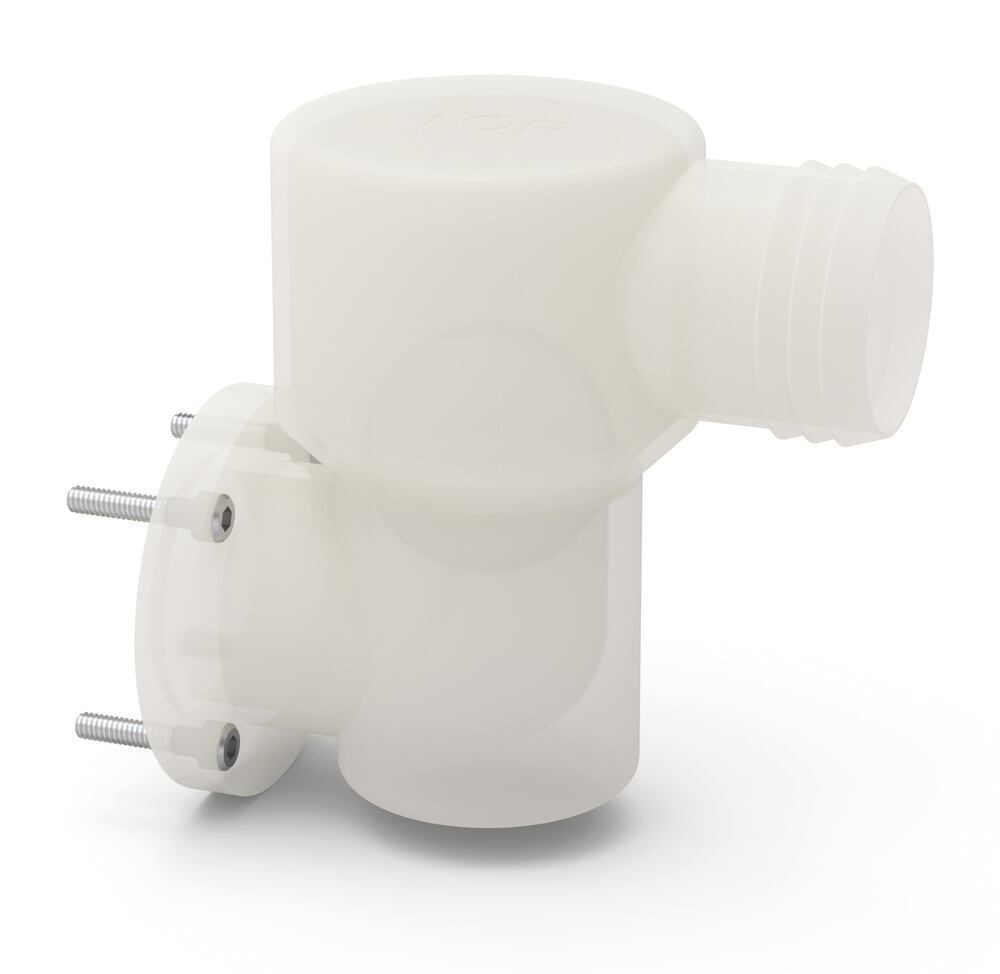

Material: PP. Accessories for SICCO glove boxes Gas-saving valve For direct installation on the cable lead-in of the SICCO glove box. With connection piece for ventilation tube with inner Ø 45 mm. The passage to the venting hose is sealed almost gastight by means of a ball and only opens automatically to equalise pressure in the event of overpressure or underpressure in the glove box. This minimises the flow of ambient air via the ventilation tube and reduces gas consumption during the flushing process and when working in the glove box. Additional space required due to overhang: approx. 130 mm. Includes hexagon wrench and four fixing screws.
Product Detail
Material: PP, silicone. Accessories for SICCO glove boxes Iris port cable lead-in Two cross-slotted, offset silicone discs. For feeding through cables, tubing and hoses with outer Ø 40 mm. Installation in panes with a thickness of 2-4 mm, connection hole Ø 74.5 mm.
Product Detail

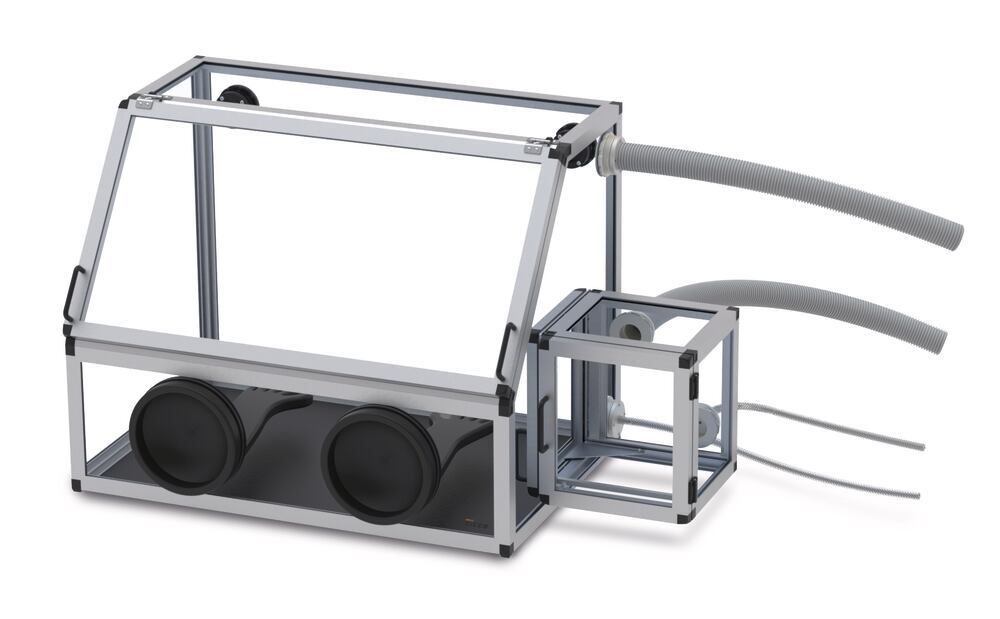

Material: PMMA, aluminium, PE, aluminium frame, acrylic glass panes, PE base. Safe working under normal pressure with sensitive mixtures of substances in an isolated atmosphere. The gassing connections in the working area and the airlock enable work to be carried out in an atmosphere displaced with nitrogen or noble gas. With side airlock for inserting additional products or instruments. Robust and lightweight aluminium construction All-round visibility, glare-free Slip-resistant rubber feet Front with two access openings Two cable lead-ins for electrical consumers on the rear (top right/left) Large lid opening Working area with airlock with two connections each for gassing and ventilation Airlock with two doors Glove box SICCO with airlock PMMA Access openings (glove port) Ø 190 mm Hinged lid opening: 850 x 425 mm Airlock: H x W x D outside: 320 x 260 x 330 mm Airlock: H x W x D inside: 220 x 320 x 275 mm Temperature resistance: -20 to +70 °C Delivery incl. 1 pair of glove box gloves made of natural rubber size 9, tubing for gassing and ventilation (2 x 5 m gassing tube made of PVC, 2 x 5 m ventilation tube made of PE).
Product Detail
Material: aluminium. Aluminium frame with side panels and rear panel made of aluminium sheet, including four desiccator connectors. The table surface corresponds to the base area of the SICCO glove box. Additional large storage area under the glove box. The frame is supplied fully assembled. The glove box must be secured against slipping with desiccator connectors. Base frame for SICCO glove boxes Standing work position The table height is specially designed for standing work.
Product Detail
Material: PC, aluminium, PE, aluminium frame, non-conductive PC panes, non-conductive PE base. Safe working under normal pressure with sensitive mixtures of substances in an isolated atmosphere. The gassing connections in the working area and the airlock enable work to be carried out in an atmosphere displaced with nitrogen or noble gas. With side airlock for inserting additional products or instruments. Robust and lightweight aluminium construction All-round visibility, glare-free Slip-resistant rubber feet Front with two access openings Two cable lead-ins for electrical consumers on the rear (top right/left) Large lid opening Working area with airlock with two connections each for gassing and ventilation Airlock with two doors Glove box SICCO with airlock antistatic, PC-ESD The materials used are conductive. Rear with earthing cable connection (M6 connection thread). Access openings (glove port) Ø 190 mm Hinged lid opening: 850 x 425 mm Airlock: H x W x D outside: 320 x 260 x 330 mm Airlock: H x W x D inside: 220 x 320 x 275 mm Temperature resistance: -20 to +70 °C Delivery incl. 1 pair of glove box gloves made of non-conductive EPDM size 9.75, tubing for gassing and ventilation (2 x 5 m gassing tube made of PVC, 2 x 5 m ventilation tube made of PE).
Product Detail

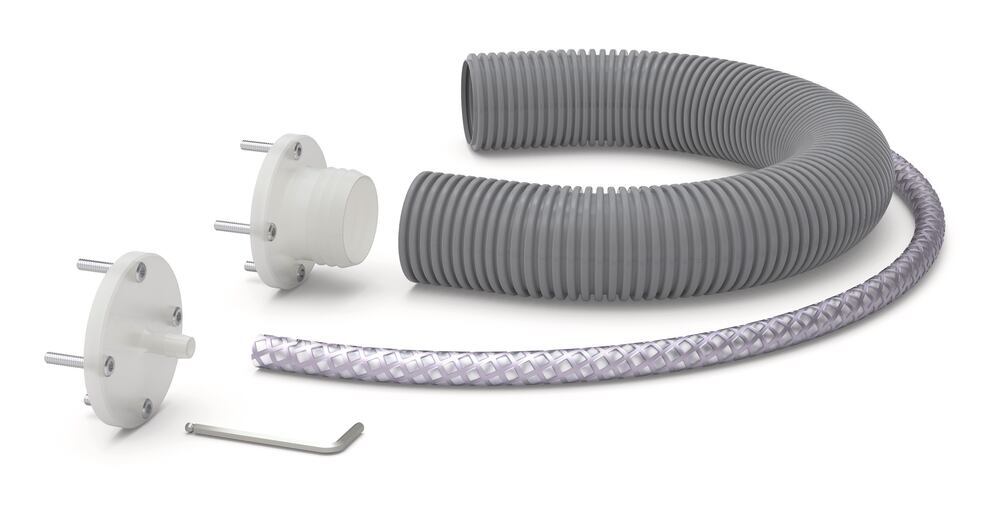

Material: PE, PP, PVC. Accessories for SICCO glove boxes Connection set for gassing Consisting of two discs with olive connectors made of natural PP, 5 m PVC gassing tube with inner Ø 9 mm and 5 m PE ventilation tube with inner Ø 45 mm, including hexagon wrench and fixing screws.
Product Detail

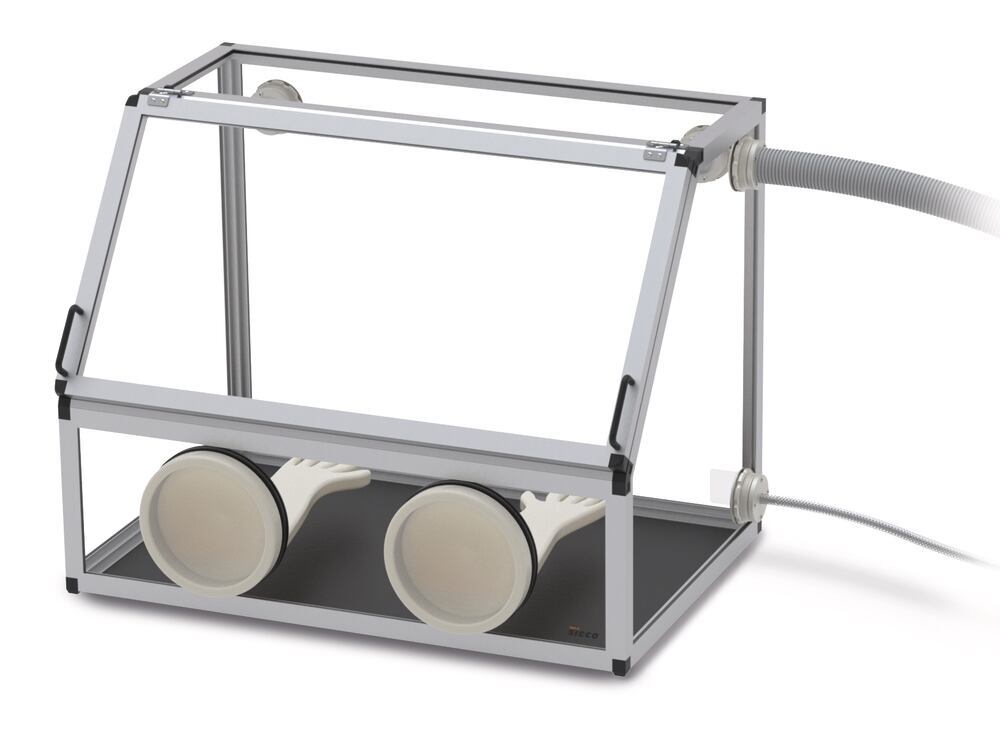

Material: PMMA, aluminium, PE, aluminium frame, acrylic glass panes, PE base. Safe working under normal pressure with sensitive mixtures of substances in an isolated atmosphere. The gassing connections in the working area enable work to be carried out in an atmosphere displaced with nitrogen or noble gas. Robust and lightweight aluminium construction All-round visibility, glare-free Slip-resistant rubber feet Front with two access openings Two cable lead-ins for electrical consumers on the rear (top right/left) Large door opening Working area with connections for gassing and ventilation Glove box SICCO without airlock PMMA Access openings (glove port) Ø 190 mm Hinged lid opening: 850 x 425 mm Temperature resistance: -20 to +70 °C Delivery incl. 1 pair of glove box gloves made of natural rubber size 9, tubing for gassing and ventilation (1 x 5 m gassing tube made of PVC, 1 x 5 m ventilation tube made of PE)
