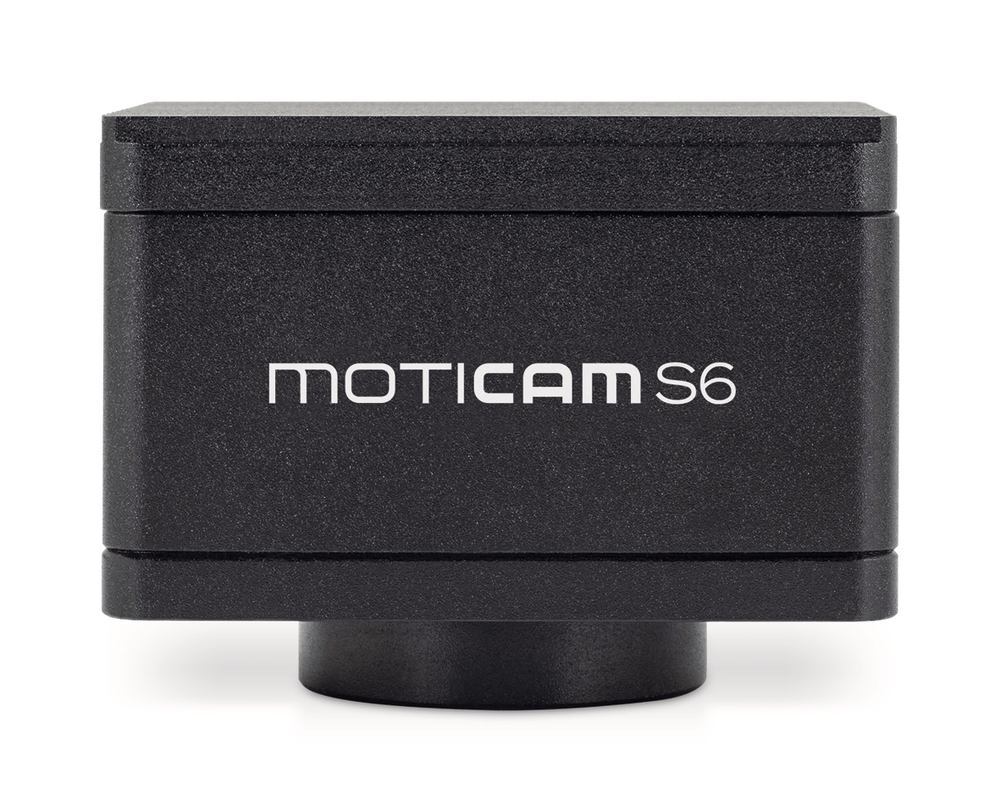

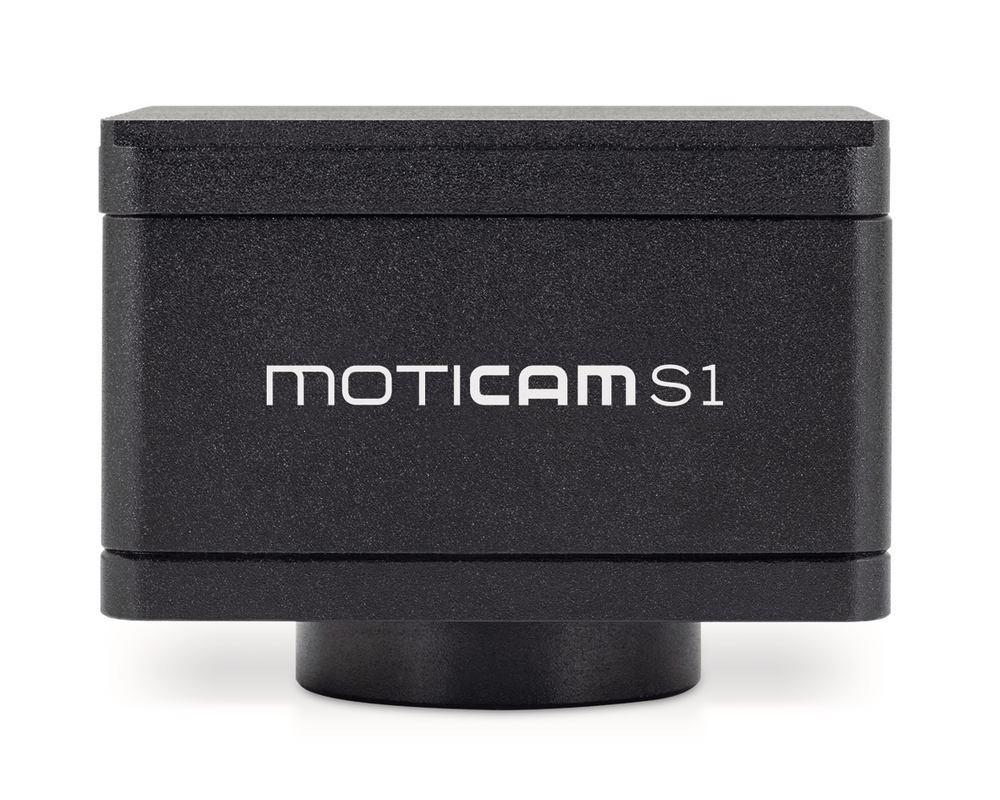

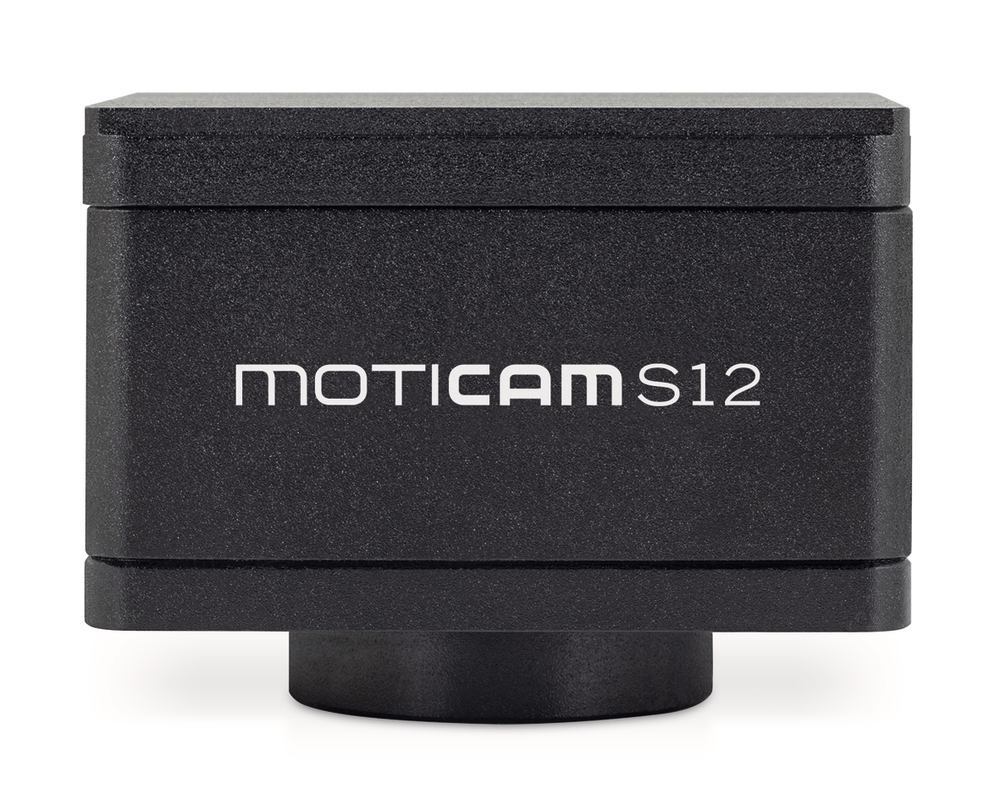

For diverse applications in day-to-day microscopic work in which data processing is carried out directly on the PC. Can be mounted via C-mount connection on the third tube of the microscope; the microscope manufacturer provides appropriate C-mount adapters New sCMOS technology for high frame rates and optimal image quality; maximum sensitivity for applications with low light output Faster data reading for recording rapid phenomena via USB 3.1 gen.1 connection; USB 2.0 compatibility for older computers ensured Supported operating systems: Windows XP and later versions, Apple Mac OSX and Linux Minimum system requirements: 2 GHz dual-core, 2 GB RAM, min. 512 MB video memory Software functions: still image and video, live and still image measurements, image enhancement, white balance, automatic and manual exposure time, individual calibration Microscope camera Moticam S series Delivery incl. CS ring, USB 3.1 cable, Motic 4-point calibration, Motic Images Plus 3.0 software.
Product Detail

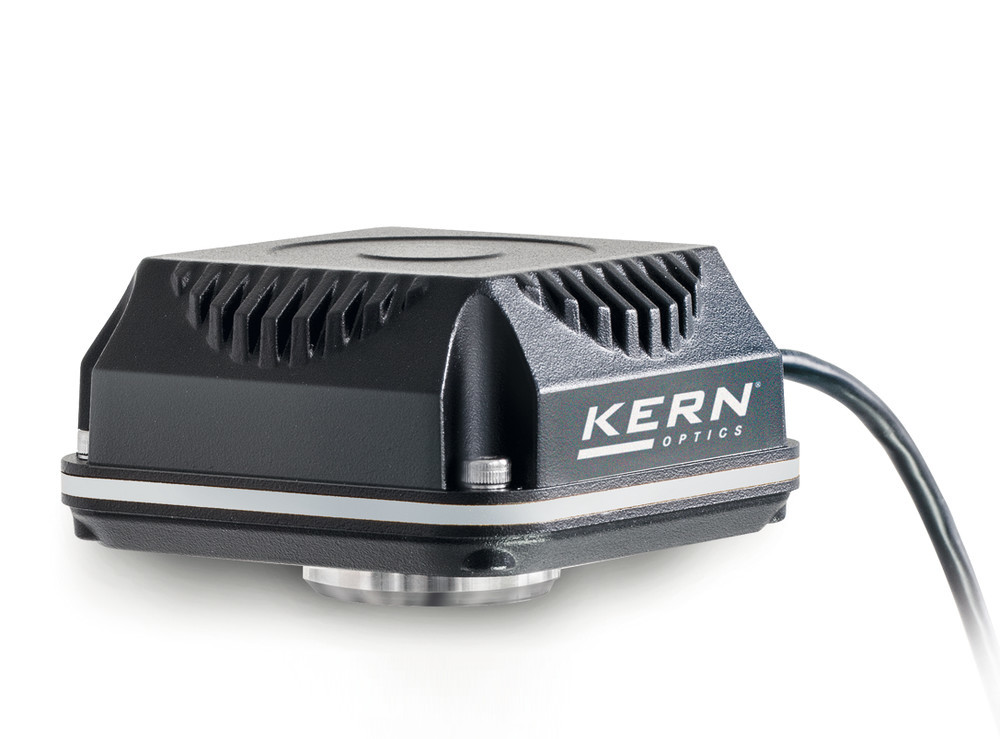

For conventional microscope use, and for demanding applications (e.g. darkfield, phase contrast and fluorescence). Fast and clear image transmission with proven CMOS technology USB 2.0 data transmission adequate for static samples. USB 3.0 version recommended for living samples (faster transmission without stalling) Multilingual software available. With the streaming, photo snapshot and video functions. Various measuring functions such as distance, surface and angular measurement, as well as manual counting possible. Image processing and documentation functions included Mounting possible either via C-mount connection on the third tube of the microscope or via the eyepiece Suitable C-mount adapter is provided by the microscope manufacturer. Eyepiece adapter (Ø 23.2 mm) and adapter rings (Ø 30.0 mm and 30.5 mm) are also supplied Supports the following operating systems: Win 7, Win 8, Win 10, Win 11 Microscope camera ODC series Delivery incl. USB cable, eyepiece adapter, rings and stage micrometer for calibrating the software. Please download the software free of charge.
Product Detail
For diverse applications in day-to-day microscopic work in which data processing is carried out directly on the PC. Can be mounted via C-mount connection on the third tube of the microscope; the microscope manufacturer provides appropriate C-mount adapters New sCMOS technology for high frame rates and optimal image quality; maximum sensitivity for applications with low light output Faster data reading for recording rapid phenomena via USB 3.1 gen.1 connection; USB 2.0 compatibility for older computers ensured Supported operating systems: Windows XP and later versions, Apple Mac OSX and Linux Minimum system requirements: 2 GHz dual-core, 2 GB RAM, min. 512 MB video memory Software functions: still image and video, live and still image measurements, image enhancement, white balance, automatic and manual exposure time, individual calibration Microscope camera Moticam S series Delivery incl. CS ring, USB 3.1 cable, Motic 4-point calibration, Motic Images Plus 3.0 software.
Product Detail
For conventional microscope use, and for demanding applications (e.g. darkfield, phase contrast and fluorescence). Fast and clear image transmission with proven CMOS technology USB 2.0 data transmission adequate for static samples. USB 3.0 version recommended for living samples (faster transmission without stalling) Multilingual software available. With the streaming, photo snapshot and video functions. Various measuring functions such as distance, surface and angular measurement, as well as manual counting possible. Image processing and documentation functions included Mounting possible either via C-mount connection on the third tube of the microscope or via the eyepiece Suitable C-mount adapter is provided by the microscope manufacturer. Eyepiece adapter (Ø 23.2 mm) and adapter rings (Ø 30.0 mm and 30.5 mm) are also supplied Supports the following operating systems: Win 7, Win 8, Win 10, Win 11 Microscope camera ODC series Delivery incl. USB cable, eyepiece adapter, rings and stage micrometer for calibrating the software. Please download the software free of charge.
Product Detail
For conventional microscope use, and for demanding applications (e.g. darkfield, phase contrast and fluorescence). Fast and clear image transmission with proven CMOS technology USB 2.0 data transmission adequate for static samples. USB 3.0 version recommended for living samples (faster transmission without stalling) Multilingual software available. With the streaming, photo snapshot and video functions. Various measuring functions such as distance, surface and angular measurement, as well as manual counting possible. Image processing and documentation functions included Mounting possible either via C-mount connection on the third tube of the microscope or via the eyepiece Suitable C-mount adapter is provided by the microscope manufacturer. Eyepiece adapter (Ø 23.2 mm) and adapter rings (Ø 30.0 mm and 30.5 mm) are also supplied Supports the following operating systems: Win 7, Win 8, Win 10, Win 11 Microscope camera ODC series Delivery incl. USB cable, eyepiece adapter, rings and stage micrometer for calibrating the software. Please download the software free of charge.
Product Detail

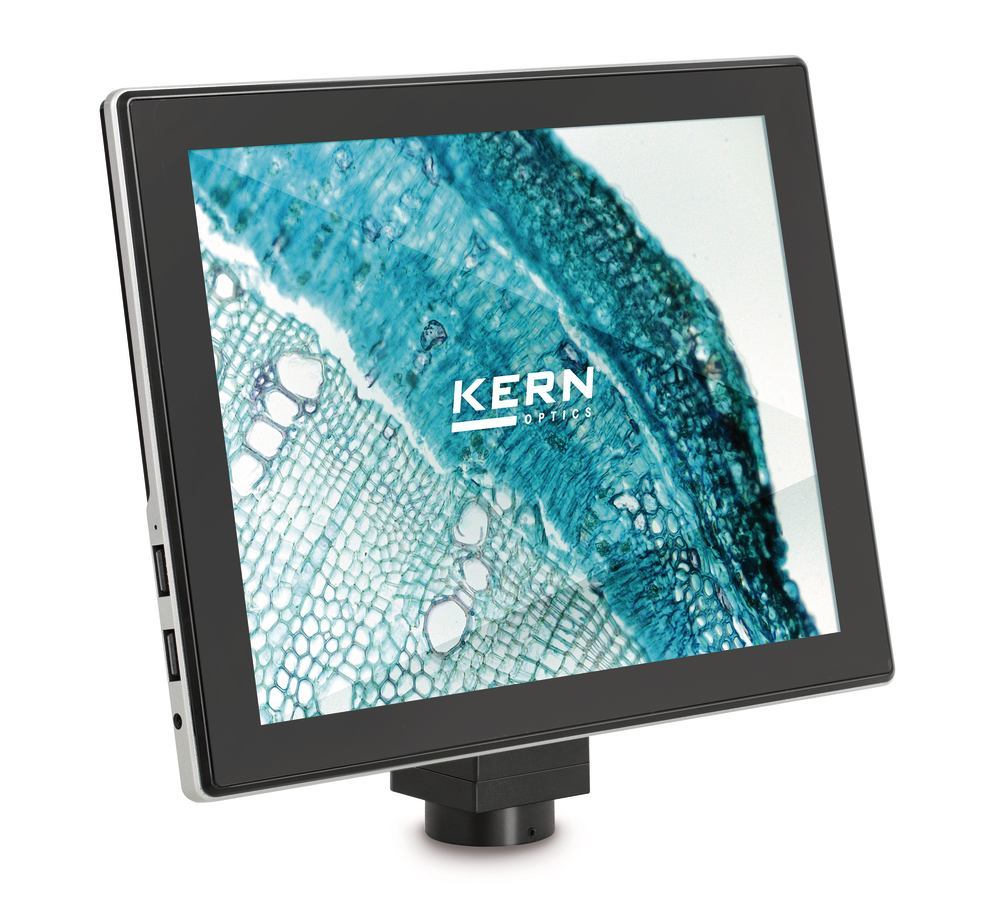

With integrated camera for all trinocular microscopes with C-mount adapter. For simple and direct observation of the sample, including digital documentation. Ideal for students undergoing training, or for demonstration purposes in the laboratory. Capable of live transmission as well as creating images and videos Can perform simple measurements such as distance, surface and angular measurements, as well as manual counting function Efficient operation thanks to automatic white balance and automatic contrast adjustment Integrated interfaces enable additional functions such as data storage on a USB stick or SD card, connecting a USB mouse, transmission of the live image to an external screen via HDMI and transmission of saved data to external recipients via WiFi Operating system: Android 5.1 Tablet camera ODC 241 Delivery incl. software (pre-installed) and mains adapter.
Product Detail
For diverse applications in day-to-day microscopic work in which data processing is carried out directly on the PC. Can be mounted via C-mount connection on the third tube of the microscope; the microscope manufacturer provides appropriate C-mount adapters New sCMOS technology for high frame rates and optimal image quality; maximum sensitivity for applications with low light output Faster data reading for recording rapid phenomena via USB 3.1 gen.1 connection; USB 2.0 compatibility for older computers ensured Supported operating systems: Windows XP and later versions, Apple Mac OSX and Linux Minimum system requirements: 2 GHz dual-core, 2 GB RAM, min. 512 MB video memory Software functions: still image and video, live and still image measurements, image enhancement, white balance, automatic and manual exposure time, individual calibration Microscope camera Moticam S series Delivery incl. CS ring, USB 3.1 cable, Motic 4-point calibration, Motic Images Plus 3.0 software.
Product Detail
For diverse applications in day-to-day microscopic work in which data processing is carried out directly on the PC. Can be mounted via C-mount connection on the third tube of the microscope; the microscope manufacturer provides appropriate C-mount adapters New sCMOS technology for high frame rates and optimal image quality; maximum sensitivity for applications with low light output Faster data reading for recording rapid phenomena via USB 3.1 gen.1 connection; USB 2.0 compatibility for older computers ensured Supported operating systems: Windows XP and later versions, Apple Mac OSX and Linux Minimum system requirements: 2 GHz dual-core, 2 GB RAM, min. 512 MB video memory Software functions: still image and video, live and still image measurements, image enhancement, white balance, automatic and manual exposure time, individual calibration Microscope camera Moticam S series Delivery incl. CS ring, USB 3.1 cable, Motic 4-point calibration, Motic Images Plus 3.0 software.
Product Detail
For diverse applications in day-to-day microscopic work in which data processing is carried out directly on the PC. Can be mounted via C-mount connection on the third tube of the microscope; the microscope manufacturer provides appropriate C-mount adapters New sCMOS technology for high frame rates and optimal image quality; maximum sensitivity for applications with low light output Faster data reading for recording rapid phenomena via USB 3.1 gen.1 connection; USB 2.0 compatibility for older computers ensured Supported operating systems: Windows XP and later versions, Apple Mac OSX and Linux Minimum system requirements: 2 GHz dual-core, 2 GB RAM, min. 512 MB video memory Software functions: still image and video, live and still image measurements, image enhancement, white balance, automatic and manual exposure time, individual calibration Microscope camera Moticam S series Delivery incl. CS ring, USB 3.1 cable, Motic 4-point calibration, Motic Images Plus 3.0 software.
