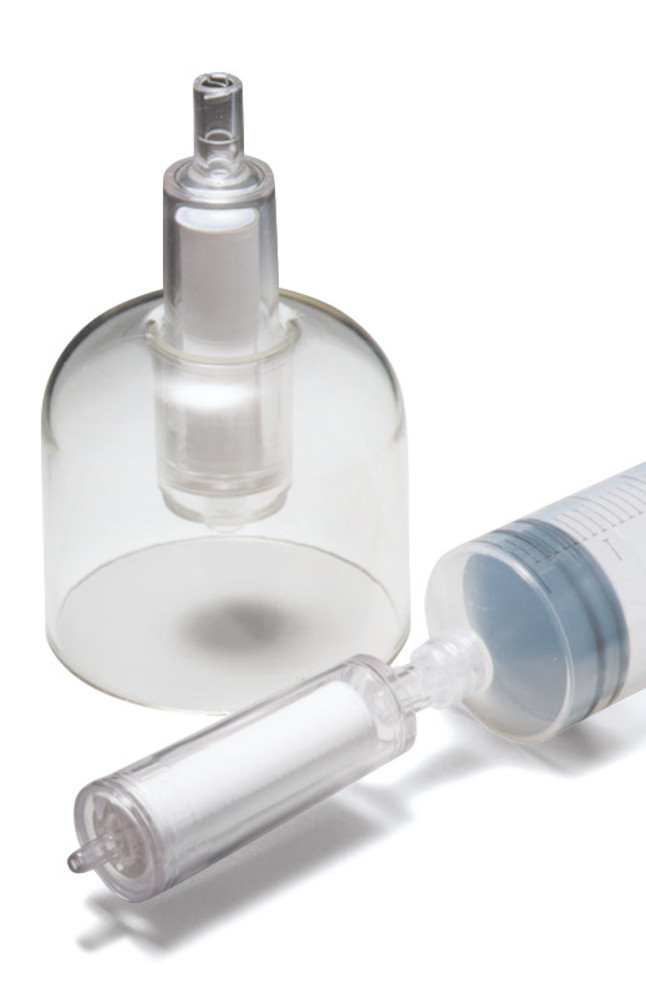

Packaged to preserve integrity during storage and transportation, the Filter Units Sterivex™ Durapore ® (PVDF) Membrane, With Filling Bell, 0,22 µm, offers a sterile filtration solution for aqueous liquids. This unit, designed within the 'Filter units and inline filters' category, features a PVDF membrane with an ultra-low protein binding property. It comes equipped with a filling bell to minimize contamination risks and operates effectively with both syringe pumps and hose pumps. The unit boasts a 0.22 µm pore size, a 10 cm² filtration area, and a maximum operating pressure of 3 bar. Its Eastar ® housing ensures durability, while its female Luer Lock inlet and male Luer Lock outlet connections provide easy connectivity. The unit's dead volume is less than 200 µl, and it can process sample volumes up to 1000 ml. The maximum recommended application temperature is 45 °C.

• Category: Filter units and inline filters
• Housing material: Eastar ®
• Membrane material: PVDF
• Sample volume: 1000 ml
• Filtration area: 10 cm²
• Sterility: Sterile
• Pore size: 0,22 µm
• Inlet connection: female Luer Lock
• Max. operating pressure: 3 bar
• Max. application temperature: 45 °C
• Dead volume: <200 µl
• Outlet connection: male Luer Lock
• Type: With filling bell
