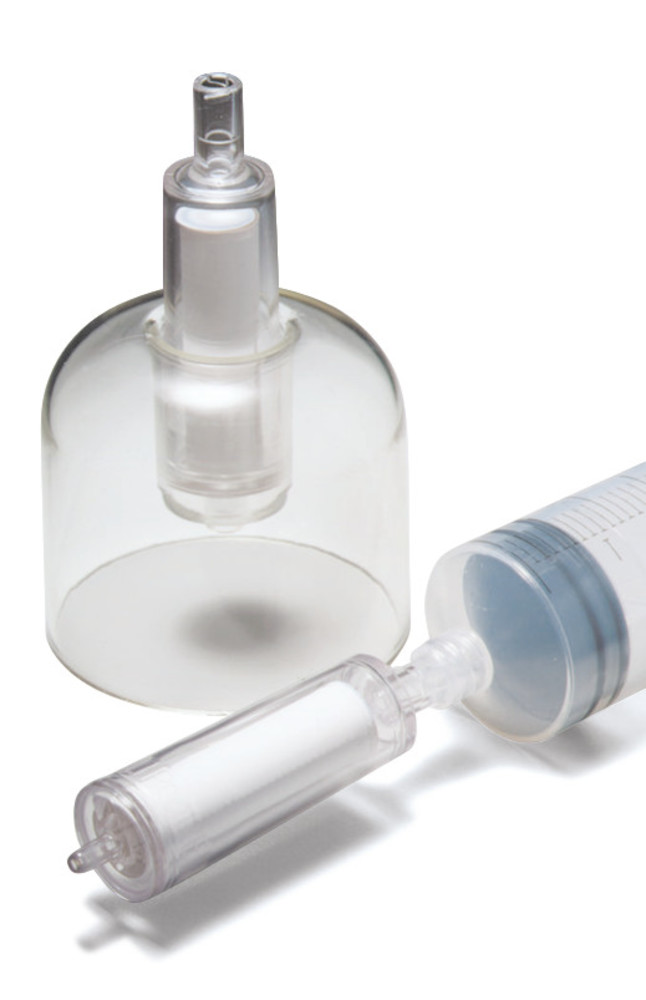

Filter units Sterivex™ Durapore ® (PVDF) membrane, Without filling bell, 0,45 µm

Supplied in compliance with established chemical handling standards, the Filter Units Sterivex™ Durapore ® (PVDF) Membrane, Without Filling Bell, 0,45 µm, are designed for the sterile filtration of aqueous liquids. These filter units can be operated using syringe pumps or hose pumps. They feature an Eastar ® housing material and PVDF membrane, which exhibits extremely low protein binding. The filter units have a pore size of 0,45 µm, a dead volume less than 200 µl, and a filtration area of 10 cm². The maximum operating pressure is 3 bar, while the maximum application temperature is 45 °C. The filter units are available without a filling bell to reduce the risk of contamination during the filtration process.

• Category: Filter units and inline filters
• Outlet connection: male Luer Lock
• Type: Without filling bell
• Membrane material: PVDF
• Inlet connection: female Luer Lock
• Sample volume: 1000 ml
• Max. operating pressure: 3 bar
• Sterility: Sterile
• Housing material: Eastar ®
• Dead volume: <200 µl
• Filtration area: 10 cm²
• Max. application temperature: 45 °C
• Pore size: 0,45 µm
