Order number: ATT2.1
Part number: AC100018111
| Name | Value | |
|---|---|---|
| Head | : | Can be rotated 360° |
| Tube | : | monocular |

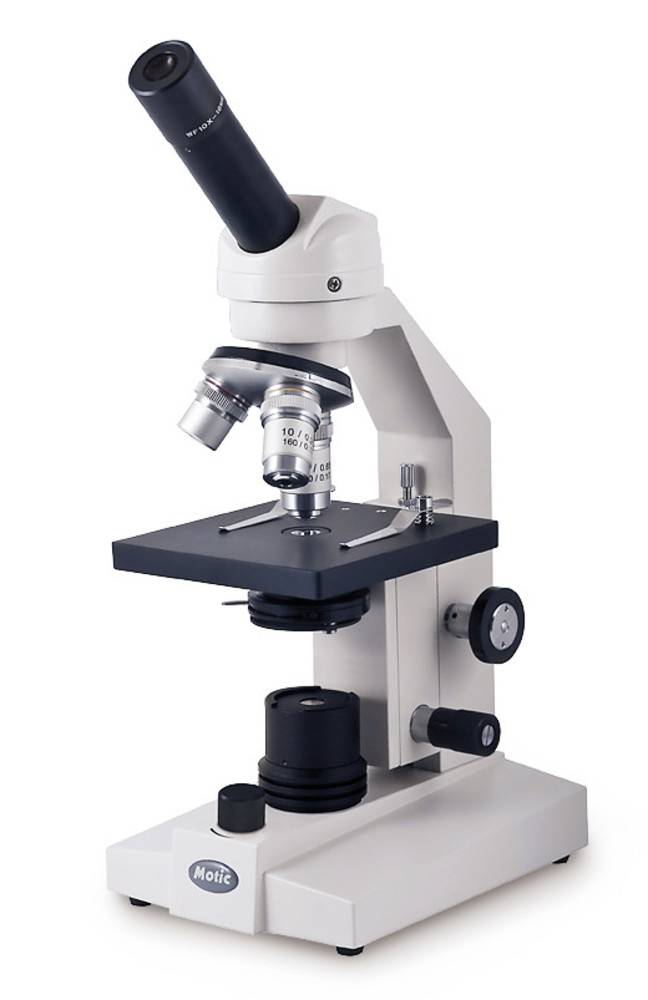

| Type | : | SFC-100F LED |
| Lenses | : | achromatic |
| Optics | : | infinity |
| Condenser | : | N.A. 0.65 with iris diaphragm and filter holder |
| Light source | : | LED |
| Power supply | : | powered by the mains and batteries |
| Field of view | : | 18 mm |
| Image focusing | : | coarse and fine focus |
| Lens arrangement | : | 3-way, tilted forwards |
| Mains connection | : | 100-240 V |
| Microscope stage | : | 120 x 110 mm, with 2 spring clamps |
| Lens magnification | : | - 4x/N.A. 0.10 - 10x/N.A. 0.25 - 40x (spring)/N.A. 0.65 |
| Magnification type | : | flush |
| Angular observation | : | 45 ° |
| Total magnification | : | 40x, 100x, 400x |
| Ocular magnification | : | widefield 10x |
