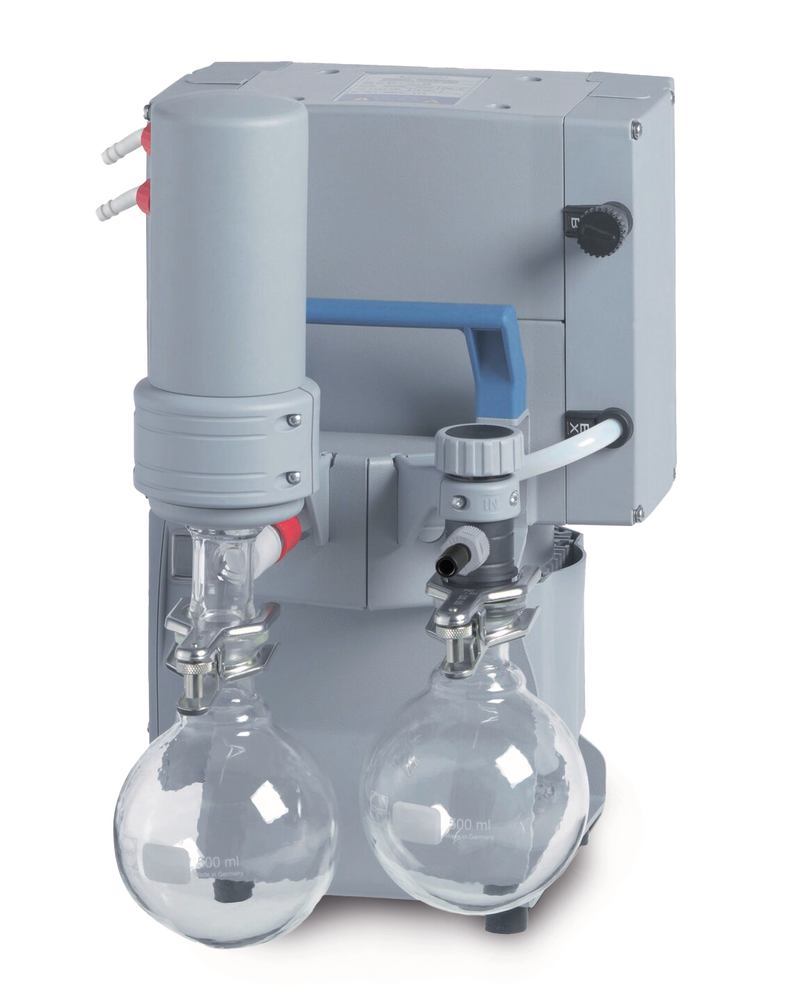

Developed to align with modern chemical standards, the Vacuum System Md 4 Series Md 4C NT + AK + EC falls under the category of advanced vacuum technology solutions. This particular model boasts exceptional chemical and condensate resistance, making it ideal for use in vacuum concentrators, rotary evaporators, and vacuum drying cabinets. With an impressive delivery rate nearly reaching the lowest end vacuum levels, this system offers remarkable efficiency even when operating with an open gas ballast valve. Its quiet and low-vibration operation further enhances its appeal, ensuring minimal disruption during laboratory processes. The system comes equipped with a suction-side separator (AK) and a pressure-side emission condenser (EC), both designed to keep back particles and liquid droplets while effectively recovering solvents for cost-effective re-use and promoting environmental protection. Weighing just 17.3 kg and measuring

• Category: Vacuum systems
• Materials in contact with media: ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: FFKM
• Type: MD 4C NT +AK+EC
• End vacuum (abs.): 1,5 mbar
• Pump type: MD 4C NT
• Inlet connection: for hose inner Ø 8 mm
• Overpressure: 0,1 bar
• Outlet connection: for hose inner Ø 8 mm
• L x W x H: 326 x 243 x 402 mm
• Suction capacity (l/min): 57.0
• End vacuum abs. with gas ballast: 3 mbar
• Mains connection: 230 V, 50/60 Hz
• System: MD 4C NT +AK+EC
• Motor power: 250 W
• Ambient temperature: +10 - +40 °C
• Weight: 17,3 kg
